Sanus Systems EFsat Assembly Instructions Manual

Hide thumbs Also See for EFsat:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Assembly Instructions for Model: EFsat
Thank you for choosing the Sanus Systems Model EFsat. Every effort has been made
to ensure that your Sanus Systems furniture is perfect. If you have questions or feel that
there is a problem of any kind, please contact us at 800-359-5520 or at www.sanus.com.
We can quickly help with any issues regarding assembly or missing parts. Replacement
parts for Sanus Systems products purchased through authorized dealers will be shipped
directly to you.

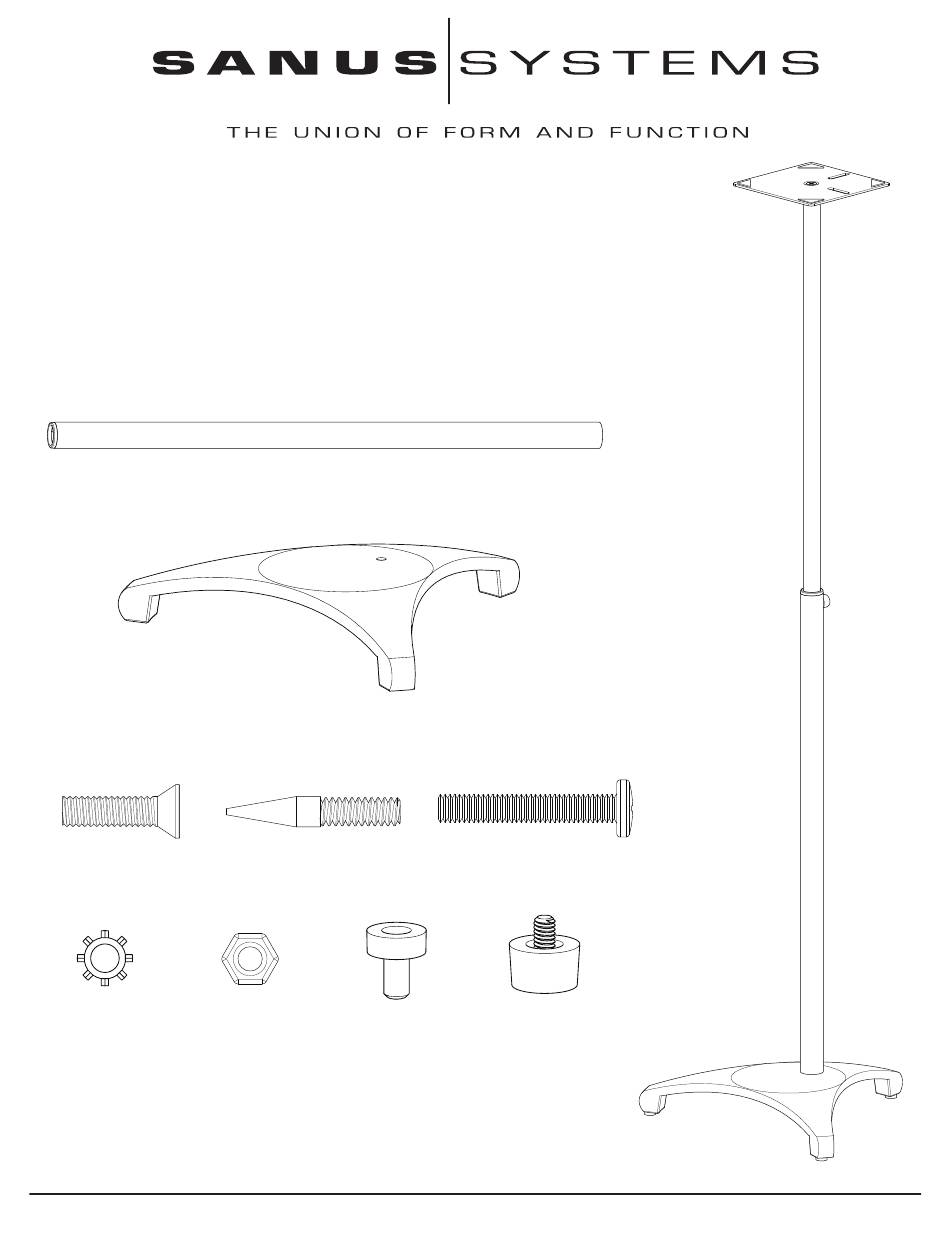

Supplied Parts List - Foundation: (All threaded fasteners are shown full scale.)
Pillar Assembly - A
Qty. 2
Base - B
Qty. 2
Flat Head Screw - C
Pan Head Screw - E
Carpet Spike - D
Qty. 2
Qty. 2
Qty. 6
Lock Washer - F
Nut - G
Rubber Foot - H
Tension Knob - I
Qty. 2
Qty. 6
Qty. 6
Qty. 2
2221 Hwy 36 West, Saint Paul, MN 55113 04.10.06 (100012)
Sanus Systems
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
