Summary of Contents for Briteq BTX-SATURN
-
Page 3: Before Use

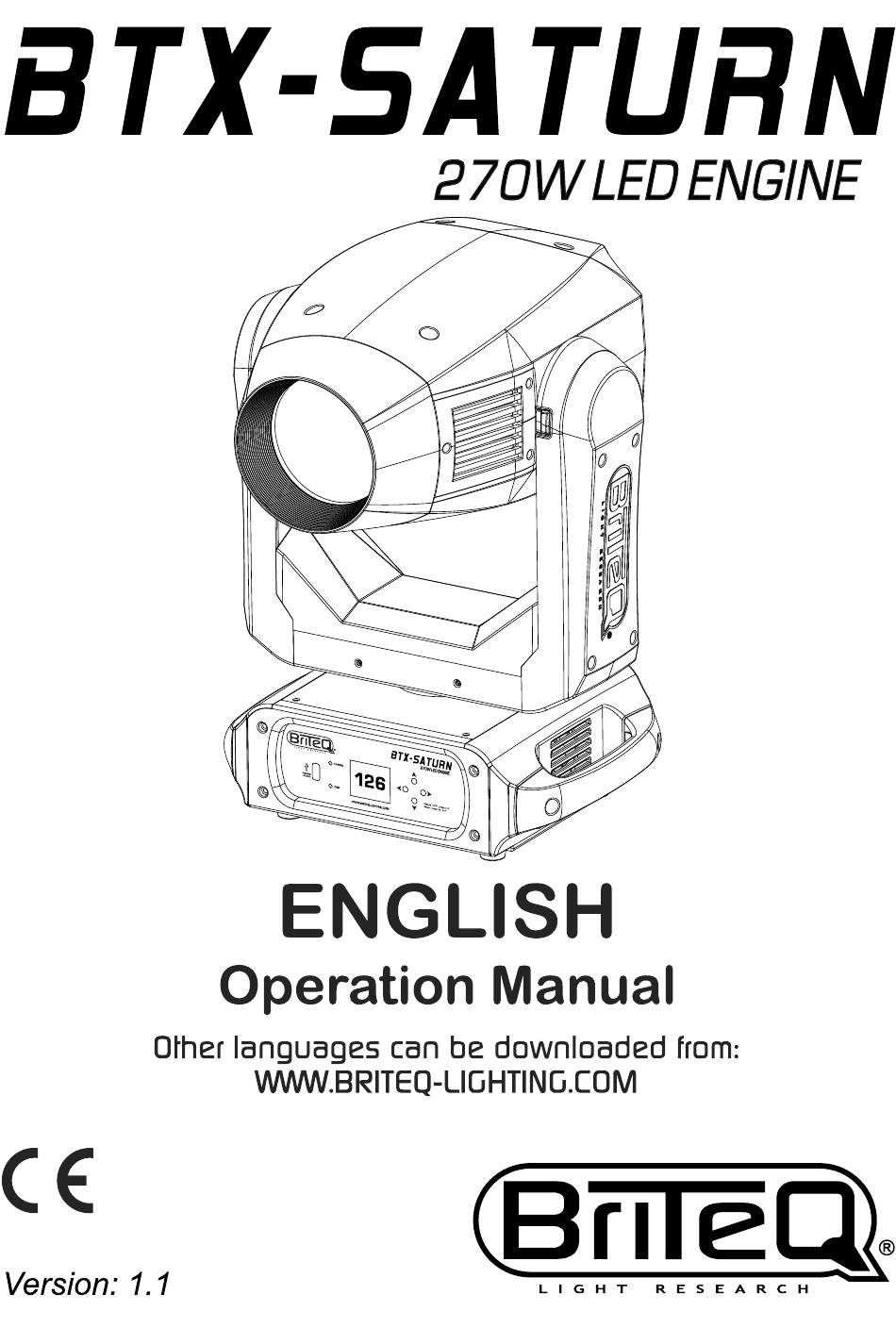

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • High efficiency moving head projector based on a powerful 270W LED engine! •... - Page 4 • Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/16 BTX-SATURN ®...
- Page 5 13. TILT LOCK : locks and releases the tilt axis every 45°. 14. USB-input: only used for software updates, see further in this user manual. !!! IMPORTANT: the arm must be unlocked before operation !!! – BRITEQ 3/16 BTX-SATURN ®...
-
Page 6: Overhead Rigging
Used to set the desired channel mode. (on RDM-compatible controllers this option can be set remotely) • Press the ▲/▼ buttons until the desired function is showing on the display. • Press the ► button: the values can be changed • Use ▲/▼ buttons to select the desired mode: BRITEQ 4/16 BTX-SATURN ®... - Page 7 Led / processor A, B, C, D, E FIXTURE Select the firmware INFORMATION USB Upgrading File on your USB key Firmware Version Processor A, B, C, D, E Pan & Tilt Yes/No RESET Effect Yes/No FUNCTION Yes/No SPECIAL Factory Settings Yes/No FUNCTION BRITEQ 5/16 BTX-SATURN ®...
-
Page 8: Fixture Settings
Press the ▲/▼ buttons until the desired function is showing on the display. • Press the ► button: the values can be changed. • Once you have the desired curve, press the ► button to save it. BRITEQ 6/16 BTX-SATURN ®... -
Page 9: Fixture Test
• Press the ▲/▼ buttons until the desired function is showing on the display. • Press the ► button: the automatic test sequence will begin. When the sequence is over, the display to confirm. comes back to the FIXTURE TEST menu. BRITEQ 7/16 BTX-SATURN ®... -
Page 10: Fixture Information
Used to reset color and beam functions only. • Press the ▲/▼ buttons until the desired function is showing on the display. • Press the ► button: select Yes to reset the effect section. • Press the ► button to confirm. BRITEQ 8/16 BTX-SATURN ®... -
Page 11: Calibration Menu
• Press the ► button to select the feature to be calibrated. • Use ▲/▼ buttons to adjust the value between -128 and 127. • Press the ► button to confirm the changes. • Press the ◄ button to exit the hidden menu. BRITEQ 9/16 BTX-SATURN ®... -
Page 12: Electrical Installation
• The DMX-controller sends out a “discovery command”, all RDM devices respond and send their unique device ID. • The DMX-controller asks each RDM device for some basic data so it knows which devices are connected. The projector will respond: • Device name: BTX-SATURN • ® Manufacturer: Briteq •... - Page 13 CTB 8000K 038-044 CTO 5600K 045-050 CTO 3200K 051-056 Lime Green 057-063 064-127 Color Index Clockwise color wheel rotation (fast → slow) 128-190 191-192 Stop Counter-clockwise color wheel rotation (slow → fast) 193-255 000-255 Cyan 000-255 Magenta BRITEQ 11/16 BTX-SATURN ®...
- Page 14 073-081 Gobo 3 Shaking (slow → fast) 082-090 Gobo 4 Shaking (slow → fast) 091-099 Gobo 5 Shaking (slow → fast) 100-108 Gobo 6 Shaking (slow → fast) 109-117 Gobo 7 Shaking (slow → fast) 118-127 BRITEQ 12/16 BTX-SATURN ®...
- Page 15 000-127 Indexed positioning : 0 - 360 Clockwise prism rotation (fast → slow) 128-190 191-192 Stop rotation Counter-clockwise prism rotation (slow → fast) 193-255 Zoom Narrow → Wide 000-129 Pulse opening effect (fast → slow) 130-154 BRITEQ 13/16 BTX-SATURN ®...
- Page 16 Open Strobe 8:random burst pulse, fast → slow 190-204 205-209 Open Strobe 9:sine wave, fast → slow 210-224 225-229 Open Strobe 10:burst, fast → slow 230-244 245-255 Open 000-255 Dimmer (0 to 100%) 000-255 Dimmer fine BRITEQ 14/16 BTX-SATURN ®...
-
Page 17: Maintenance
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 15/16 BTX-SATURN ®... -
Page 18: Specifications
Installation: 2 quarter turn quick clamps IP-Rating: IP20 Size: See drawing Weight: 22,7 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 16/16 BTX-SATURN ®...
