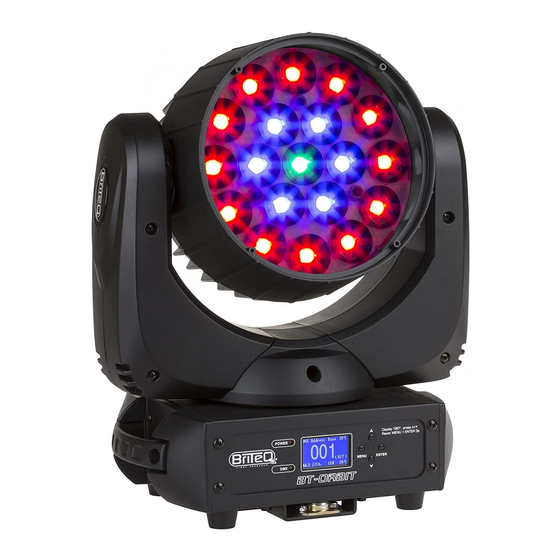

Summary of Contents for Briteq bt-orbit

  • Page 3: Before Use

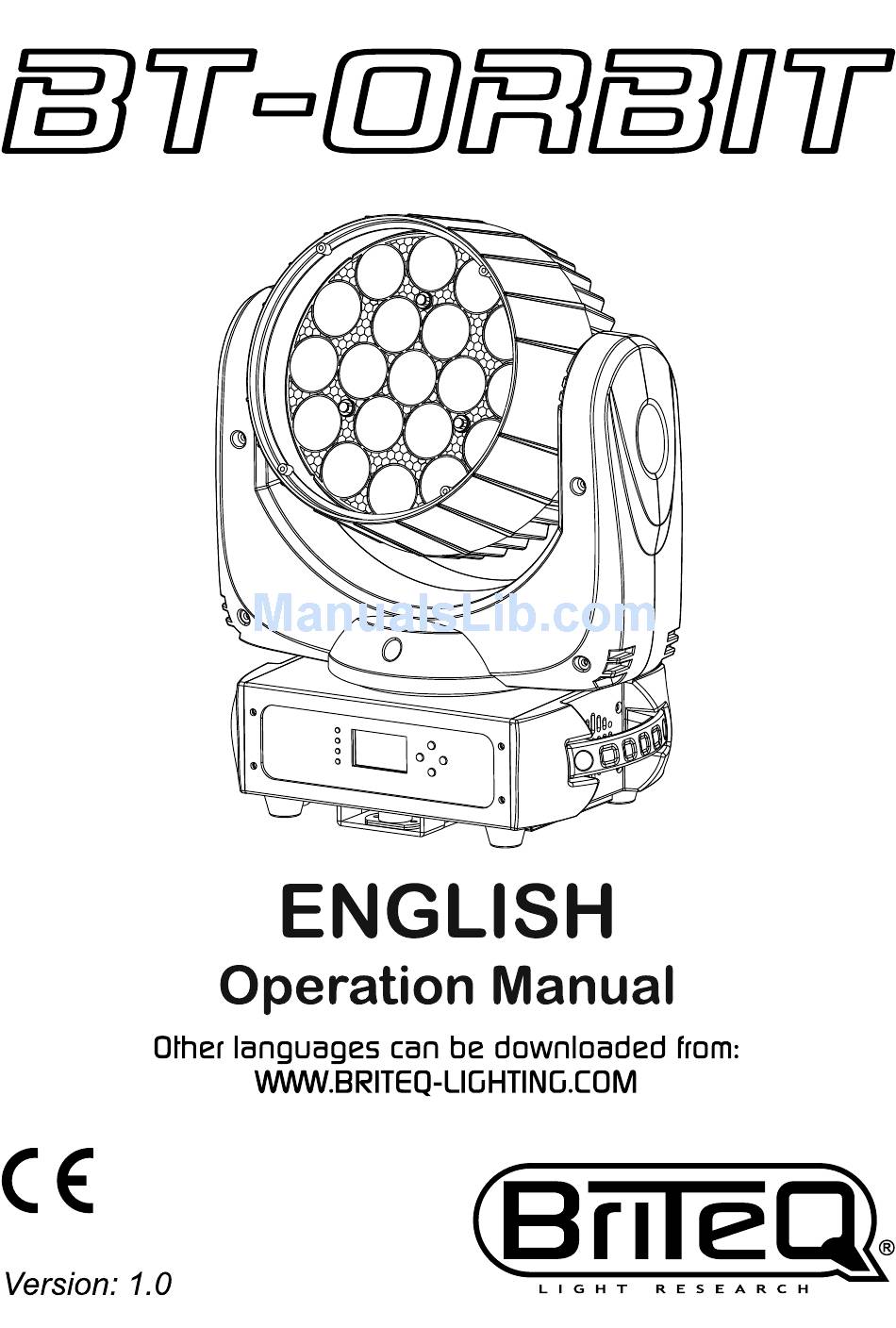

    ENGLISH USER MANUAL OPERATION MANUAL Thank you for buying this BRITEQ product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines.

  • Page 4: Safety Instructions

    • In the event of serious operating problems, stop using the fixture and contact your dealer immediately. • The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. BRITEQ 2/17 BT-ORBIT ®...

  • Page 5: Control Panel

    No extra settings to be made in the setup menu, just follow the ® procedure in the user manual supplied with the WTR-DMX DONGLE from BRITEQ . The separate WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: 4645) Hint: Please check our website for special cable assemblies that contain both power (3x1.5mm²...
  • Page 6 • Select “P/T Feedback” and press ENTER • Use ▼ / ▲ buttons to select Yes or No. • Press the ENTER button to save. To return without any change or go to a previous menu, press the MENU button. BRITEQ 4/17 BT-ORBIT ®...
  • Page 7 To return without any change or go to a previous menu, press the MENU button. Remark: Dimmer speed can also be set via DMX (control settings: CH6 / CH8). Please note that settings made via DMX overrule the setting in the setup menu. BRITEQ 5/17 BT-ORBIT ®...
  • Page 8 • Select “Display Warning” and press ENTER. • Use ▼ / ▲ buttons to select Yes or No. • Press the ENTER button to save. To return without any change or go to a previous menu, press the MENU button. BRITEQ 6/17 BT-ORBIT ®...
  • Page 9 • Remain Time: shows how many hours are still left before the next maintenance. • When maintenance is done, use ▼ / ▲ buttons to reset the timer. • Press ENTER to confirm • To return, press the MENU button until you’re in the main menu. BRITEQ 7/17 BT-ORBIT ®...

  • Page 10: Offset Adjust

    • The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ 8/17 BT-ORBIT ®...

  • Page 11: Electrical Installation + Addressing

    040 - 044 Pan and tilt speed = NORM 045 - 049 Pan and tilt speed = FAST 050 - 054 Pan and tilt speed = SLOW 055 - 079 No function 080 - 084 Fast Dimming BRITEQ 9/17 BT-ORBIT ®...
  • Page 12 060 - 064 Medium Blue 065 - 069 Double CT Blue 070 - 074 Slate Blue 075 - 079 Full CT Blue 080 - 084 Half CT Blue 085 - 089 Steel Blue 090 - 094 Lighter Blue BRITEQ 10/17 BT-ORBIT ®...
  • Page 13 170 - 184 Strobe 7: burst pulse (fast → slow) 185 - 189 Shutter open 190 - 204 Strobe 8: random burst pulse (fast → slow) 205 - 209 Shutter open 210 - 224 Strobe 9: sine wave (fast → slow) BRITEQ 11/17 BT-ORBIT ®...
  • Page 14 100 - 104 Medium Blue Green 105 - 109 Dark Green 110 - 114 Primary Green 115 - 119 Moss Green 120 - 124 Fern Green 125 - 129 JAS Green 130 - 134 Lime Green 135 - 139 Spring Yellow BRITEQ 12/17 BT-ORBIT ®...
  • Page 15 055 - 079 No function 080 - 084 Fast dimming 085 - 089 No function 090 - 094 Smooth dimming 095 - 249 No function 250 - 255 Switch backlight display ON Master Dimmer (0 to 100%) 000 - 255 BRITEQ 13/17 BT-ORBIT ®...
  • Page 16 000 - 009 RGB color mixing using channels 9 to 12 010 - 014 Moroccan pink 015 - 019 Pink 020 - 024 Special rose pink 025 - 029 Follies pink 030 - 034 Fuchsia pink BRITEQ 14/17 BT-ORBIT ®...
  • Page 17 083 – 097 Ring 1 + Ring 2 098 – 112 All leds 113 – 127 Macro 1 128 – 142 Macro 2 143 – 157 Macro 3 158 – 172 Macro 4 173 – 187 Macro 5 BRITEQ 15/17 BT-ORBIT ®...

  • Page 18: Maintenance

    • Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 16/17 BT-ORBIT ®...

  • Page 19: Specifications

    19x 15W RGBW Zoom Range: 10° ~ 60° Size: see drawing below Weight: 9,0 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 17/17 BT-ORBIT ®...
