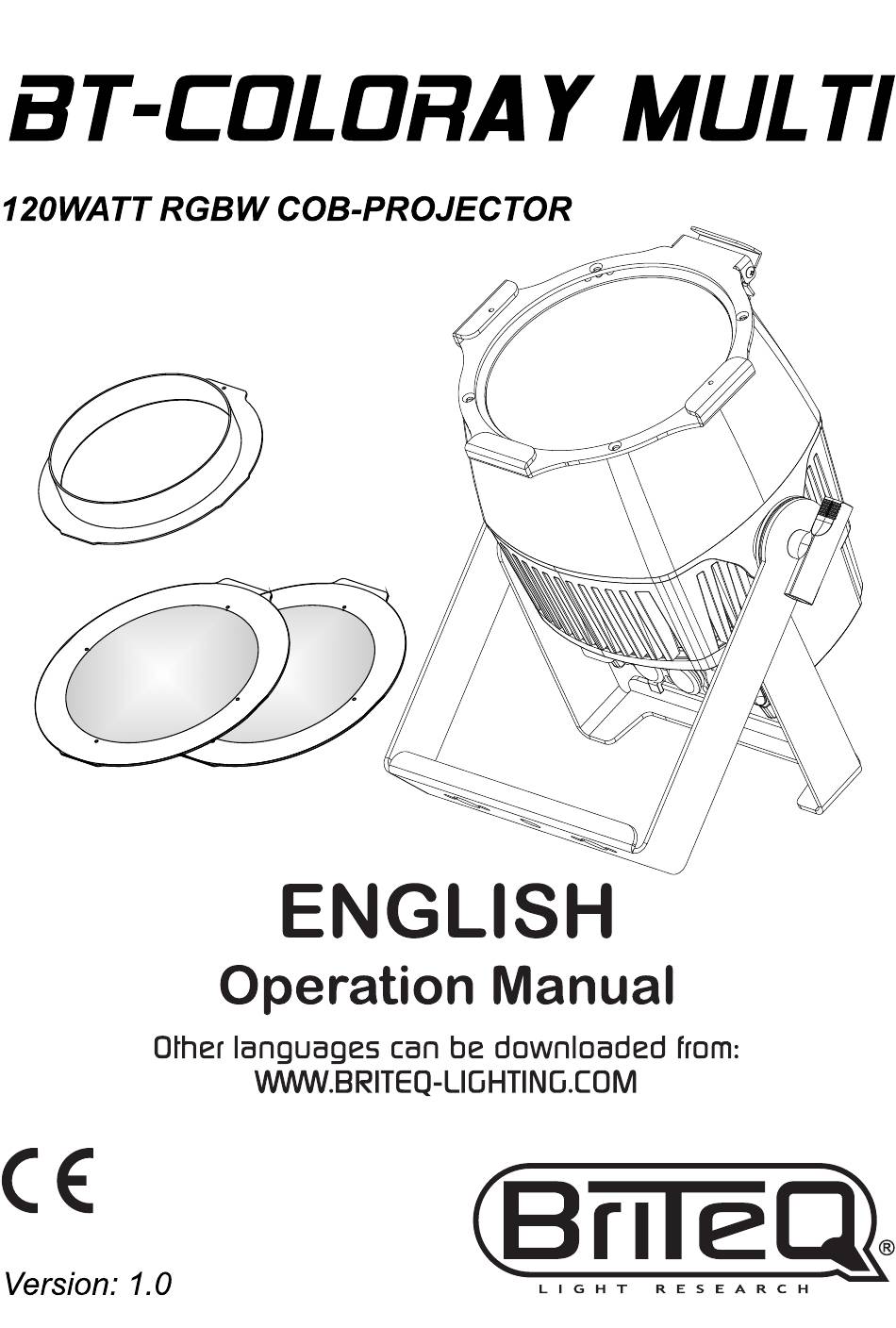

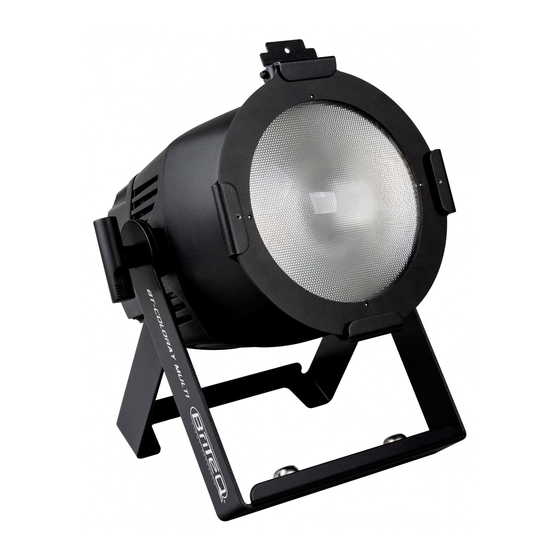

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • Powerful 120W RGBW projector with a waterproof IP65 die-cast ALU-housing •... -
Page 4: Safety Instructions
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/12 BT-COLORAY MULTI ®... - Page 5 Remark: to rotate the display over 180°, press the ▲-button while the standard display is shown. 7. HANGING BRACKET: with nuts for the use of the (optional) Briteq Omega Bracket Small (code: 02677). you can use the hole in the center of the bracket to fix a hook or truss clamp.
-
Page 6: Overhead Rigging
The installations should be inspected every year by a skilled person to be sure that safety is still optimal. INSTALLATION OF THE ACCESSORIES Possible combinations depending on the application BRITEQ 4/12 BT-COLORAY MULTI ®... - Page 7 ▲/▼buttons to browse the menu. • Select the function with the [ENTER] button. • Use ▲/▼buttons to change the values. • Once the required value is selected, press the [ENTER] button to confirm. BRITEQ 5/12 BT-COLORAY MULTI ®...
- Page 8 • Press the [ENTER] button: the values can be changed • Use [DOWN] and [UP] buttons to selected the desired color: • [COLOR WW] warm white 3200K • [COLOR CW] warm white 5600K • [RED] • [ORANGE] BRITEQ 6/12 BT-COLORAY MULTI ®...
- Page 9 • Once the correct option shows on the display, press the [ENTER] button to save it. [LOCKING] Used to lock the setup menu against unwanted altering of the settings. • Press the [MENU] button or ▲/▼buttons until the desired function is showing on the display. BRITEQ 7/12 BT-COLORAY MULTI ®...
- Page 10 Used to show the current version of the firmware. • Press the [MENU] button or ▲/▼buttons until the desired function is showing on the display. The firmware of this unit can be upgraded using the Briteq Firmware updater 2 BRITEQ...
-
Page 11: Electrical Installation
Each time the projector is switched on, the display shows “UPDATE Wait ….”: while this message shows on the display you can start the update using our special upgrade tool. More information about this can be found in the user manual of the upgrade tool and / or our website: www.briteq-lighting.com ELECTRICAL INSTALLATION Important: The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. - Page 12 Remarks 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000=0% ~ 200=100% (full open) 000-200 Master dimmer Increasing speed: 201=slow ~ 247=fast 201-247 Strobe Master dimmer is full open 248-255 Master dimmer @ 100% BRITEQ 10/12 BT-COLORAY MULTI ®...
-
Page 13: Maintenance
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 11/12 BT-COLORAY MULTI ®... -
Page 14: Specifications
= 13° ~ field angle = 22° IP-Rating: IP65 Size: see drawing Weight: 4.8 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 12/12 BT-COLORAY MULTI ®...
