Summary of Contents for Briteq BT-PROFILE250 LED ENGINE
-
Page 3: Before Use

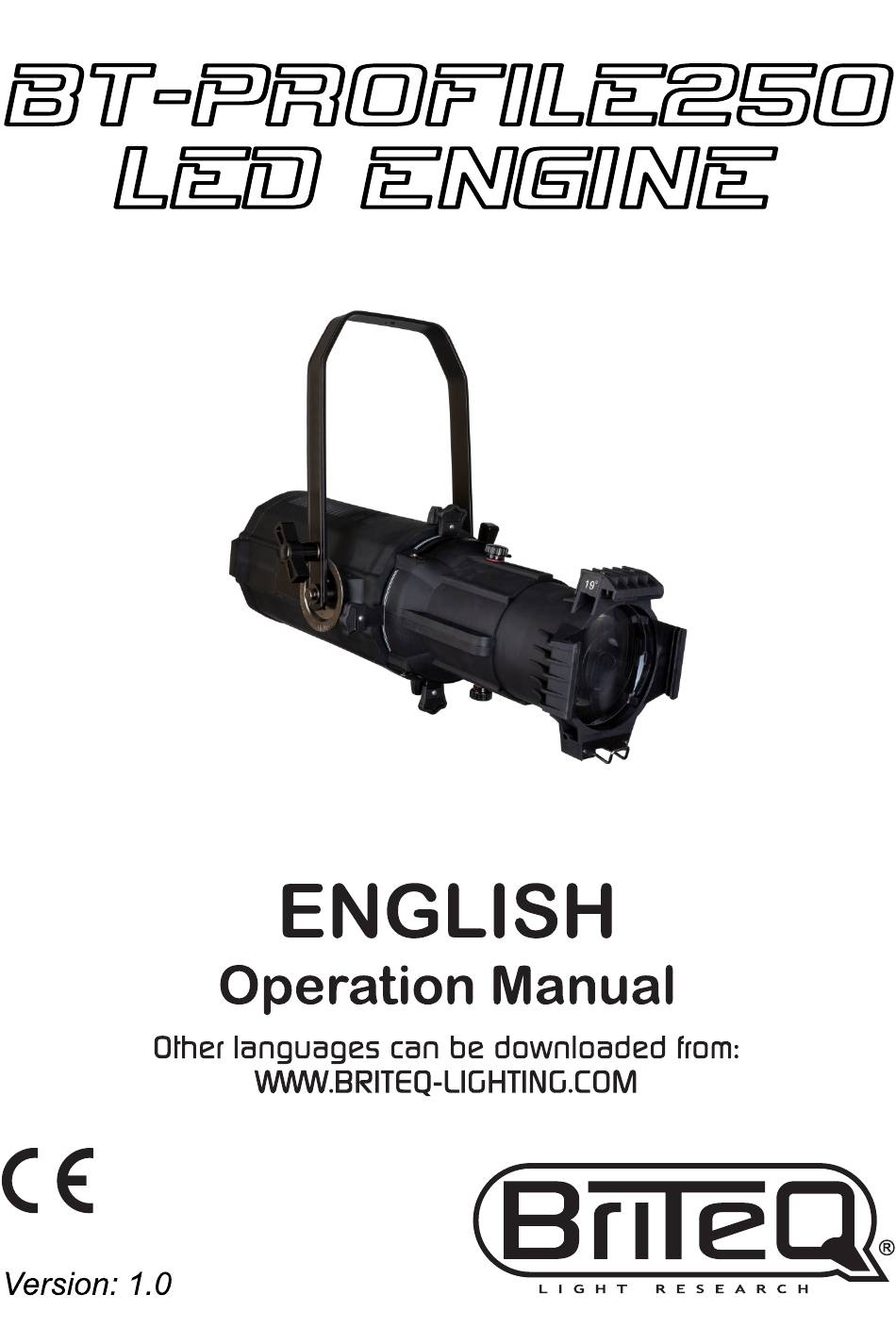

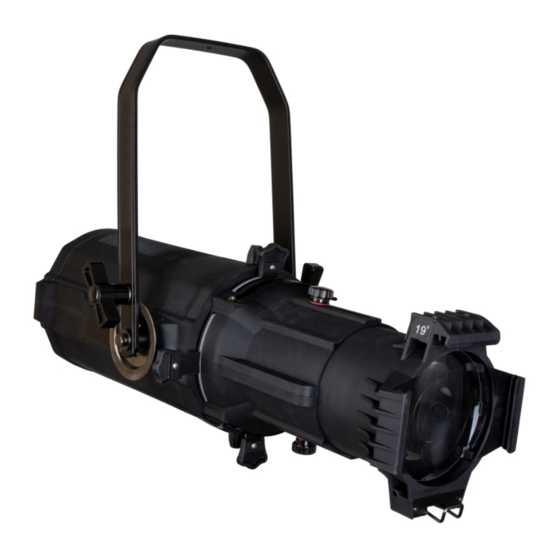

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this BRITEQ product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • This LED profile spot is based on high power LED technology •... -
Page 4: Safety Instructions
• In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside. • Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! BRITEQ BT-PROFILE250 LED ENGINE ®... -
Page 5: Overhead Rigging
10. DMX INPUT CONNECTOR: 3pin male XLR-connector used to connect the unit with the DMX controller or with the previous unit in the DMX chain. 11. DMX OUTPUT: 3pin female XLR-connector used to connect the unit with the next unit in the DMX chain. BRITEQ BT-PROFILE250 LED ENGINE ®... - Page 6 DMX Mode Used to select if the dimmer should work in 8bit or 16bit mode while controlled via DMX. • Press the MENU-button (2) until the display shows [DMX Mode] BRITEQ BT-PROFILE250 LED ENGINE ®...
-
Page 7: Maintenance
Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ BT-PROFILE250 LED ENGINE ®... -
Page 8: Specifications
310 x 250 x 350mm (led engine without bracket and without lens) Weight: 5,26 kg (LED ENGINE) The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ BT-PROFILE250 LED ENGINE ®...
