Summary of Contents for Briteq BT-PROFILE HD

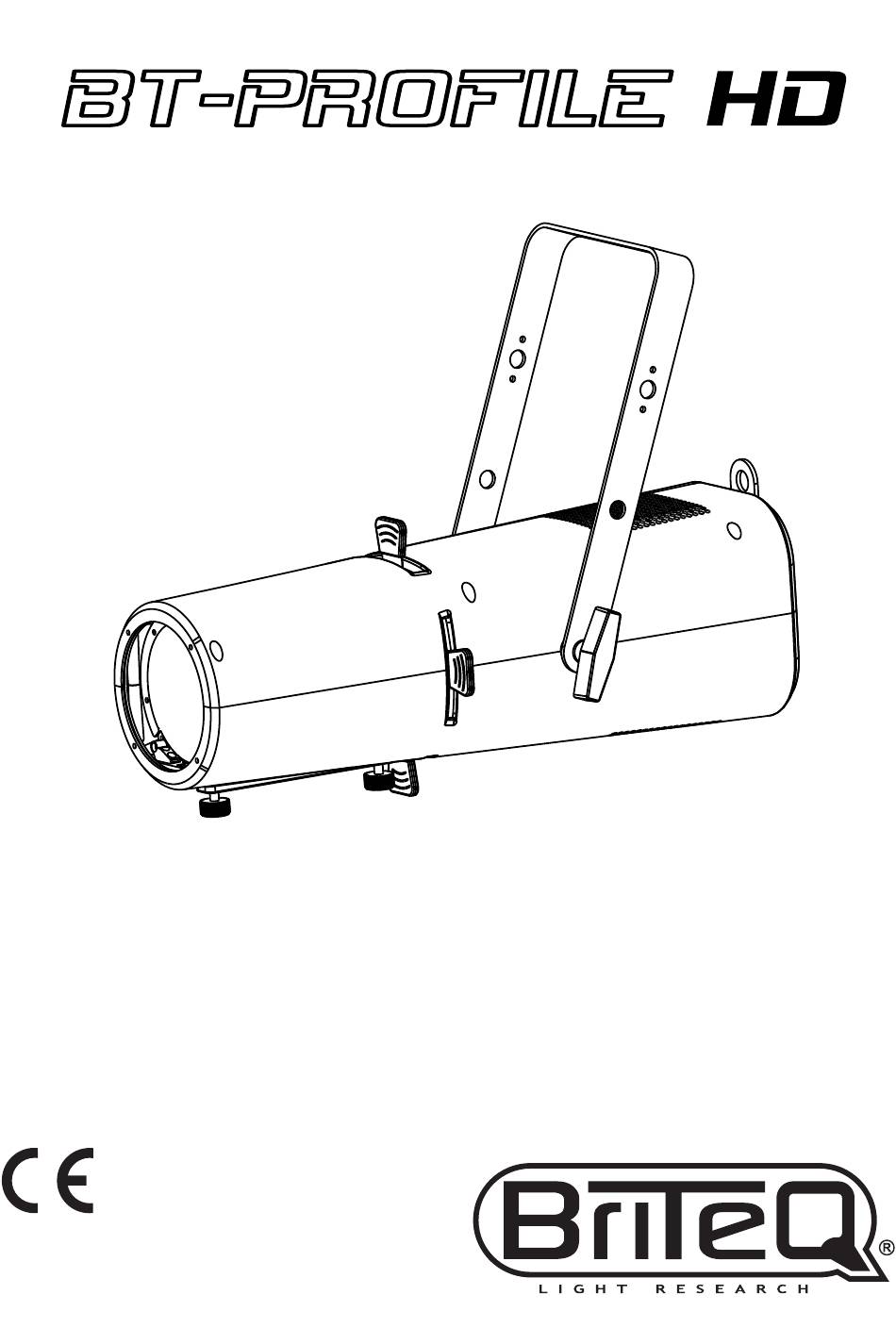

- Page 1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.BRITEQ-LIGHTING.COM Version: 1.0...
-
Page 3: Before Use
• Integrated manual 25° ~ 50° zoom. • 4 blade shutter framing system to make sharp beam cuts. • No more need for separate white and color projectors, BT-PROFILE HD does it all: • Perfect WHITE with high CRI > 90Ra and CCT presets •... -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ BT-PROFILE HD ®... -
Page 5: Overhead Rigging
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ BT-PROFILE HD ®... - Page 6 **** 6000Hz 25000Hz LIVE (default) Fan mode low speed ， PERFORM POWER Fast rotation of fan all power STUDIO Automatic rotation of fan ON (default) Locks display (passcode is <UP>, DISP KEY <DOWN >,<UP>, <DOWN>, <ENTER>) BRITEQ BT-PROFILE HD ®...
-
Page 7: Electrical Installation
TIME 30s (default) / 2min of inactivity 2min FIXTURE HOURS Hours of fixture use VERSION Software versions 0x21220xxxxxxx Check fixture's ID INFO LABEL BT-PROFILE HD Check fixture's LABEL 1800K 2200K 2700K 3000K 3200K 4000K 4500K Preset color temperatures 5000K 5600K... -
Page 8: Dmx Charts
0-010 Disabled Color presets 011-255 Preset colors (annex 1 for details) Disabled 1800K 2200K 2700K 3000K 3200K 4000K 4500K Linear CCT 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K 0-040 Disabled Auto programs 41-50 AUTO 1 BRITEQ BT-PROFILE HD ®... -
Page 9: Maintenance
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ BT-PROFILE HD ®... -
Page 10: Specifications
5 pin-XLR male / female inputs + outputs Lamp: RGBAL LED 170W CRI: >90 Beam Angle: manual zoom 25° ~ 50° IP-Rating: IP20 0°C – 45°C Operating Temperature: Size: See drawing Weight: 6,2 kg DIMENSIONS: LUX CHARTS BRITEQ BT-PROFILE HD ®... - Page 11 COLOR 47 COLOR 48 246-250 L128 Cool LED Bright Pink 0.57 0.263 251-255 NO FUNCTION The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ BT-PROFILE HD ®...
