Summary of Contents for Briteq BT-AKKUBAR
-
Page 3: Before Use

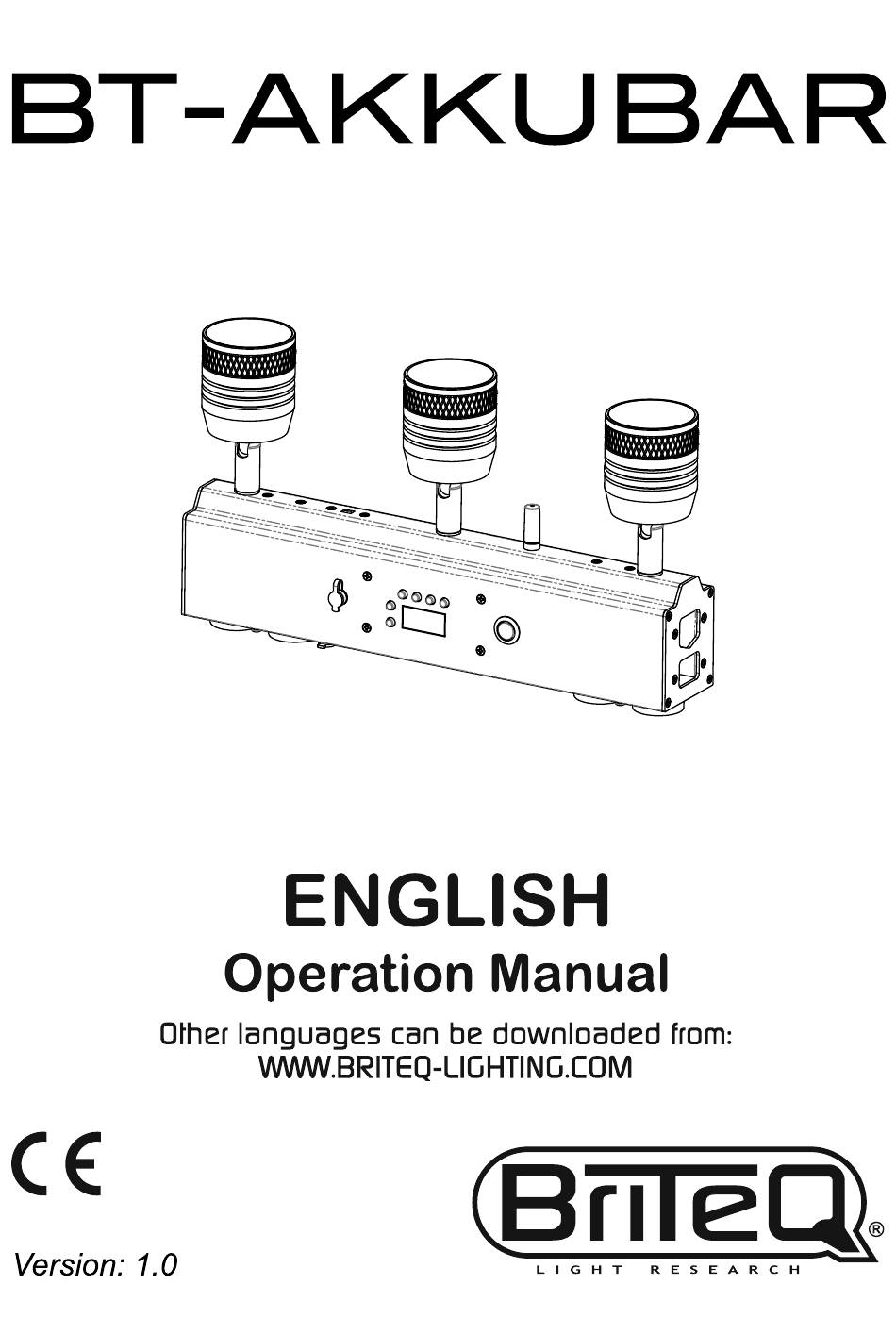

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • Compact but powerful Li-ion battery-powered LED-projector •... -
Page 4: Safety Instructions
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately. • The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. BRITEQ BT-AKKUBAR ®... -
Page 5: Overhead Rigging

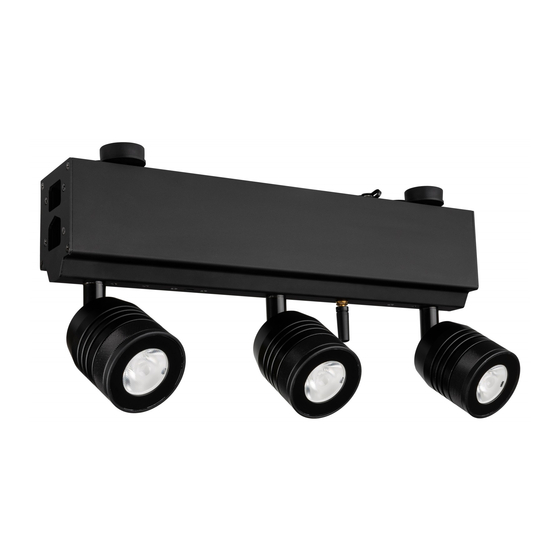

• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ BT-AKKUBAR ®... - Page 6 13. LED projector (can be turned 90° vertical and 330° horizontal) 14. Antenna for wireless DMX. 15. IR sensor. 16. Fixing holes for mounting (optional) [OMEGA BRACKET SMALL] (order code : B02677) 17. Wireless DMX indicator leds (RGB) 18. Battery level indicator leds. BRITEQ BT-AKKUBAR ®...
-
Page 7: Electrical Installation
• Refer to chapter [HOW TO SETUP] to learn how to switch between different working modes. Electrical installation for one or more units in DMX-mode: You can control the BT-AKKUBAR projector by wireless DMX. The projector’s wireless DMX protocol is fully compatible with “Wireless Solution Sweden”. - Page 8 • Press the [ENTER] button and ▼button simultaneously for 3s to unlock the display functions. • The display flashes once to show that it’s unlocked. • Press the [MENU] button to leave. [UErn] Software Version Used to show the software version of the unit. • Press the [MENU] button. BRITEQ BT-AKKUBAR ®...
- Page 9 BT-AKKUBAR will start blinking during pairing and will stay lit when the pairing has succeeded. • If the status led (17) is GREEN, the BT-AKKUBAR is already paired with a transmitter. To unpair it from the transmitter, press the [ID] button (10) for about 5s until the status led (17) turns WHITE (RGB leds lit).
-
Page 10: Dmx Chart
Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! RECYCLING OF USED BATTERIES: used Li/ion batteries should be considered and handled as dangerous waste. Each country has its own regulations for the recycling of used rechargeable BRITEQ BT-AKKUBAR ®... -
Page 11: Specifications
3 LED 5W Beam angle: 25° Refresh rate: 2,1kHz CRI: Size: see drawing Weight: 2.73 kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ BT-AKKUBAR ®...
