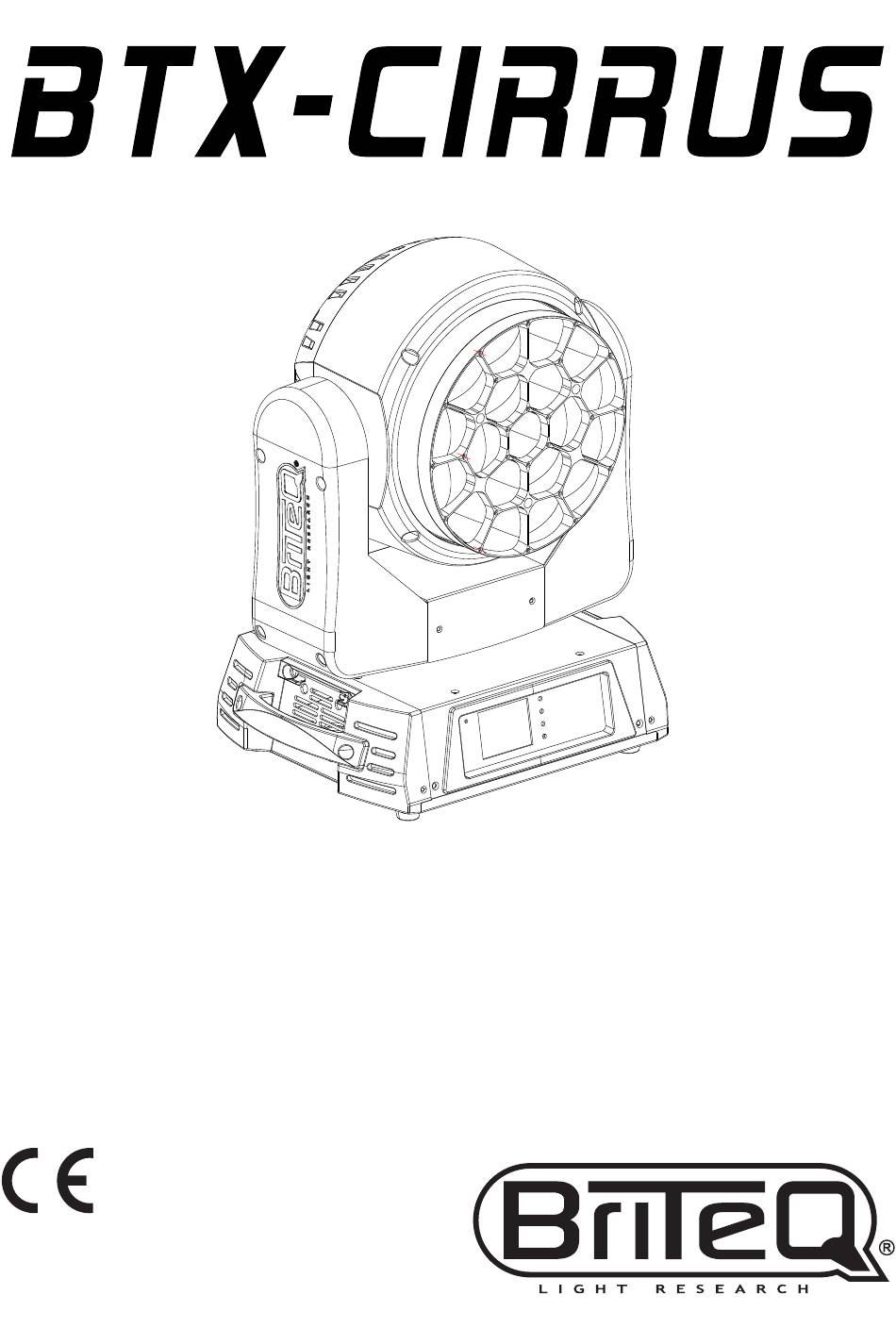

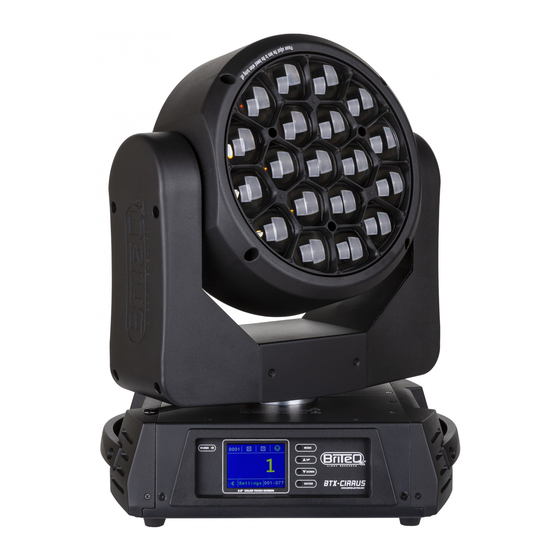

- Page 1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.BRITEQ-LIGHTING.COM Version: 1.0...
-
Page 3: Before Use
ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. - Page 4 • Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/18 BTX-CIRRUS ®...
-
Page 5: Overhead Rigging
20cm if the main attachment fails. • The device should be well fixed; a free-swinging mounting is dangerous and may not be considered! • Don’t cover any ventilation openings as this may result in overheating. BRITEQ 3/18 BTX-CIRRUS ®... -
Page 6: Electrical Installation + Addressing
• Each unit in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses. BRITEQ 4/18 BTX-CIRRUS ®... -
Page 7: Operating Instructions
TOUCHSCREEN – MAIN INTERFACE LAYOUT: When the unit is switched on, the display shows the BriteQ logo, followed by the main interface as shown below. The main interface is splitup in different parts (icons). You can press these icons, which are in fact shortcuts, to immediately access different parts of the setup menu (see drawing). -
Page 8: Channel Mode
ENGLISH OPERATION MANUAL CHANNEL MODE Set the channel mode of BriteQ BTX-CIRRUS: • Standard: 20 Channels • Shapes: 29 Channels • Extended: 77 Channels • Extended RGBW: 96 Channels • Full : 86 Channels • Extended Dimmer: 48 Channels DMX INPUT is green: received DMX-signal is OK. - Page 9 Reset Reset Pan/Tilt Reset Other Manual Control Channel All channels can be tested individually Automatic test of RGBW, dimmer, strobe, pan/tilt, zoom. The values of the Test automatic test are also transmitted to the DMX output. BRITEQ 7/18 BTX-CIRRUS ®...
- Page 10 Show the state of each cards. If one of the electronic card is not at 100%, contact the technical support. INFORMATION DMX VALUE Shows the DMX value received by the Briteq BTX-CIRRUS on the DMX input. It can be used as a DMX analyzer to check the values received. INFORMATION FAN MONITOR Shows the rotation speed of the fans.
- Page 11 • Off: The touchscreen is not active, menu navigation is only possible using the buttons. Auto screen (on-off) • On: the screen is automatically rotated, based on the angle of the BriteQ BTX-CIRRUS. • Off: the screenhe orientation is fixed...
-
Page 12: Dmx Channels
055-059 LEE 079 - Just Blue 060-064 LEE 132 - Medium Blue 065-069 LEE 200 - Double CT Blue 070-074 LEE 161 - Slate Blue 075-079 LEE 201 - Full CT Blue 080-084 LEE 202 - Half CT Blue BRITEQ 10/18 BTX-CIRRUS ®... - Page 13 144-159 Closing pulse in sequence from fast to slow 160-191 OPEN 192-223 Random strobe from slow to fast 224-255 OPEN 000-255 Dimmer 0-100% 000-255 Dimmer Fine 000-255 Pan 000-255 Pan Fine 000-255 Tilt 000-255 Tilt Fine 000-255 Pan/tilt speed (fast to slow) SPECIAL FUNCTIONS BRITEQ 11/18 BTX-CIRRUS ®...
- Page 14 Dot + ring 1 + ring 2 (static) Shape 6 Shape 7 Shape 8 Shape 9 Shape 10 Shape 11 Shape 12 Shape 13 Shape 14 Shape 15 Shape 16 Shape 17 Shape 18 Shape 19 Shape 20 Shape 21 Shape 22 BRITEQ 12/18 BTX-CIRRUS ®...
- Page 15 Shape 46 Shape 47 Shape 48 Shape 49 Shape 50 UNUSED RANGE Shape 51 Shape 52 Shape 53 Shape 54 UNUSED RANGE Shape 55 071-255 UNUSED RANGE SHAPE SPEED 000-063 Radius size,Static 064-158 max to min speed BRITEQ 13/18 BTX-CIRRUS ®...
- Page 16 000-255 LED7 - Green 0-100% 000-255 LED7 - Blue 0-100% 000-255 LED7 - White 0-100% 000-255 LED7 - Dimmer 0-100% 000-255 LED8 - Red 0-100% 000-255 LED8 - Green 0-100% 000-255 LED8 - Blue 0-100% 000-255 LED8 - White 0-100% BRITEQ 14/18 BTX-CIRRUS ®...
- Page 17 000-255 LED16 - Dimmer 0-100% 000-255 LED17 - Red 0-100% 000-255 LED17 - Green 0-100% 000-255 LED17 - Blue 0-100% 000-255 LED17 - White 0-100% 000-255 LED17 - Dimmer 0-100% 000-255 LED18 - Red 0-100% 000-255 LED18 - Green 0-100% BRITEQ 15/18 BTX-CIRRUS ®...
- Page 18 • Screw the new Artnet module in place of the XLR PCB using the 12 provided screws. • Connect the 3 pins DMX cable into the Artnet module (this cable was connected to the XLR PCB) BRITEQ 16/18 BTX-CIRRUS ®...
-
Page 19: Maintenance
19 Osram 30W RGBW LEDs Size: 390 x 287 x 494 mm Weight: 16 kg All the information is subject to change without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 17/18 BTX-CIRRUS ®... -
Page 20: Lux Chart
ANNEX – ANNEXE – BIJLAGE – ANHANG ANEXO DIMENSIONS LUX CHART BRITEQ 18/18 BTX-CIRRUS ®...
