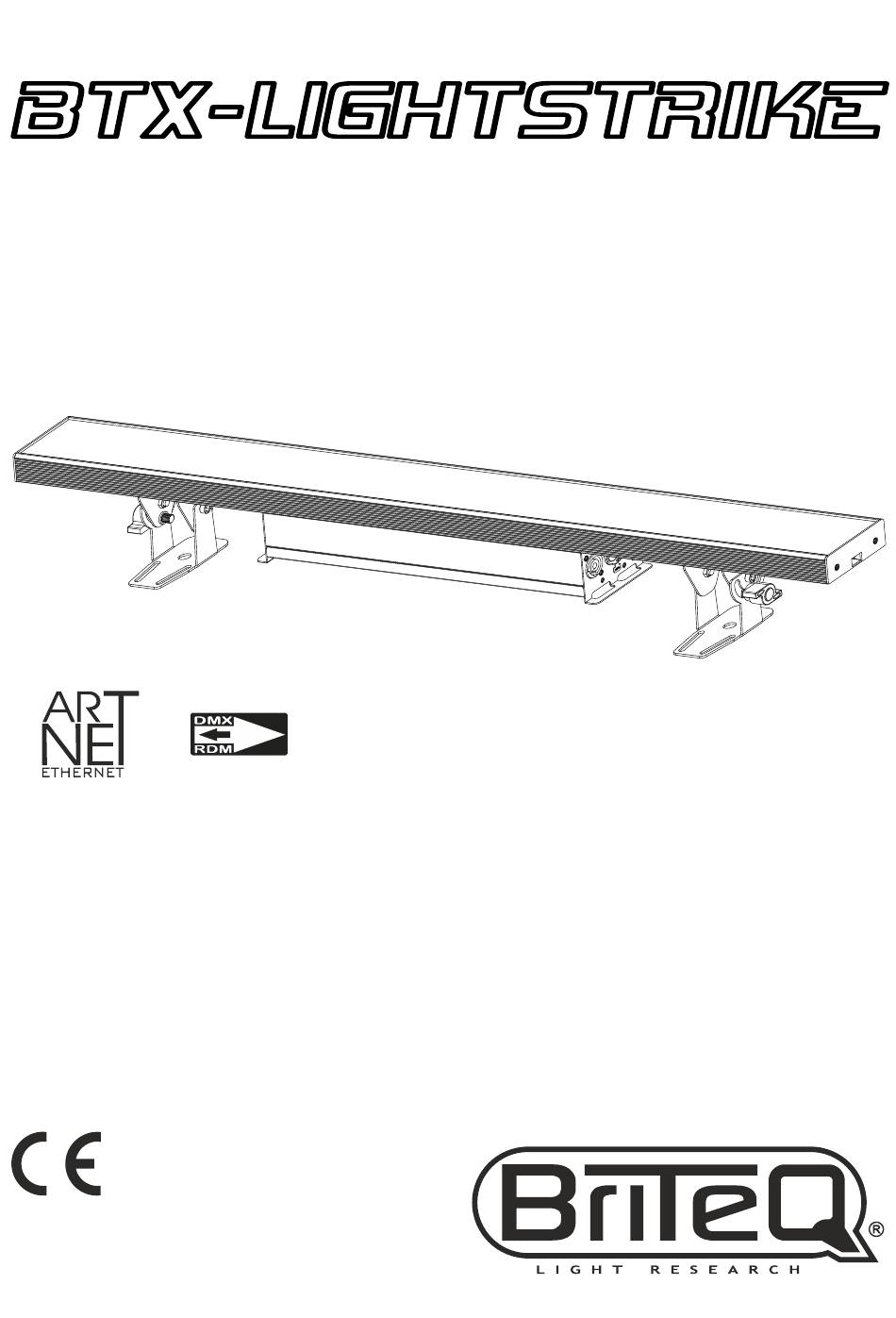

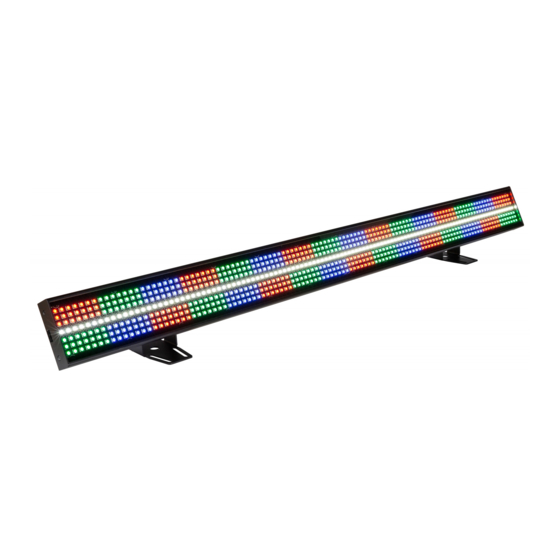

- Page 1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.BRITEQ-LIGHTING.COM Version: 1.0...
-
Page 3: Before Use
• Optional creative filters are available for all kinds of additional visual effects. • The BTX-LIGHTSTRIKE is very compact and has a low weight which allows it to be quickly incorporated into all kinds of scenery. -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/22 BTX-LIGHTSTRIKE ®... - Page 5 “omega bracket small” (order code: B02677). There are 6 fixing holes so you can adapt the position of the omega bases if needed. 9. SAFETY HOLE: used to attach (an optional) safety cable when the unit is rigged, see paragraph “overhead rigging”. BRITEQ 3/22 BTX-LIGHTSTRIKE ®...
-
Page 6: Overhead Rigging
• The operator has to make sure that safety-relating machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ 4/22 BTX-LIGHTSTRIKE ®... -
Page 7: Setup Menu
Fixture Information Temperature current + max LED temp. Fan State xxxx shows actual rotation speed Firmware Version RDM UID xxxxxx Fixture Errors Error Logs Reset Error Log confirm with password (= 050) Special Functions Factory Restore No/Yes BRITEQ 5/22 BTX-LIGHTSTRIKE ®... -
Page 8: Dmx Address
• Press the ▼/▲ buttons to browse the menu until the required function shows up. • Press the ENTER button: the values can be changed • Use ▼/▲ buttons to select the desired mode: • AUTO: checks the incoming signals and selects the first valid signal. BRITEQ 6/22 BTX-LIGHTSTRIKE ®... -
Page 9: Dimmer Curve
PCB with those of the already present PCB. We recommend to use this option only when it is really necessary. • Connect the projector to a DMX controller in the 6CH DMX-mode and choose the color you want to match. BRITEQ 7/22 BTX-LIGHTSTRIKE ®... -
Page 10: Display Settings Menu
• Use ▼/▲ buttons to select the desired mode: • °C: temperature shown in degrees Celsius. • F: temperature shown in Fahrenheit. • Once the correct option shows on the display, press the ENTER button to save it. BRITEQ 8/22 BTX-LIGHTSTRIKE ®... - Page 11 • Press the ENTER button: the current firmware version of the different processors is shown. Note: The firmware of this unit can be upgraded using our special “Firmware Updater” (separately available from Briteq). More information about this can be found in the user manual of the firmware updater or our website: https://briteq-lighting.com/firmware-updater...
-
Page 12: Special Functions Menu
256 DMX-universes in one time. This projector can be connected in such Ethernet network using routers, switches etc. The network topology is exactly the same as for a normal PC-network. However, IP-addresses cannot be obtained via DHCP: see BRITEQ 10/22 BTX-LIGHTSTRIKE ®... -
Page 13: Dmx Charts
Simple mode, without pixels control or pixel macros 6 CH VALUE FUNCTION REMARKS 000-255 pixel 1 000-255 GREEN pixel 1 000-255 BLUE pixel 1 000-255 WHITE pixel 2 MASTER DIMMER (coarse) 0 → 100% 000-255 MASTER DIMMER (fine) 0 → 100% 000-255 BRITEQ 11/22 BTX-LIGHTSTRIKE ®... - Page 14 006-050 Ramp up combined for all pixels 051-100 Ramp down combined for all pixels 101-150 Ramp up-down combined for all pixels 151-200 Lightning combined for all pixels 201-255 Random combined for all pixels BRITEQ 12/22 BTX-LIGHTSTRIKE ®...
- Page 15 3 seconds delay 036-040 DIMMER SPEED: SLOW 3 seconds delay 041-045 No function 046-050 PIXEL ORDER: NORMAL 3 seconds delay 051-055 PIXEL ORDER: INVERSED 3 seconds delay 056-060 No function 061-065 LED PWM Frequency: 1200Hz 3 seconds delay BRITEQ 13/22 BTX-LIGHTSTRIKE ®...
- Page 16 MASTER DIMMER (coarse) 0 → 100% 000-255 MASTER DIMMER (fine) 0 → 100% 000-255 000-255 STROBE DURATION STROBE SPEED 000-006 No strobe SPEED (slow → fast) 007-255 pixel 1 STROBE EFFECTS 000-005 No effect 006-050 Ramp up 051-100 Ramp down BRITEQ 14/22 BTX-LIGHTSTRIKE ®...
- Page 17 091-105 WHITE Macro 1 106-120 WHITE Macro 2 121-135 WHITE Macro 3 136-150 WHITE Macro 4 151-165 WHITE Macro 5 166-180 WHITE Macro 6 181-195 WHITE Macro 7 196-210 WHITE Macro 8 211-225 WHITE Macro 9 BRITEQ 15/22 BTX-LIGHTSTRIKE ®...
- Page 18 000-255 RED3 000-255 GREEN3 000-255 BLUE3 000-255 RED4 000-255 GREEN4 000-255 BLUE4 000-255 RED5 000-255 GREEN5 000-255 BLUE5 000-255 RED6 000-255 GREEN6 000-255 BLUE6 000-255 RED7 000-255 GREEN7 000-255 BLUE7 000-255 RED8 000-255 GREEN8 000-255 BLUE8 BRITEQ 16/22 BTX-LIGHTSTRIKE ®...
- Page 19 3 seconds delay 066-070 LED PWM Frequency: 3600Hz 3 seconds delay 071-075 LED PWM Frequency: 4800Hz 3 seconds delay 076-080 LED PWM Frequency: 7200Hz 3 seconds delay 081-085 LED PWM Frequency: 12000Hz 3 seconds delay 086-255 No function BRITEQ 17/22 BTX-LIGHTSTRIKE ®...
- Page 20 000-255 RED6 000-255 GREEN6 000-255 BLUE6 000-255 RED7 000-255 GREEN7 000-255 BLUE7 000-255 RED8 000-255 GREEN8 000-255 BLUE8 000-255 RED9 000-255 GREEN9 000-255 BLUE9 000-255 RED10 000-255 GREEN10 000-255 BLUE10 000-255 RED11 000-255 GREEN11 000-255 BLUE11 BRITEQ 18/22 BTX-LIGHTSTRIKE ®...
- Page 21 000-255 BLUE26 000-255 RED27 000-255 GREEN27 000-255 BLUE27 000-255 RED28 000-255 GREEN28 000-255 BLUE28 000-255 RED29 000-255 GREEN29 000-255 BLUE29 000-255 RED30 000-255 GREEN30 000-255 BLUE30 000-255 RED31 000-255 GREEN31 000-255 BLUE31 000-255 RED32 000-255 GREEN32 BRITEQ 19/22 BTX-LIGHTSTRIKE ®...
- Page 22 • The DMX-controller sends out a “discovery command”, all RDM devices respond and send their unique device ID. • The DMX-controller asks each RDM device for some basic data so it knows which devices are connected. The projector will respond: • Device name: BTX-LIGHTSTRIKE • Manufacturer: ® Briteq • Category: LED Dimmer •...
-
Page 23: Maintenance
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified technician! BRITEQ 21/22 BTX-LIGHTSTRIKE ®... -
Page 24: Specifications
Dimensions LxWxD (mm) 1000x84x111 (with standard brackets installed, see drawing) Weight (kg) LUX CHART The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 22/22 BTX-LIGHTSTRIKE ®...
