Page 3: Before Use

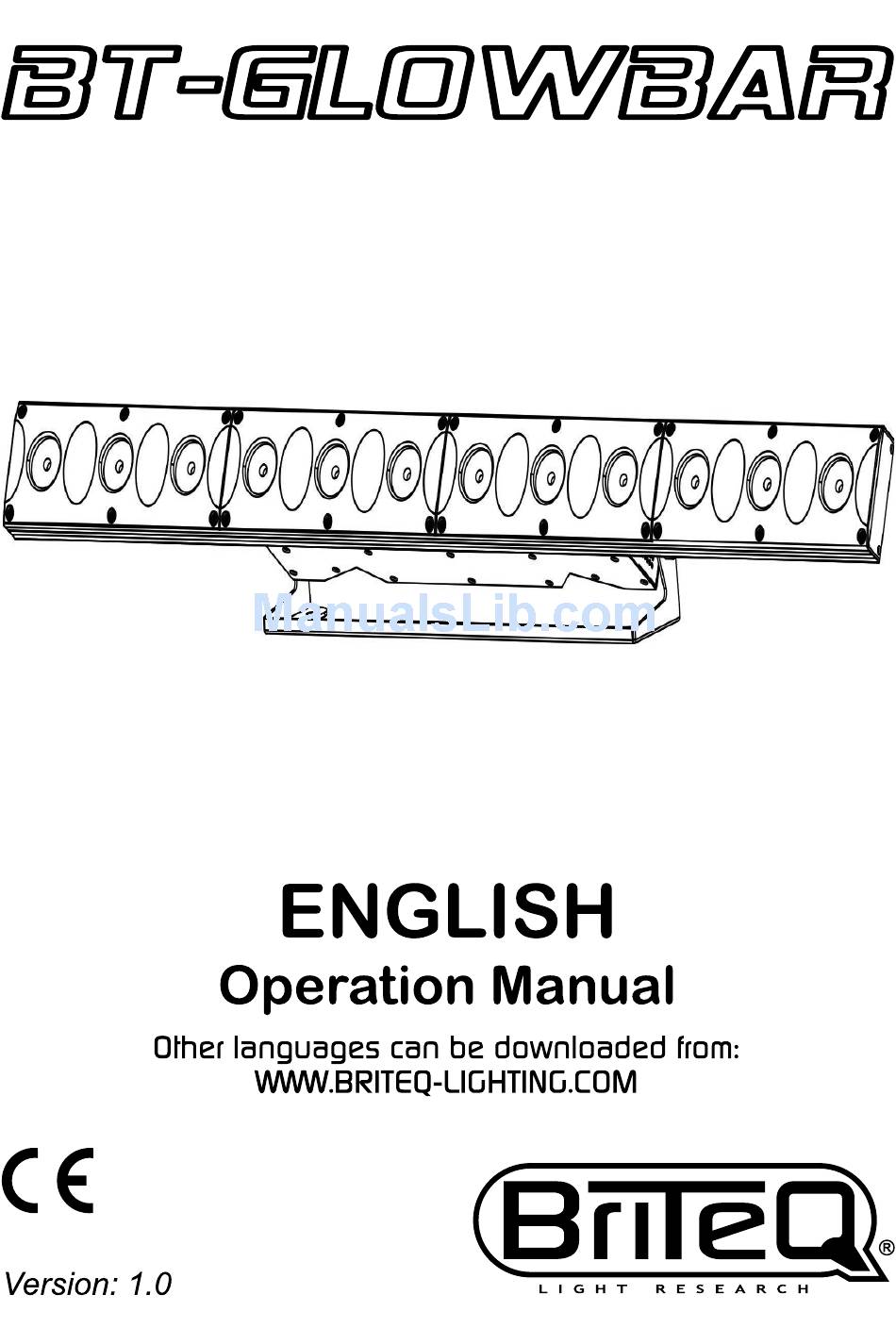

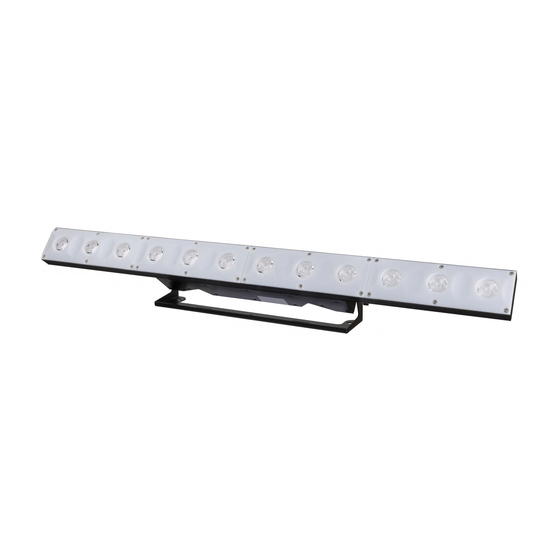

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • The unit is equipped with 12 pcs of 3W CREE leds (2800K WW), in combination with 48 pcs 5050SMD RGB leds. -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/14 BT-GLOWBAR ®... -
Page 5: Overhead Rigging
8. BRACKET: multifunctional and very stable design for both floor and truss mounting. Prepared to install omega brackets, optionally available from Briteq. The projector can be directed in any direction. 9. [DMX IN/OUT]: 3 and 5 pin XLR input to daisy chain the fixture with other units or a DMX-controller. The DMX-input is also used to update the firmware of the fixture. -
Page 6: Setup Menu
Used to set the RGB panel show mode. Press the [MENU] or ▲/▼ buttons until “SHOW MODE RGB” is shown on the display. • Press the [ENTER] button: the last selected show mode will be shown. BRITEQ 4/14 BT-GLOWBAR ®... - Page 7 • Press the [MENU] or ▲/▼buttons until [BACK LIGHT] is showing on the display. • Press the ▲/▼buttons to select the desired mode: • [On] : the display will stay on. • [Off] : the display will turn off after some time. (+/- 1 min.) BRITEQ 5/14 BT-GLOWBAR ®...
- Page 8 • Press the [MENU] or ▲/▼buttons until the [FIRMWARE VX.XX BRITEQ] is showing on the display. The firmware of this unit can be upgraded using the Briteq Firmware Updater (order code : 4319) with Windows® software. More information about this can be found in the user manual of the Firmware Updater and / or our website: www.briteq-lighting.com...
- Page 9 ENGLISH OPERATION MANUAL BRITEQ 7/14 BT-GLOWBAR ®...
-
Page 10: Electrical Installation
• To prevent strange behavior of the light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this simply won’t work! • Make sure that all units are connected to the mains. BRITEQ 8/14 BT-GLOWBAR ®... -
Page 11: Dmx Charts
000-255 Green color dimmer 0-100% 000-255 Blue color dimmer 0-100% 7CH Mode : DMX-value function remarks Channel 000-255 White Pixel Dimmer 0-100% 000-008 Blackout 009-255 Strobe slow->fast 000-007 Program 1 008-027 Program 2 028-047 Program 3 BRITEQ 9/14 BT-GLOWBAR ®... - Page 12 Blue color dimmer 0-100% 000-255 Red color dimmer 0-100% Panel 3 000-255 Green color dimmer 0-100% 000-255 Blue color dimmer 0-100% 000-255 Red color dimmer 0-100% Panel 4 000-255 Green color dimmer 0-100% 000-255 Blue color dimmer 0-100% BRITEQ 10/14 BT-GLOWBAR ®...
- Page 13 Channel 000-255 Pixel 1 dimmer 0-100% 000-255 Pixel 2 dimmer 0-100% 000-255 Pixel 3 dimmer 0-100% 000-255 Pixel 4 dimmer 0-100% 000-255 Pixel 5 dimmer 0-100% 000-255 Pixel 6 dimmer 0-100% 000-255 Pixel 7 dimmer 0-100% BRITEQ 11/14 BT-GLOWBAR ®...
-
Page 14: Maintenance
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced. • The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected. BRITEQ 12/14 BT-GLOWBAR ®... -
Page 15: Specifications
12x WW 3WCREE (2800K) 48x RGB 5050SMD Size: 1000 x 83 x 109 mm Weight: 3,9 kg The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 13/14 BT-GLOWBAR ®...
