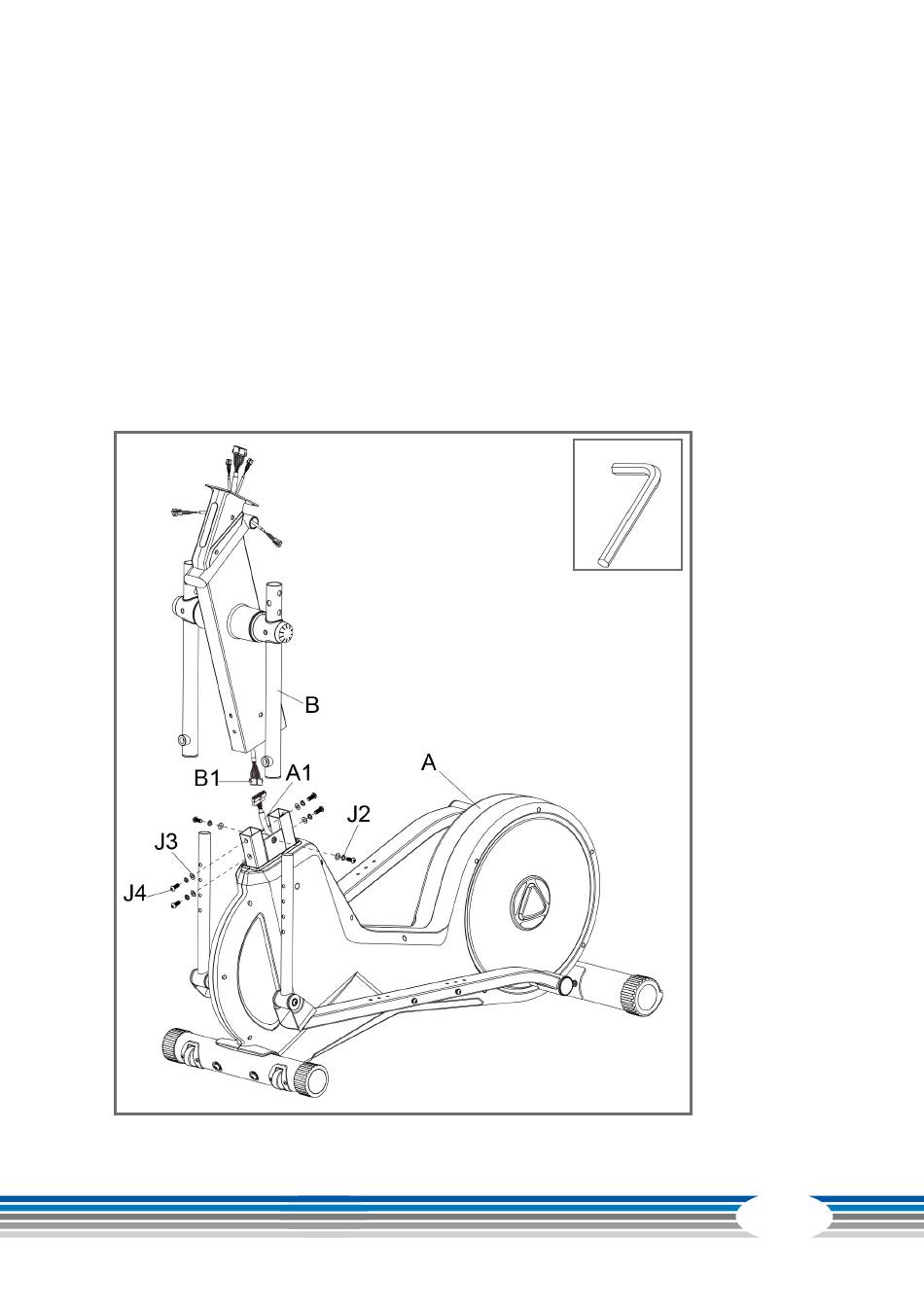

Step 3: Assembly of the Support Tube
1. Remove pre-assembled the screws (J4), spring washers (J2) and washers (J3) from the main
frame (A).
2. Connect the sensor wire (A1) to the sensor wire (B1).
࣑ ATTENTION
Pay attention to not pinch the cables during the next step.
3. Mount the support tube (B) to the main frame (A) using six screws (J4), six spring washers (J2)
and six washers (J3).
4. Tighten the screws.
