AURATON Aquila SET Manual

AURATON Aquila SET Manual

Hide thumbs Also See for Aquila SET:

Advertisement

Quick Links

Download this manual
26/10/21, 4:25 μ.μ.

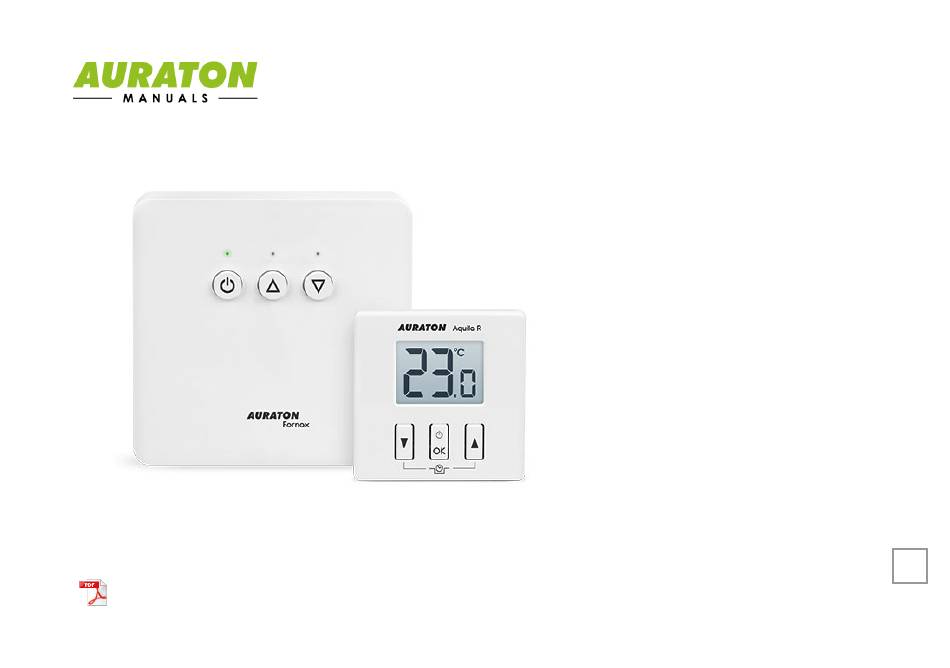

AURATON Aquila SET
PDF
https://manuals.auraton.pl/manuals/auraton-aquila-set-pl/
AURATON Aquila SET - AURATON manuals
The description of AURATON Aquila R
The first launch of AURATON Aquila R.
Description of AURATON Fornax
Pairing AURATON Aquila R with a daily wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller of the heating device
(receiver)
Hysteresis change
PWM operating mode
Operation of the Fornax receiver with a heating
device
Cleaning and maintenance
Receiver connection diagram
Technical data
Manufacturer's address
Disposal of the device
To download
Daily, wireless temperature controller with the
controller of the heating device Auraton Fornax (set)
1/37

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aquila SET and is the answer not in the manual?

Questions and answers

Related Manuals for AURATON Aquila SET

Summary of Contents for AURATON Aquila SET

  • Page 1 The description of AURATON Aquila R The first launch of AURATON Aquila R. Description of AURATON Fornax Pairing AURATON Aquila R with a daily wireless temperature controller (transmitter) with AURATON Fornax - a wireless controller of the heating device (receiver)
  • Page 2 Operation of the Fornax receiver with a heating device AURATON Aquila SET is a set of a daily, wireless temperature controller with a Cleaning and maintenance controller of the AURATON Fornax heating device, designed to work with a gas or Receiver connection diagram electric heating device.
  • Page 3 Fornax - a wireless controller of the heating device daily wireless temperature controller (transmitter) (receiver) Hysteresis change On the front part of the AURATON Aquila R housing there are a backlit LCD display and PWM operating mode three function buttons. Operation of the Fornax receiver with a heating device 1.
  • Page 4 The first launch of AURATON Aquila R. 1. Temperature Description of AURATON Fornax In the normal operation mode, Pairing AURATON Aquila R with a daily wireless AURATON Aquila R displays the temperature controller (transmitter) with AURATON temperature of the room in which it Fornax - a wireless controller of the heating device is currently installed.
  • Page 5 Indicates communication with the The first launch of AURATON Aquila R. receiver. Description of AURATON Fornax Pairing AURATON Aquila R with a daily wireless 6. Battery exhausted ( temperature controller (transmitter) with AURATON The indicator is visible when the Fornax - a wireless controller of the heating device...
  • Page 6 Location in a place with no air circulation or direct sunlight may result in incorrect temperature control. AURATON Aquila R should be installed on the internal wall of the building (partition wall), in an environment of free air circulation. Avoid proximity to heat emitting devices (TV, heater, refrigerator) or locations exposed to direct sunlight.
  • Page 7 The first launch of AURATON Aquila R. Description of AURATON Fornax The battery sockets are located inside the AURATON Aquila R, on both sides of the Pairing AURATON Aquila R with a daily wireless display. To install the batteries, remove the AURATON Aquila R cover as shown in the temperature controller (transmitter) with AURATON figure.
  • Page 8 3. Put the wall plugs in the drilled holes. Operation of the Fornax receiver with a heating device 4. Screw the rear part of the AURATON Aquila R housing to the wall using the screws Cleaning and maintenance included in the kit.
  • Page 9 To download 1. Fixing screw hole. Alternative mounting methods AURATON Aquila R can be attached to a smooth surface with e.g. double-sided tape. The AURATO Aquila R can also be placed anywhere on an even surface using a stand ...
  • Page 10 The first launch of AURATON Aquila R. The first launch of AURATON Aquila Description of AURATON Fornax Pairing AURATON Aquila R with a daily wireless temperature controller (transmitter) with AURATON Fornax - a wireless controller of the heating device (receiver)
  • Page 11 NOTE: Description of AURATON Fornax The first pressing of any function button always turns on the backlight, and Pairing AURATON Aquila R with a daily wireless only the next call of the button function. temperature controller (transmitter) with AURATON Fornax - a wireless controller of the heating device...
  • Page 12 . (receiver) Hysteresis change With the AURATON Aquila R turned off, when the room temperature drops to 2 ° C, the PWM operating mode Fr ( ) Symbols appear on the display and a signal will be sent to the AURATON Operation of the Fornax receiver with a heating Fornax receiver, which will turn on the heating.
  • Page 13 3 seconds . The moon ( ) or sun ( ) symbol will disappear from the display and Disposal of the device only the room temperature will be displayed. AURATON Aquila R has returned to its To download normal operating mode. Description of AURATON Fornax wireless controller of the heating device (receiver) ...
  • Page 14 26/10/21, 4:25 μ.μ. AURATON Aquila SET - AURATON manuals The AURATON Fornax receiver cooperates with the AURATON Aquila R wireless The description of AURATON Aquila R regulator. The receiver is installed next to the heating device and can operate under the The first launch of AURATON Aquila R.
  • Page 15 The diode is blinking red - the AURATON Fornax receiver Receiver connection diagram Technical data is waiting for AURATON Aquila R to be removed from the Manufacturer's address receiver - (chapter: "Writing AURATON Aquila R - daily Disposal of the device...
  • Page 16 (receiver) Hysteresis change ATTENTION! PWM operating mode The cables supplied with the AURATON Aquila SET are designed to Operation of the Fornax receiver with a heating withstand a maximum load of 2.5 A. device If devices with higher power are connected, they must be replaced with cables with Cleaning and maintenance an appropriate cross-section.
  • Page 17 Before making cable connections, they can be disconnected from AURATON The description of AURATON Aquila R Fornax. The cables can be routed from the bottom of AURATON Fornax after The first launch of AURATON Aquila R. breaking holes in the mounting cap or at the back of the receiver if the cables are Description of AURATON Fornax led out of the wall.
  • Page 18 COM (Common) and NO The first launch of AURATON Aquila R. (Normally Open). Description of AURATON Fornax Pairing AURATON Aquila R with a daily wireless temperature controller (transmitter) with AURATON Fornax - a wireless controller of the heating device (receiver)
  • Page 19 (receiver) to the wall To download To attach the AURATON Fornax receiver to the wall: 1. Remove the cover of the front part of the receiver (see chapter "How to install the Auraton Fornax receiver - heating device controller (receiver)") .
  • Page 20 26/10/21, 4:25 μ.μ. AURATON Aquila SET - AURATON manuals 5. Screw the AURATON Fornax receiver to the wall with screws so that they hold the The description of AURATON Aquila R receiver well. The first launch of AURATON Aquila R.
  • Page 21 AURATON Aquila R wireless regulator sold with the AURATON Fornax receiver is already paired. Separately purchased devices require "pairing". 1. Pairing AURATON Aquila R with the AURATON Fornax receiver is initiated by pressing the right pairing button - a single beep (...
  • Page 22 26/10/21, 4:25 μ.μ. AURATON Aquila SET - AURATON manuals The AURATON Fornax receiver waits for pairing for 120 seconds. After this time, it The description of AURATON Aquila R automatically returns to normal operation. The first launch of AURATON Aquila R.
  • Page 23 LED diode on the AURATON Fornax receiver and a single sound signal and the receiver switching to normal operation. In the event of an error while removing AURATON Aquila R, steps 1 and 2 should be repeated. For subsequent errors, RESET AURATON Fornax (see "RESET - Return to factory settings of AURATON Fornax").
  • Page 24 Fornax Description of AURATON Fornax Pairing AURATON Aquila R with a daily wireless To perform a factory reset in AURATON Fornax, press and hold both pairing and temperature controller (transmitter) with AURATON evaporating buttons ( ) simultaneously for at least 5s. until the LED indication Fornax - a wireless controller of the heating device changes to alternating green - red blinking.
  • Page 25 19.8 ° C, and switching off at 20.2 ° C. For the HI 4 hysteresis, Pairing AURATON Aquila R with a daily wireless when the temperature is set to 20 ° C, switching on will take place at 19.6 ° C, and temperature controller (transmitter) with AURATON switching off at 20.4 °...
  • Page 26 By changing the hysteresis settings (chapter "Configuration settings), we can turn on Cleaning and maintenance the PWM operating mode. Receiver connection diagram In this mode, AURATON Aquila R cyclically turns on the heating device in order to minimize temperature fluctuations. AURATON Aquila R checks the temperature rise Technical data Manufacturer's address times and the temperature drop times.
  • Page 27 NOTE: Description of AURATON Fornax In the PWM mode, AURATON Aquila R can turn on the heating device despite the Pairing AURATON Aquila R with a daily wireless fact that the temperature in the room is higher than the preset temperature. This is...
  • Page 28 The first launch of AURATON Aquila R. Fornax Aquila R Description of AURATON Fornax Receiver wireless daily Pairing AURATON Aquila R with a daily wireless connected temperature temperature controller (transmitter) with AURATON to the controller Fornax - a wireless controller of the heating device...
  • Page 29 / off from the last 24 hours . PWM operating mode When the signal from AURATON Aquila R returns, the error is canceled and the Operation of the Fornax receiver with a heating receiver goes to normal operation.
  • Page 30 LEDs on the Fornax receiver - alternately). Operation of the Fornax receiver with a heating In the event of a power failure, AURATON Fornax will switch off. After the power is device restored, AURATON Fornax will automatically turn on and will wait for the next signal...
  • Page 31 The outside of the device should be cleaned with a dry cloth. Do not use solvents Description of AURATON Fornax (such as benzene, thinner, or alcohol). Pairing AURATON Aquila R with a daily wireless temperature controller (transmitter) with AURATON Do not touch the device with wet hands. It may cause electric shock or serious Fornax - a wireless controller of the heating device damage to the device.
  • Page 32 The description of AURATON Aquila R The first launch of AURATON Aquila R. Description of AURATON Fornax Pairing AURATON Aquila R with a daily wireless temperature controller (transmitter) with AURATON Fornax - a wireless controller of the heating device (receiver)
  • Page 33 The description of AURATON Aquila R The first launch of AURATON Aquila R. Description of AURATON Fornax Pairing AURATON Aquila R with a daily wireless temperature controller (transmitter) with AURATON Fornax - a wireless controller of the heating device (receiver)
  • Page 34 0-45 ° C The first launch of AURATON Aquila R. Description of AURATON Fornax in a typical building Pairing AURATON Aquila R with a daily wireless Operating range: with standard wall construction - approx. 30 m; temperature controller (transmitter) with AURATON...
  • Page 35 The first launch of AURATON Aquila R. Description of AURATON Fornax Work cycle: Daily Pairing AURATON Aquila R with a daily wireless temperature controller (transmitter) with AURATON Dimensions [mm]: 70 x 70 x 14.5 Fornax - a wireless controller of the heating device...
  • Page 36 Świerkowa 14 The first launch of AURATON Aquila R. 64-320 Niepruszewo Description of AURATON Fornax Poland Pairing AURATON Aquila R with a daily wireless www.auraton.pl temperature controller (transmitter) with AURATON Fornax - a wireless controller of the heating device (receiver)
  • Page 37 26/10/21, 4:25 μ.μ. AURATON Aquila SET - AURATON manuals © 2021 AURATON manuals  https://manuals.auraton.pl/manuals/auraton-aquila-set-pl/ 37/37...
