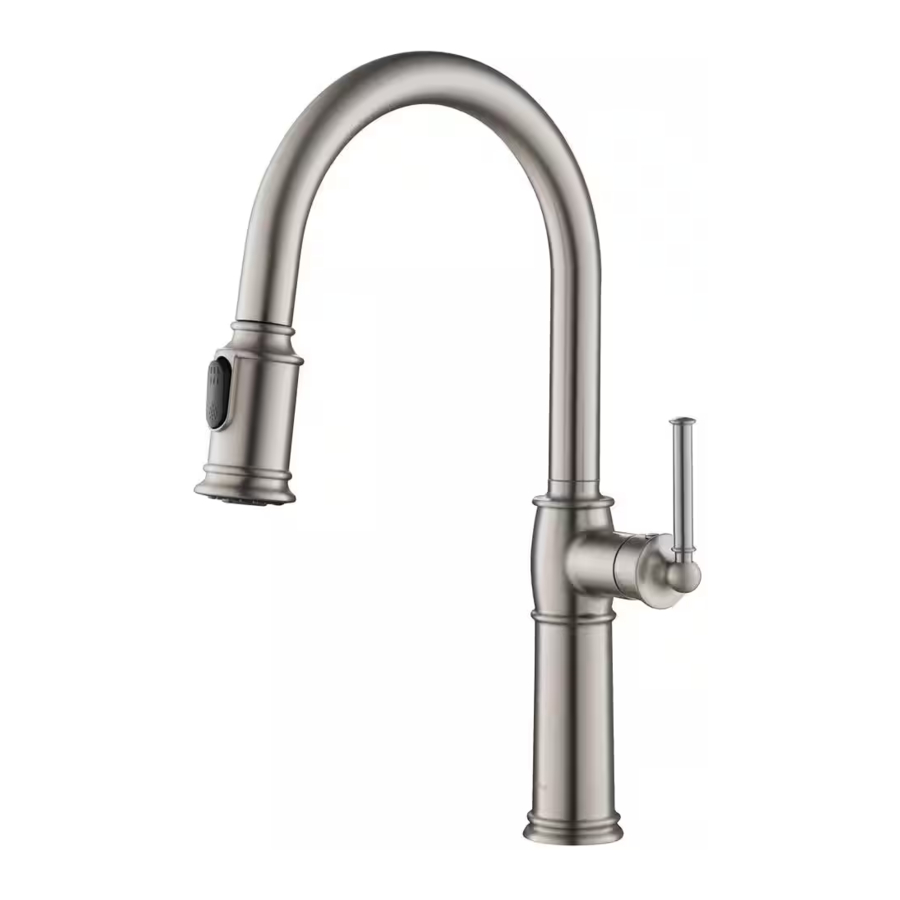

Kraus Sellette KPF-1682 Manual

Prior to Installation

• Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement.
• Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. Remove existing faucet. Clean sink or countertop to remove any debris, plumber's putty, or silicone.
• Flush angle stops to release any debris prior to installation.
• Pre-drilled hole size requirement: 1 3/8" (min) - 1 1/2" (max)
• Max countertop thickness: 1 3/8"
• 1, 2 or 3 hole installation

For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or customerservice@kraususa.com

1. Spray Head
2. Faucet Body
3. Deck Plate Assembly

1. Deck Plate
2. Base Plate

4. Mounting Hardware

1. Rubber Washer
2. Metal Washer
3. Mounting Nut
4. Mounting Screws

5. Spray Hose
6. Weight
7. Quick Connector
8. Hot and Cold Waterlines
9. Hex Wrench
10. Washer
11. Base O-Ring

Tools you will need

Faucet Installation Procedure

Installer Tip:
Shut off main water supply before installing new faucet.

1. 1. Faucet installation - with deck plate
      For three-hole installation: Deck plate (3A), base plate (3B), and silicone sealant (optional) are required.

   2. Faucet installation - without deck plate
      For single-hole installation:
      Deck plate (3A), base plate (3B) and silicone sealant are NOT required.

2. Install faucet and mounting hardware
   Insert faucet body (2) into hole in countertop or deck plate assembly (3). Install mounting hardware (4A, B &C) from underneath the countertop.

3. Secure mounting hardware
   Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (4B) until snug.
   Tighten mounting screws (4C) to nut with a Phillips screwdriver until snug.

4. Attach spray hose and counterweight
   Connect spray hose (5) to quick connector (7) attached to supply line. Install weight (6) on lowest vertical point on spray hose (5).

5. Connect waterlines
   Connect waterlines (8) to angle stops. Tighten both ends of waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks.
   NOTE: Make sure filter washers are installed.

6. Flush spray hose
   Remove spray head (1) from spray hose (5). Hold tip of spray hose (5). Turn faucet on and let the water run for 60 seconds to flush any debris.
   NOTE: Please make sure washer (10) is installed attaching spray head to hose.

7. Check for leaks
   Check for leaks at the connections. Retighten if necessary.


Replacement Parts

*Denotes faucet component color options:
CH - Chrome
SFS - Spot Free Stainless Steel
ORB - Oil Rubbed Bronze
BL - Black GR - Grey

Trouble-Shooting

If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

Care & Maintenance

To keep the product clean & shining, follow the steps below:

1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary

This installation manual is subject to change without further notice.

Maintenance - Cartridge Replacement

1. Remove button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand.

2. Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.

3. Place the new cartridge in the handle seat. Secure the cartridge with the locking nut and assemble the handle.
