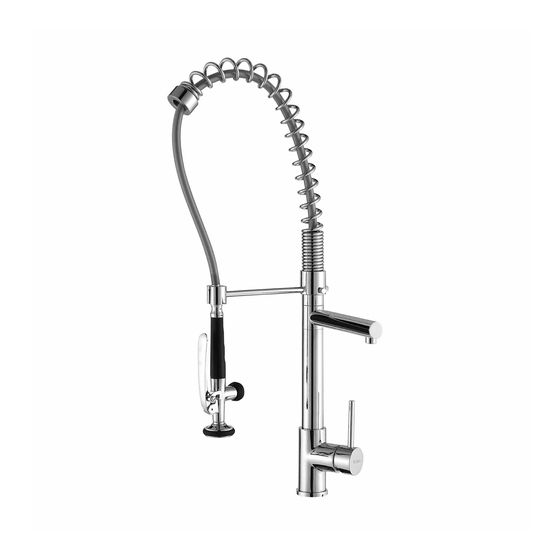

- Page 1 I N S TA L L AT I O N MA N UA L Single Lever Pull Out Kitchen Faucet KPF-1602 www.kraususa.com I toll free: 1.800.755.0703 I © 2013-2014 Kraus USA Inc.
-
Page 2: Prior To Installation
Congratulations on your new Kraus purchase! We would like to take this opportunity to thank you for your business with Kraus USA. It is our sincere hope that you are completely satisfied with your Kraus experience. We welcome any questions or comments you may have, and look forward to assisting you in the future. - Page 3 KPF-1602 Diagram and Parts List Included Parts: 1. Faucet Body 2. Base 3. Base O-Ring 4. Plastic Washer - Optional (Top Mount Sinks Only) 5. Rubber Washer 6. Metal Washer 7. Mounting Nut 8. Mounting Screws (2) 9. Spray Head 10.
-
Page 4: Dimension Drawings
Dimension Drawings 7 5/8” 7 5/8” 8 17/32” 8 17/32” Ø35~Ø38 Ø35~Ø38 Ø1 3/8~Ø1 1/2” Ø1 3/8~Ø1 1/2” Cold Water Cold Water Hot Water Hot Water Safety Tips • If soldering the water connections when installing the faucet, remove the O-rings, cartridges, and washers before applying any heat •... -
Page 5: Installation Method
Ø35~Ø38 Ø1 3/8~Ø1 1/2” Cold Water Hot Water Faucet Installation Procedures Installation Method 1 When possible, the minimum distance between the faucet hole 7 5/8” and the wall should be 3.5”. Ø35~Ø38 Ø1 3/8”~ Ø1 1/2” Ø35~Ø38 30˚ Ø1 3/8~Ø1 1/2” Cold Water Installation Method 2 (optional) If circumstances require the... - Page 6 Step 1 Remove the mounting screws (8), mounting nut (7), metal washer (6), rubber washer (5), and plastic washer (4) from Ø35~Ø38 the main faucet (1). The base Ø1 3/8”~ Ø1 1/2” (2) and base O-ring (3) should remain on the faucet body. Step 2 Insert faucet body into the hole on the deck with the base (2)
- Page 7 Step 3 After adjusting the direction of the faucet body (1), tighten the mounting nut (7) until snug and tighten the mounting screws (8) to the nut with a Phillips head screwdriver until snug. Step 4 Close 25˚ Situate the sprayer holder (12) Left Open onto the faucet body (1), then...
- Page 8 Step 5 Tighten the hexagon nut of sprayer hose (10) with a wrench until snug. Insert the spring (11) into sprayer holder (12). Hexagon Nut After adjusting the direction of sprayer holder (12) to the desired location, tighten thumb screws (13). Connect sprayer (9) to the sprayer hose (10);...
-
Page 9: Care And Maintenance
Water Water agon Nut Usage How to operate the handle: Cold Raise the lever handle to turn on Water Water Close Cold 25˚ 90˚ the water. Push down to turn off. Water Water Push Turn the lever handle to the left Left to increase hot water flow, turn Open... -
Page 10: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Locking nut has come Unscrew the lever on... - Page 11 Limited Lifetime Warranty KRAUS is proud to offer its customers the strongest, most durable ceramic cartridges in all of its solid brass Lavatory Faucets. KRAUS guarantees that all of its products are free of defect in materials and craftsmanship. All KRAUS BRAND Lavatory Faucets carry a limited lifetime warranty from the original date of purchase.
