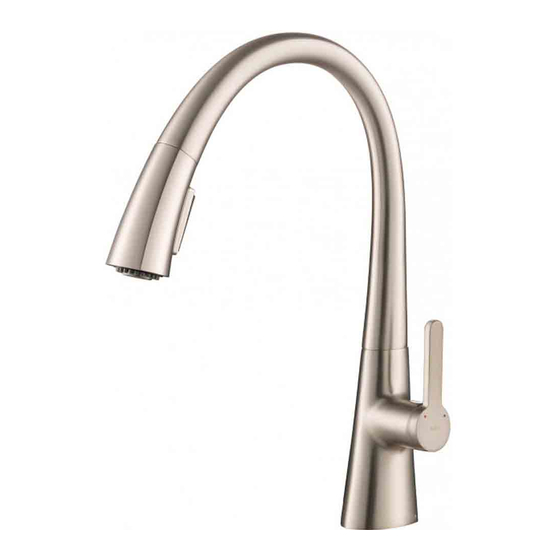

Kraus Nolen KPF-1673 Installation Manual
Single handlepull-down kitchen faucet
Hide thumbs
Also See for Nolen KPF-1673:
- Installation manual (15 pages) ,
- Installation manual (15 pages)
Related Manuals for Kraus Nolen KPF-1673
Summary of Contents for Kraus Nolen KPF-1673
- Page 1 INSTALLATION MANUAL Nolen Single Handle Pull-Down Kitchen Faucet KPF-1673 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. April 6, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 Copper Lines A. Cold B. Hot 9. Hex Wrench 10. Washer 11. Hot & Cold Waterlines For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or customerservice@kraususa.com...
- Page 5 Faucet Installation Procedure 11 1/2" 3 7/8" (291mm) (99mm) 9 1/8" (232mm) 2 1/4" (57mm) 2X G1/2" Ø 1 3/8" (35mm) 2 3/4" (70mm) 10 3/8" (264mm) 1/2" (12mm) * Optional Deck Plate Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Remove mounting hardware Remove the mounting screws (4C), mounting nut (4B), and rubber & metal washer (4A) from the mounting pipe. Step 2A. Faucet installation - with deck plate For three-hole installation: Deck plate (3A), base plate (3B), and silicone sealant (optional) are required.
- Page 7 Step 2B. Faucet installation - without deck plate For single-hole installation: Deck plate (3A), base plate (3B), and silicone sealant are NOT required. Step 3. Install faucet and mounting hardware Insert faucet body (2) into hole in countertop or deck plate assembly (3).
- Page 8 Step 4. Secure mounting hardware Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (4B) until snug. Tighten mounting screws (4C) to nut with Phillips screwdriver until snug. Step 5. Attach spray hose and counterweight Connect spray hose (5) to quick connector (7) attached to supply line.
- Page 9 Step 6. Connect waterlines Connect waterlines to hot and cold copper lines (8). Connect waterlines (12) to angle stops. Tighten both ends of waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks. NOTE: Check the filter washer in the waterlines before connecting to the angle stops.
-
Page 10: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Spray Head SFS, CH* KP06091 2. Check Valve KP06105 3. Spray Hose SFS, CH* KP06098 4. Hose Guide KP06045 5. Spout Clip KP06292 SFS, CH* KP06000 6. Metal Handle BL, GR* KP06026 7. -
Page 11: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Remove button located at top of handle. cartridge needs to be reseated. - Page 12 Maintenance - Cartridge Replacement Step 1: Remove button located at the top of the cartridge cover. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand. Step 2: Unscrew the locking nut with an adjustable wrench.
- Page 13 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 14 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
