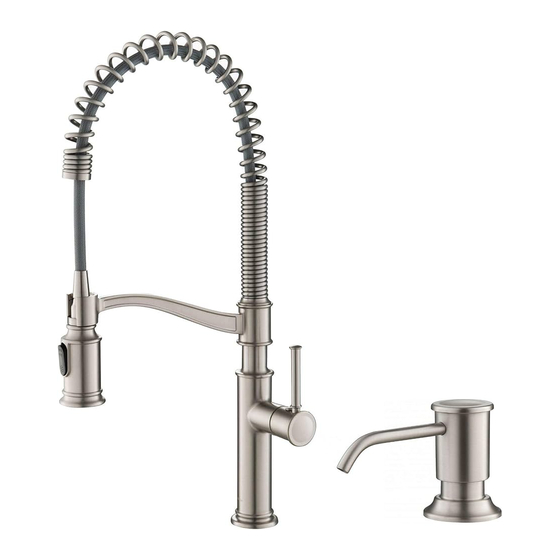

- Page 1 INSTALLATION MANUAL Sellette Single Handle Commercial Style Pull-Down Kitchen Faucet KPF-1683 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. April 6, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Make sure you have all necessary parts by checking the diagram and parts list. If any · part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, parts, and ·... - Page 4 Diagram and Parts List...
-
Page 5: Tools You Will Need
Phillips Screwdriver Hot and Cold Nylon Waterlines Cold Hex Wrench 10. Base O-Ring Safety Goggles For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or customerservice@kraususa.com... - Page 6 Faucet Installation Procedure 4 5/8" 10 3/4" (117mm) (273mm) 8 5/8" (220mm) 2 1/4" (57mm) 3/8" Compression Ø 1 1/2" (37mm) 2 1/2" (64mm) 10 3/8" (265mm) 1/2" (13mm) * Optional Deck Plate Installer Tip: Shut off main water supply before installing new faucet.
- Page 7 Step 1A. Faucet installation - with deck plate For three-hole installation: Deck plate (3A), base plate (3B), and silicone sealant (optional) are required. Step 1B. Faucet installation - without deck plate For single-hole installation: Deck plate (3A), base plate (3B) and silicone sealant are NOT required.
- Page 8 Step 2. Install faucet and mounting hardware Insert faucet body (2) into hole in countertop or deck plate assembly (3). Install mounting hardware (4A, B, C & D) from underneath the countertop. Step 3. Secure mounting hardware Adjust direction of faucet body (2) so that handle is on right side of faucet.
- Page 9 Step 4. Attach spray hose and counterweight Connect spray hose (5) to quick connector (7) attached to supply line. Install weight (6) on lowest vertical point on spray hose (5). Step 5. Connect waterlines Connect waterlines (8) to angle stops. Tighten both ends of waterlines with a wrench until snug.
- Page 10 Step 6. Flush spray hose Remove spray head (1) from spray hose (5). Hold tip of spray hose (5). Turn faucet on and let the water run for 60 seconds to flush any debris. NOTE: Please make sure washer is installed attaching spray head to hose.
-
Page 11: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # KP06092 Spray Head CH,SFS,ORB* KP06105 Check Valve KP06074 Washer KP06186 CH,SFS,ORB* Spray Hose KP06187 Inverter KP06030 Handle Button CH,SFS,ORB* KP06055 Set Screw KP06043 Metal Handle CH,SFS,ORB* KP06021 Cartridge Cover CH,SFS,ORB* KP06018 10. Locking Nut 11. -
Page 12: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Locking nut has come loose or Remove button located at top of handle. Leakage under faucet handle cartridge needs to be reseated. - Page 13 Maintenance - Cartridge Replacement Step 1: Remove button located at the top of the handle. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand. Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.
- Page 14 (5) years from the date of purchase. Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus.
- Page 15 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
