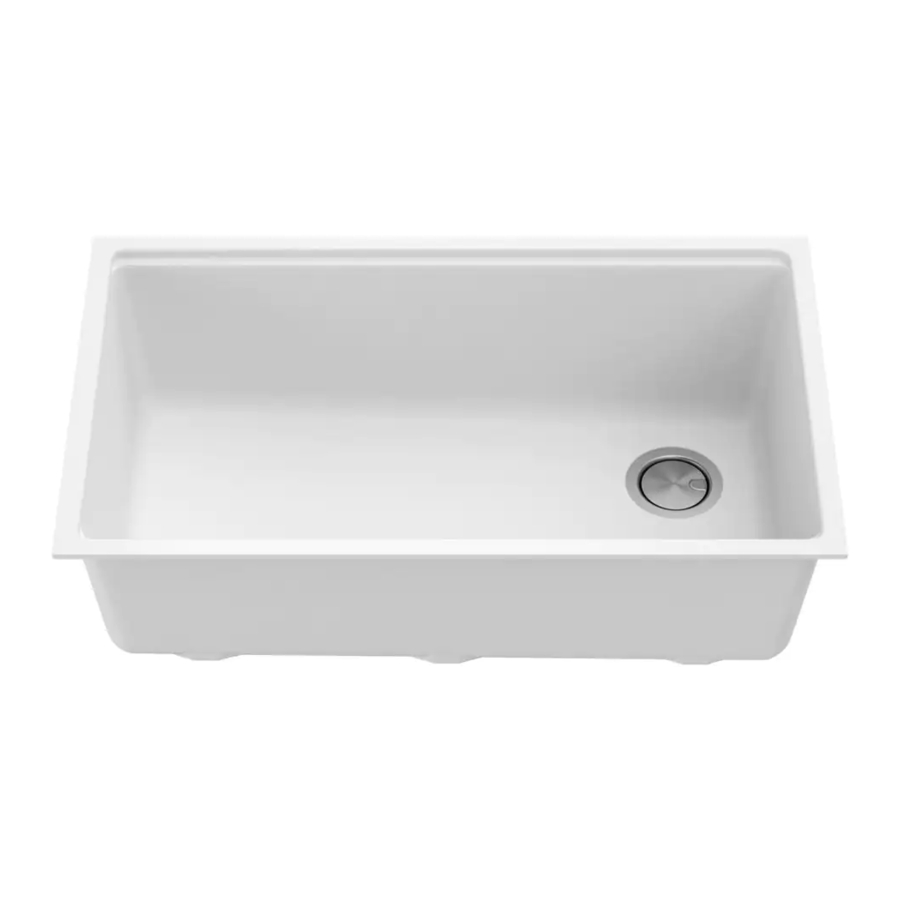

Kraus Bellucci Series, KGUW1-30, KGUW1-33, KGUW2-30, KGUW2-33 Manual

Introduction

Tools you will need

NOTE: Specialized tools may be necessary to install Kraus Quartz Composite Kitchen sinks with^R countertop materials other than wood, marble or granite.

Parts List

KGUW1-30

• Cut-Out Template
• Mounting Hardware
• Strainer ST-4
• Cutting Board KCB-WS301SA
• Rolling Mat KRM-11BL

KGUW1-33

• Cut-Out Template
• Mounting Hardware
• Strainer ST-4
• Cutting Board KCB-WS301SA
• Rolling Mat KRM-11BL

KGUW2-30

• Cut-Out Template
• Mounting Hardware
• Strainer ST-4
• Cutting Board KCB-WS301SA
• Rolling Mat KRM-11BL

KGUW2-33

• Cut-Out Template
• Mounting Hardware
• Strainer ST-4
• Cutting Board KCB-WS301SA
• Rolling Mat KRM-11BL

Hardware

(Included)

Replacement parts list
KP31003 - Undermount Clips (10 hooks)

• Instructions may vary depending on countertop material. Read all instructions carefully, and ensure that counters are compatible with sink installation before proceeding.
• Follow the plumber's code and builder's code effective in your area.
• Shut off water valves prior to installation.
• Open sink packaging and verify that the sink is in perfect condition. Put sink back into packaging to protect it until time of installation.
• To replace an existing sink, make sure that the cut-out hole in the counter is of an adequate size to fit the new sink.

Dimensions

Model #: KGUW1-30
Sink Dimensions: 29" x 19" x 10"
Min Cabinet Size: 33"

Model #: KGUW1-33
Sink Dimensions: 32" x 19" x 10"
Min Cabinet Size: 36"

Model #: KGUW2-30
Sink Dimensions: 29" x 19" x 10"
Min Cabinet Size: 33"

Model #: KGUW2-33
Sink Dimensions: 32" x 19" x 10"
Min Cabinet Size: 36"

Installation

1. Determine Reveal Type
   • Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flushed Reveal)
     KRAUS^® Recommended Installation Type

2. Position Template

   • Check the cut-out template against the actual sink to ensure a proper sized cut-out.
   • Place the cut-out template in the desired location on the countertop.

NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.

3. Trace Template
   • Trace template on countertop with a pencil.

4. Cut Countertop
   • Cut the opening in the countertop by carefully following the traced line.


     To avoid the risk of personal injury, wear safety glasses and cut resistant gloves with non-slip grip when cutting.

     NOTE: Please use the appropriate saw that best fits your countertop material.
5. Set up Mounting Brackets

   • Turn countertop over and align sink with countertop. Decide location for mounting brackets around the frame at a distance of about 1/4" (6.4mm) from the edge.
   • Mounting holes should be 1/4" from the edge of the sink.
6. Drill Hole in Countertop

   • Use 15/64" drill bit to drill the fixation holes at a depth of 3/8" in the indicated location.

     To avoid the risk of personal injury, wear safety glasses and cut resistant gloves with non-slip grip when drilling.
7. Install Anchors
   • Add adhesive (optional) in the holes and then insert anchors into drilled holes and lightly tap with a hammer until flush.

8. Secure Sink to Countertop
   • Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly.

9. Attach Mounting Hardware

   NOTE: Use rubbing alcohol to remove any excess sealant.

   • Attach mounting hardware to secure bowl. Remove excess sealant from inside lip.
   • Allow sealant to set for 30 - 60 minutes.
10. Install Plumbing Fixtures

    • Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions.
    • Run water into sink and check for leaks.

Cleaning & Maintenance

Clean your sink on a regular basis with warm soapy water. Rinse the sink after using cleaning products. Wipe the sink surface with a soft cloth to remove any liquid residue. Do not cut food directly on the surface of the sink. Do not leave sharp objects on the surface of the sink for an extended period of time. Do not use abrasive cleaning products, sanding tools, steel wool or bleaching products as use of such products may affect product performance or void the warranty.

Prior to Installation

• Make sure that you have all necessary parts by checking the parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement
• Inspect the sink prior to installation to make sure that it has not been damaged during shipping
• Use the cut-out template provided by Kraus
• Observe all plumbing and building codes according to your state requirements
• Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.

For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or customerservice@kraususa.com

How to Make a Warranty Claim
If you are a consumer purchaser, please contact a Kraus Customer Service Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
Customerservice@kraususa.com
If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
Proservice@kraususa.com
If you are an authorized partner, please contact a Partner Support Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
Partnersupport@kraususa.com
