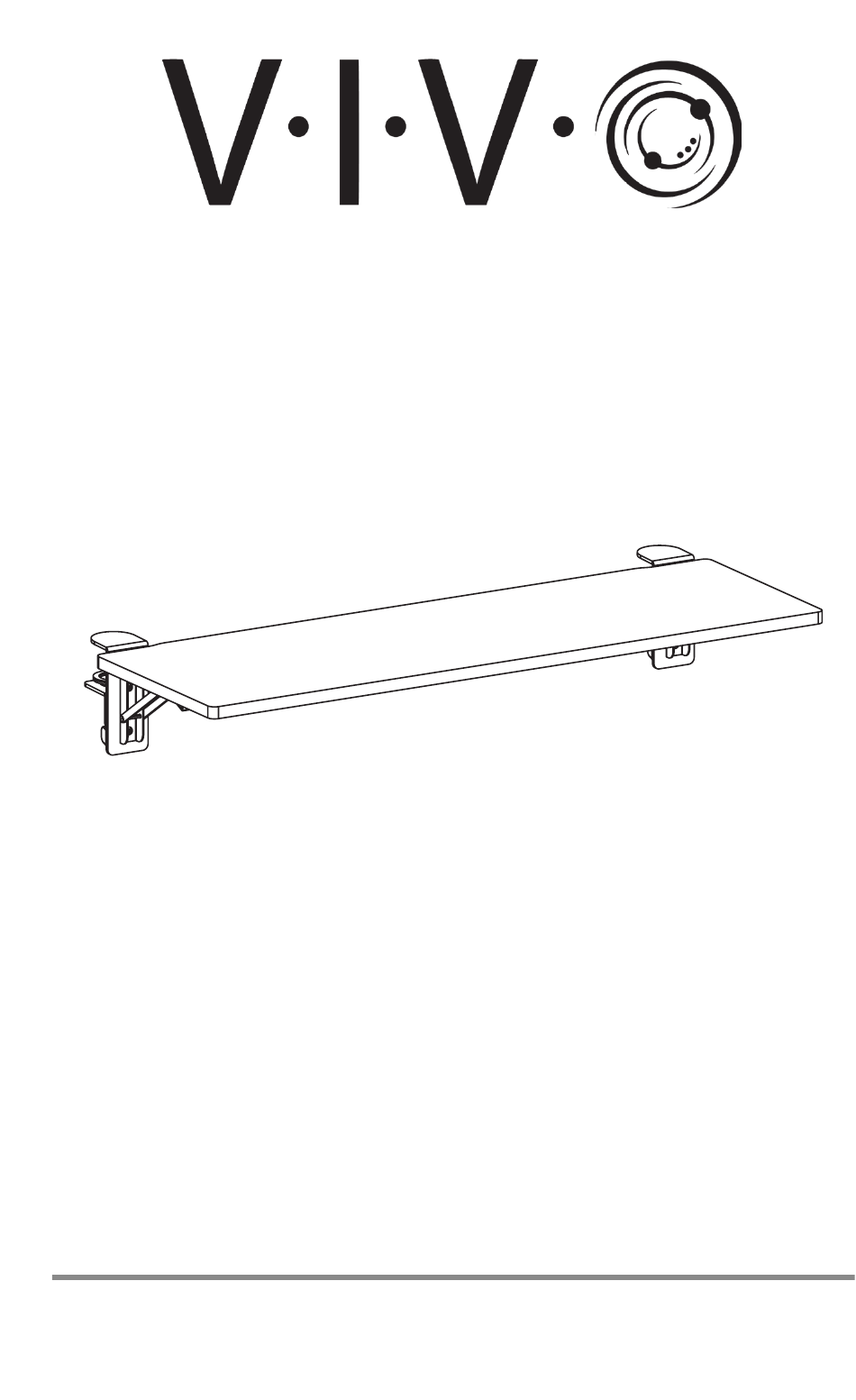

- Page 1 Clamp-on 36” x 12” Desk Extension DESK-EXT36 Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x1) Panel B (x2) C (x2) Clamp Support Bracket Included Hardware & Tools S-A (x6) S-B (x4) M5x12mm M6x6mm Screw Screw Tools Needed: Phillips Screwdriver Weight Capacity: 44lbs (20kg) -
Page 4: Assembly Steps
Assembly Steps STEP 1 Unfold the Support Brackets (B). STEP 2 Attach the Support Brackets (B) to the Panel (A) using M5x12mm Screws (S-A) and a Phillips screwdriver. - Page 5 Determine Your Desktop Thickness ≤1.8” 1.25-3.5” ≤(46.5mm) (32-88.5mm) Thinner Desktops Thicker Desktops For Desktops 1.8” thick or less (≤46.5mm) For Desktops 1.25-3.5” thick (32-88.5mm) Proceed to Step 4 on Page 6 Follow Step 3 below to adjust Clamp STEP 3 Adjusting the Clamp for Thicker Desktops For Desktops 1.25-3.5”...
- Page 6 STEP 4 Attach the Clamps (C) to the Support Brackets (B) using M6x6mm Screws (S-B) and a Phillips screwdriver. STEP 5 Attach the assembly to the edge of desktop and secure by tightening the Clamp Bolts (C2). - Assembly Complete! -...
- Page 7 Folding and Raising the Panel Fold the Panel (A) down by pressing both Levers on Support Brackets (B) and easing the Panel to its lowest position. Raise it back up by lifting the Panel until both Support Brackets lock into place. Lever **PINCH POINT WARNING** DO NOT place hands in or around...
- Page 8 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
