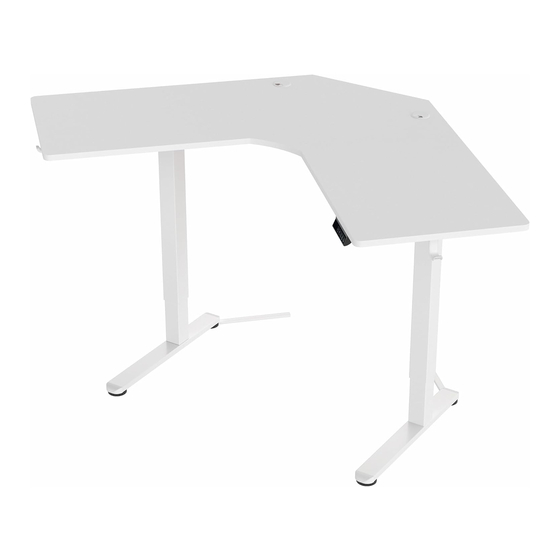

47" x 47" Corner Electric Desk
Instruction Manual
SKU: DESK-E1L94 Series
DESK-E1L94B
DESK-E1L94C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e1l94b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
DESK-E1L94N
DESK-E1L94W
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-E1L94 Series
Summary of Contents for Vivo DESK-E1L94 Series
- Page 1 47" x 47" Corner Electric Desk Instruction Manual SKU: DESK-E1L94 Series DESK-E1L94B DESK-E1L94N DESK-E1L94C DESK-E1L94W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e1l94b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Assemble Left Crossbar (F) to Left Leg (K) and Right Crossbar (G) to Right Leg (J) using M6x11mm Screws (S-B) and 5mm Allen Wrench (T-B). STEP 2 Mount Left Side Bracket (L) to Left Leg (K) and Right Side Bracket (M) to Right Leg (J) using M6x11mm Screws (S-B) and 5mm Allen Wrench (T-B).
- Page 4 STEP 4 Use Crossbar Connector (H) to connect Left Crossbar (F) and Right Crossbar (G) using M6x11mm Screws (S-B) and 5mm Allen Wrench (T-B). STEP 5 Flip assembly over. Loosen the knob on Sync Rod (D) and extend the hex shaft. Insert the hex shaft into Left Leg (K), making sure the metal retaining ring makes contact with the leg.
- Page 5 STEP 6 Insert Anti-Vibration Pads (T) into the frame assembly as shown below. STEP 7 Assemble Left Panel (A), Middle Panel (B), and Right Panel (C) using Connecting Plates (E) with M5x16mm Screws (S-A), and a Phillips screwdriver.
- Page 6 STEP 8 Attach desk frame assembly to desktop assembly using M5x16mm Screws (S-A) and a Phillips screwdriver. Next, attach Shelf Brackets (P), Hooks (Q), and Control Panel (O) to desktop using M5x16mm Screws (S-A) and a Phillips screwdriver. STEP 9 Connect AC Adapter (N) and the cable from Right Leg (J) to Control Panel (O).
- Page 7 STEP 10 For added stability, Foot Extensions (R) can be added to the back of Feet (S). To do, remove the pads from the Feet (S), as shown below. Install Foot Extensions (R) with M8x16mm Screws (S-D) and 5mm Allen Wrench (T-B).
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
