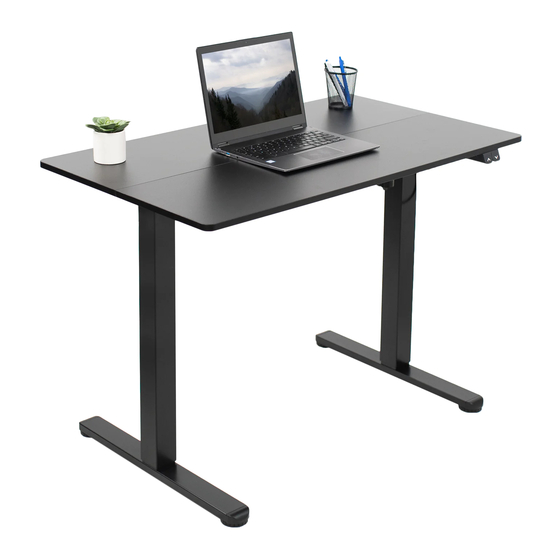

Black 40" x 24" Electric Desk
Instruction Manual
SKU: DESK-EP40TB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-ep40tb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-EP40TB
Summary of Contents for Vivo DESK-EP40TB
- Page 1 Black 40" x 24" Electric Desk Instruction Manual SKU: DESK-EP40TB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-ep40tb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Tools Needed
TOOLS NEEDED Level Phillips Drill Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (80kg) -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Crossbar (B) to Leg (E) and Motorized Leg (F) using M8x47 Screws (S-A) and 5mm Allen Wrench (T-C). M8×47mm(x4) S=5mm S=5mm Place Feet (G) on top of Legs (E, F) and attach using M6x35 Screws (S-C) and 5mm Allen Wrench (T-C). Screw Foot Pads (J) into Feet (G). - Page 5 STEP 2 Mount Side Brackets (C) to Legs (E, F) using M6x10 Screws (S-B) and 4mm Allen Wrench (T-B). Loosen the nut on Sync Rod (D), then insert the rod into Leg (E) and extend to Motorized Leg (F) and retighten the nut.
- Page 6 STEP 3 Assemble both halves of Desktop (A) using Connecting Plates (H) and M5x16 Screws (S-D). Tighten using Phillips screwdriver. Place desk frame assembly upside down on top of Desktop (A) and secure using M5x16 Screws (S-D). M5×16mm(x12) M5×16mm(x10)
- Page 7 STEP 4 Mount the control panel on Motorized Leg (F) to Desktop (A) using M5x16 Screws (S-D). Connect the AC Adapter (I) to the cable from the Motorized Leg (F), then plug the AC Adapter (I) into a wall outlet to power on the desk for operation.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
