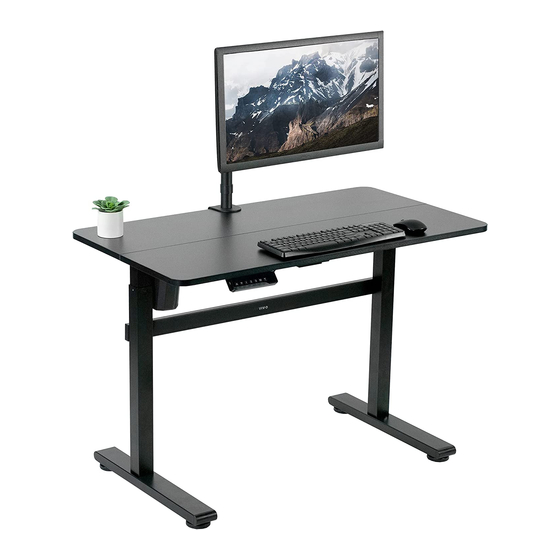

Black 43" x 24" electric desk

Advertisement

Quick Links

Black 43" x 24" Electric Desk
Instruction Manual
SKU: DESK-E143TB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e143tb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-E143TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo DESK-E143TB

  • Page 1 Black 43" x 24" Electric Desk Instruction Manual SKU: DESK-E143TB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e143tb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
  • Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 110lbs Failure to do so may result in serious injury. (50kg) Level Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Assemble the feet (B) to the motorized and non- motorized legs (A, D) using M6x16 bolts (S-B).
  • Page 4 STEP 2 Attach the support bar (E) to the back of the legs using M6x12 bolts (S-A), and the crossbar (F) to the side brackets using M5x60 bolts (S-D). Tighten with the 4mm Allen wrench (S-K). STEP 3 Loosen both knobs on the sync rod (I) and slide the right end socket onto the hex rod for the motorized leg (D), making sure the sync rod meets the red bumper on the motor hex shaft.
  • Page 5 STEP 4 Hang the Adapter Holder (K) over the Crossbar (F) and tighten thumb screws. Remove adhesive protection film from the Silicone Pads (S-H) and place pads on the assembly as shown. Join the desktop halves (H,G) with Wooden Dowel Pins (S-M) until there is no gap between halves, then attach Connecting Plates (J) using ST4.2x13 Screws (S-F) and tighten with a Phillips screwdriver.
  • Page 6 STEP 6 Connect the AC Adapter (L) and motor cable to the Controller (N). Connect Power Cord (M) to the AC Adapter (L). Organize cables using the adhesive Cable Clips (S-J). The cable clips may optionally be secured using ST3.5x13 Screws (S-G) and a Phillips screwdriver. STEP 7 If necessary, adjust the foot pads on the bottom of the Feet (D) to level the desk.
  • Page 7 CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit. motion free of balanced for correct cables to allow for full obstacles. operation and longer range of vertical motion. life of components. Failure to follow these instructions may result in property damage and/or personal injury.
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
