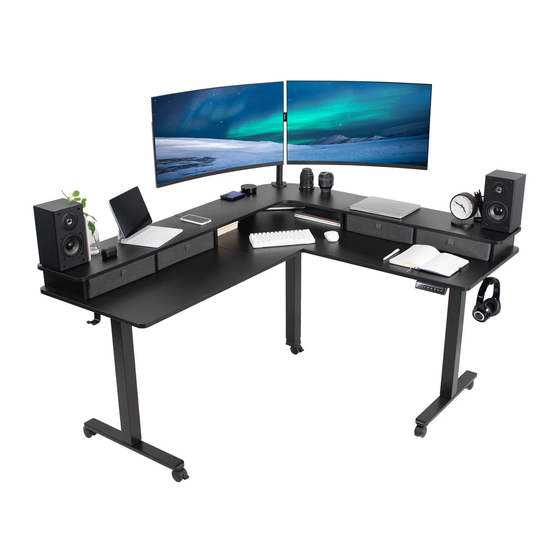

2 Tier 63" x 55" Corner Electric Desk with Storage
SKU: DESK-E3CVB/C/D/N/W
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-e3cvb
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-E3CVB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-E3CVB

Summary of Contents for Vivo DESK-E3CVB

  • Page 1 2 Tier 63” x 55” Corner Electric Desk with Storage SKU: DESK-E3CVB/C/D/N/W Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-e3cvb www.vivo-us.com...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...

  • Page 3: Electrical Warning

    Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense.

  • Page 4: Package Contents

    TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver Level PACKAGE CONTENTS 1 (x1) 2 (x1) 3 (x1) 4 (x1) 5 (x1) Corner Panel Right Panel Left Panel Corner Shelf Panel Left Shelf Panel 6 (x1) 7 (x8) 8 (x1) 9 (x1) 10 (x2) Right Shelf Panel Shelf Divider Short Corner...

  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1: Assemble Legs Connect Left Crossbar (12) to Left Leg (20) and Angled Right Crossbar (15) to Right Leg (18) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B). Attach Right Crossbar (14) and Short Left Crossbar (13) to Motorized Leg (19) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B).
  • Page 6 STEP 2: Secure Side Brackets and Feet Attach Side Brackets (17) to Right Leg (18) and Left Leg (20) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B). Asemble Feet (24) to Right and Left Leg (18, 20) using M6x35mm Screws (S-B) and 5mm Allen Wrench (T-B).
  • Page 7 STEP 3: Install Casters (Optional) and Anti-Vibration Pads Optionally, Foot Pads (24A) can be swapped out for Locking Casters (31). Unscrew Foot Pads (24A) and thread Locking Casters (31) into Feet (24) using Wrench (T-C). Insert Anti-Vibration Pads (28) into the frame assembly along with Short Connector Bracket (21) and Long Connector Bracket (22).
  • Page 8 STEP 4: Assemble Desktop and Install Connector Brackets Assemble Corner Panel (1), Right Panel (2), and Left Panel (3) using Desktop Connectors (23) and M5x16mm Screws (S-C) and a Phillips screwdriver. Connect the frame assembly using Short Connector Bracket (21) and Long Connector Bracket (22) with M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B).
  • Page 9 STEP 5: Secure Frame and Desktop Secure the frame assembly with Control Panel (25) and Hooks (30) to the desktop assembly using M5x16mm Screws (S-C) and a Phillips screwdriver. 25 (x1) 30 (x2) S-C (x28) Control Panel Hook M5x16mm Screw...
  • Page 10 STEP 6: Install Sync Rods Loosen the coupling nut on Sync Rods (16) and insert hex shaft into Left and Right Legs (18, 20), making sure the metal retaining ring makes contact with the legs. Ensure that all three legs are the same height.
  • Page 11 STEP 7: Install Sync Rods (Continued) Extend Sync Rods (16) onto Motorized Leg (19) and tighten the nuts. Tighten both set screws on the end of Sync Rods (16) using the 2mm Allen wrench (T-B). T-A (x1) 2mm Allen Wrench...

  • Page 12: Step 8: Connect Power Cables

    STEP 8: Connect Power Cables Connect AC Adapter (26) and cable from Motorized Leg (19) to Control Panel (25). If needed, use Extension Cable (27) for cable from Motorized Leg (19) to extend length. Use Cable Clips (29) to secure cables to desktop. 26 (x1) 25 (x1) 27 (x1)
  • Page 13 STEP 9: Install Shelf Panels Assemble Shelf Dividers (7), Short Corner Shelf Panel (8), Long Corner Shelf Panel (9), and Rear Shelf Panels (10) to the desktop assembly using M4.2x35mm Screws (S-D) and a Phillips screwdriver using all locations shown below. 7 (x8) 8 (x1) 9 (x1)
  • Page 14 STEP 10: Assemble Shelves Insert Cam Lock Screws (S-E) using a Phillips screwdriver and Wooden Dowels (S-G) into Corner Shelf Panel (4), Left Shelf Panel (5), and Right Shelf Panel (6). Place the Shelf Assembly on top of the divider assembly. 4 (x1) 5 (x1) 6 (x1)
  • Page 15 STEP 11: Assemble Shelves Continued (Continued) Insert Cam Lock Nuts (S-F) into Shelf Dividers (7), Short Corner Shelf Panel (8), Long Corner Shelf Panel (9), and Rear Shelf Panels (10) making sure arrow is facing up. Using a Phillips screwdriver, turn Cam Lock Nuts (S-F) clockwise to secure the shelf assembly in place. Unfold Drawers (11) and place drawer insert inside.
  • Page 16 STEP 12: Install Drawers Slide Drawers (11) into the shelf assembly.

  • Page 17: Troubleshooting

    CONTROLLER - USER MANUAL Memory Presets Press any number and the desk will return to the programmed height. See Programing Memory Presets to program presets. Arrow Keys Press and hold the UP arrow for the desk to begin raising. Release when desk reaches desired height.
  • Page 18 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...

  • Page 19: Need Assistance

    Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
  • Page 20 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 11/10/2022 REV2LF...
