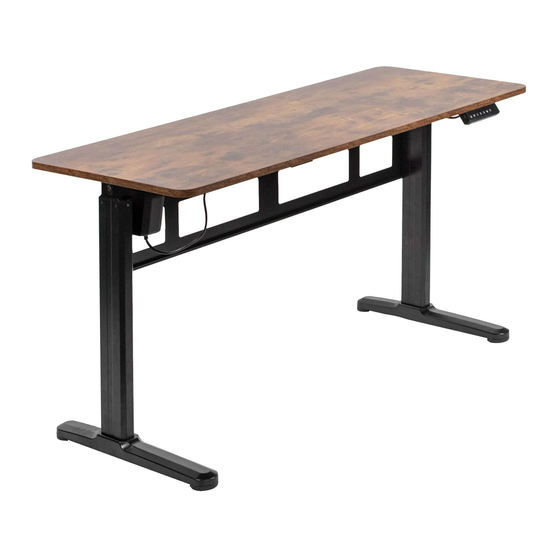

White 55" x 24" Electric Desk
Instruction Manual
SKU: DESK-E155TW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e155tw
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-E155TW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-E155TW

Summary of Contents for Vivo DESK-E155TW

  • Page 1 White 55" x 24" Electric Desk Instruction Manual SKU: DESK-E155TW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e155tw GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Electrical Safety Instructions

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.

  • Page 3: Tools Needed

    Drive Rod TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 88lbs Failure to do so may result in serious injury. (40kg) Level Drill ASSEMBLY STEPS STEP 1 Insert the left (short) end of the drive rod (A) into the right side of a lifting column (C). Slide the motor (B) onto the right (long) end of the drive rod, using the 8mm Allen wrench (S-K) to align the sockets if needed, and secure to the column using the M5x8 Phillips head screws (S-E) with a Phillips screwdriver.
  • Page 4 STEP 2 Place the desktop (D) upside down on a flat surface. Assemble the lifting columns (C) to the desktop using x6 M6x35 Phillips head screws (S-C) with washers (S-F) and tighten with a screwdriver. Phillips Sc rewd rive r S- C S- F STEP 3...
  • Page 5 STEP 4 Attach the adapter holder (G) and x3 silicon pads to the upper crossbar (F). Mount the upper crossbar to the lifting columns using M5x60 hex head screws S- H 4m m (S-B) and tighten using the 4mm Allen wrench (S-I). S- I S- B S- H...
  • Page 6 STEP 7 Slide the AC adapter (H) into the adapter holder, making sure the connector cable is on the same side as the controller. STEP 8 Connect the AC adapter to the controller, then connect the controller to the motor. Plug the power cord (J) into the AC adapter.
  • Page 7 STEP 9 Carefully flip the assembled desk right side up and plug the power cord into an AC electrical outlet. If necessary, adjust foot pads to level the desk. The desk is now ready for use. Please refer to the Controller User Guide for operational instructions. Bubble Level Bu bb le L ev el CAUTION!
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
