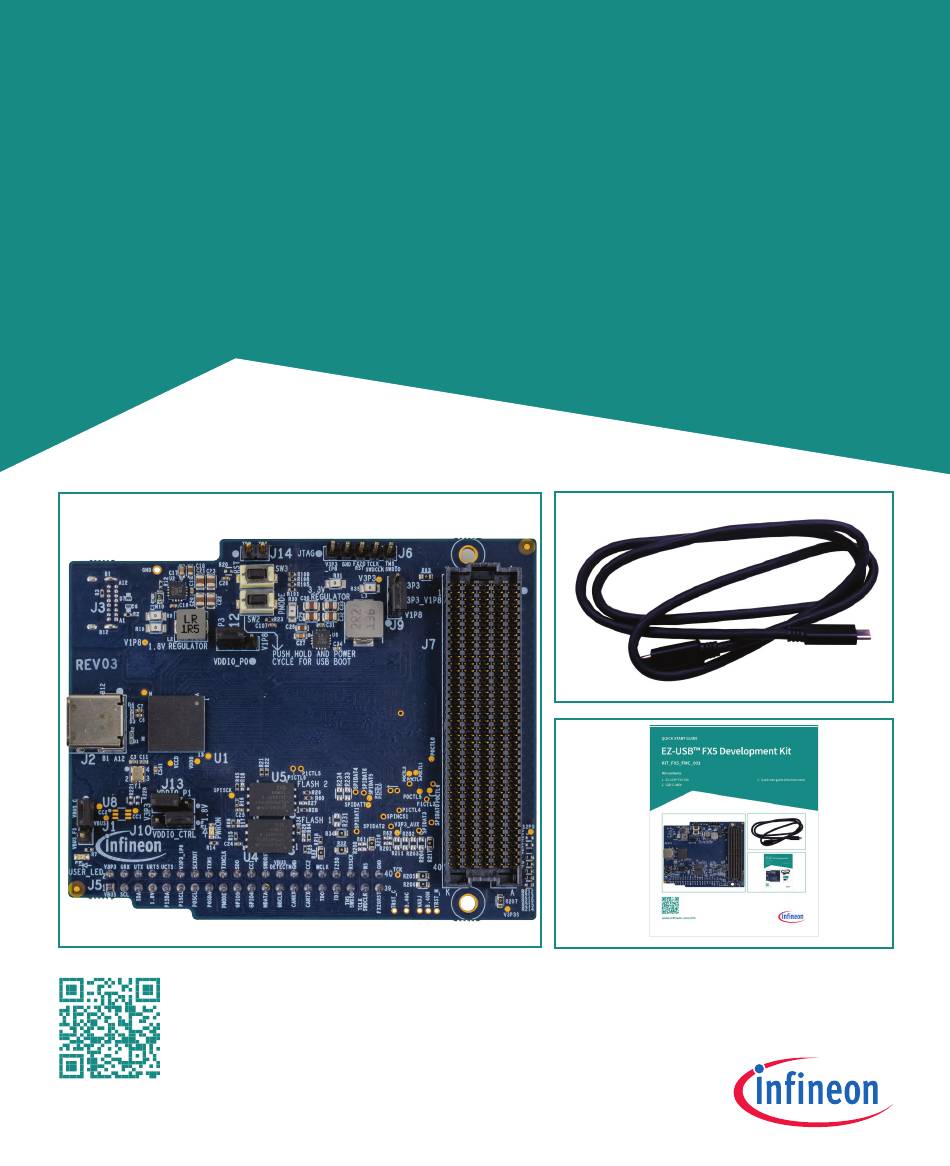

- Page 1 QUICK START GUIDE EZ-USB™ FX5 Development Kit KIT_FX5_FMC_001 Kit contents 1. EZ-USB™ FX5 DVK 3. Quick start guide (this document) 2. USB-C cable www.infineon.com/FX5...
- Page 2 Before you start 1. Ensure that you have a PC with USB-C port that supports USB 3.2 Gen 1 or higher data transfer. 2. Ensure that the jumpers are set to the following: Jumper Position Kit connected to PC via USB-C cable and power on LED glows green Step 1: Connect and power up the board Connect the kit connector (J2) to the PC using the...
- Page 3 KIT_FX5_FMC_001 (top view) SWD/JTAG VDDIO header (J6) jumper (J9) Reset switch (SW3) PMODE switch (SW2) VDDIO_P0 jumper (J12) USB-C connector (J2) VBUS jumper (J1) VDDIO_CTRL jumper (J10) VDDIO_P1 jumper (J13) QSPI flash (U4, U5) EZ-USB™ FX5 (U1) Power on LED (PWRON) Page 3 of 4 Quick Start Guide...
- Page 4 KIT_FX5_FMC_001 (bottom view) USB-C FS connector (J3) GPIO header (J5) FMC mezzanine (J8) See the kit guide available at www.infineon.com/FX5 for more details. All rights reserved. © 2025 Published by Infineon Technologies AG Document number: 002-41204 Rev. *B 81726 Munich, Germany...
