PIPING LOCATIONS

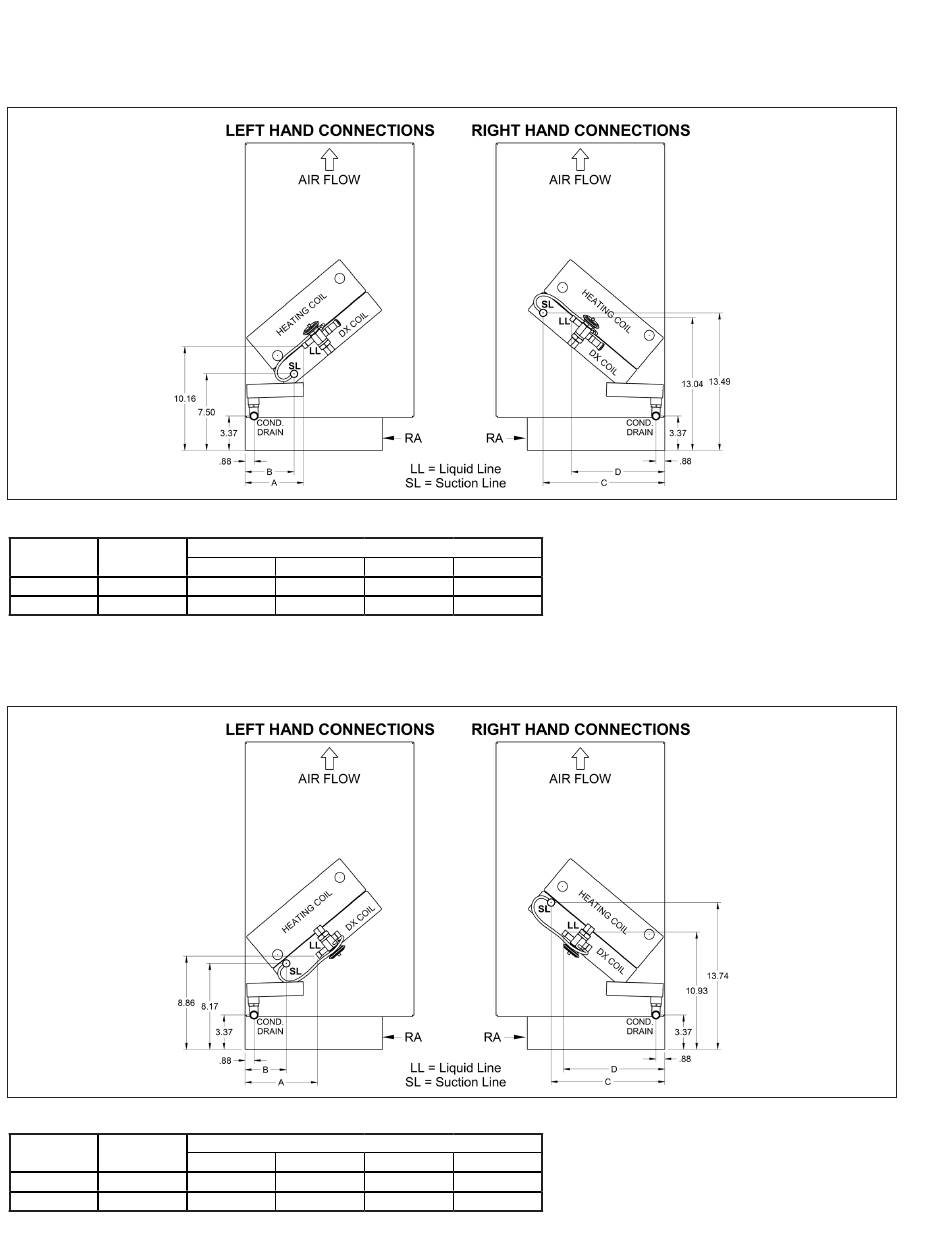

Figure 16.1 - DX Cooling (Size 750 Only) with Optional Reheat Piping Locations
Size 750 DX Cooling Coil Only or DX Cooling Coil with Reheat Coil
Table 16.1 - DX Cooling Coil Piping Locations j
Unit Depth
Model Size
16 5/8
750
21 7/8
750
j For Hot Water Reheat piping location see Figure 18.2. For Steam Reheat piping location see Figure 19.2.
Figure 16.2 - DX Cooling (Size 750 Only) with Pre-Heat Piping Locations
Size 750 DX Cooling Coil with Pre-Heat Coil Only
Table 16.2 - DX Coil with Pre-Heat Piping Locations j
Unit Depth
Model Size
16 5/8
750
21 7/8
750
j For Hot Water Pre-Heat piping location see Figure 18.1. For Steam Pre-Heat piping location see Figure 19.1.
16
Dimensions (inches)
A
B
14.25
11.25
14.25
16.50
Dimensions (inches)
A
B
14.25
11.25
14.25
16.50
C
D
7.25
4.75
7.25
10.00
C
D
7.25
4.75
7.25
10.00
14-500.4
