DIMENSIONAL DATA

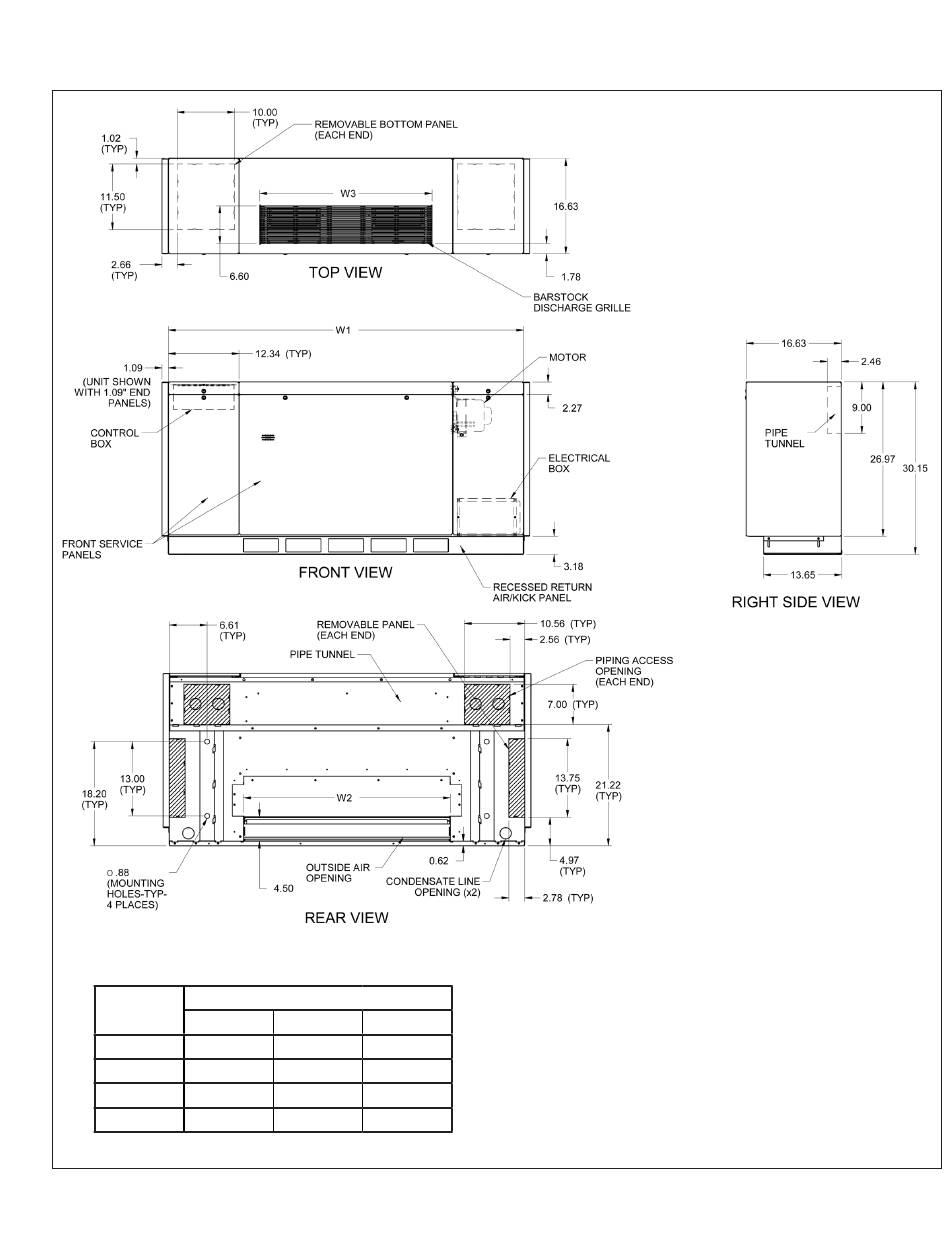

Figure 11.1 - Dimensions - 16-5/8" Depth - Flat Top Unit
Table 11.1 - Unit Width Dimensions
Model Size
W1
750 62
1000 74
1250 86
1500 98
Dimensions (inches)
W2 W3
36 30
48 42
60 54
72 66
