DIMENSIONAL DATA

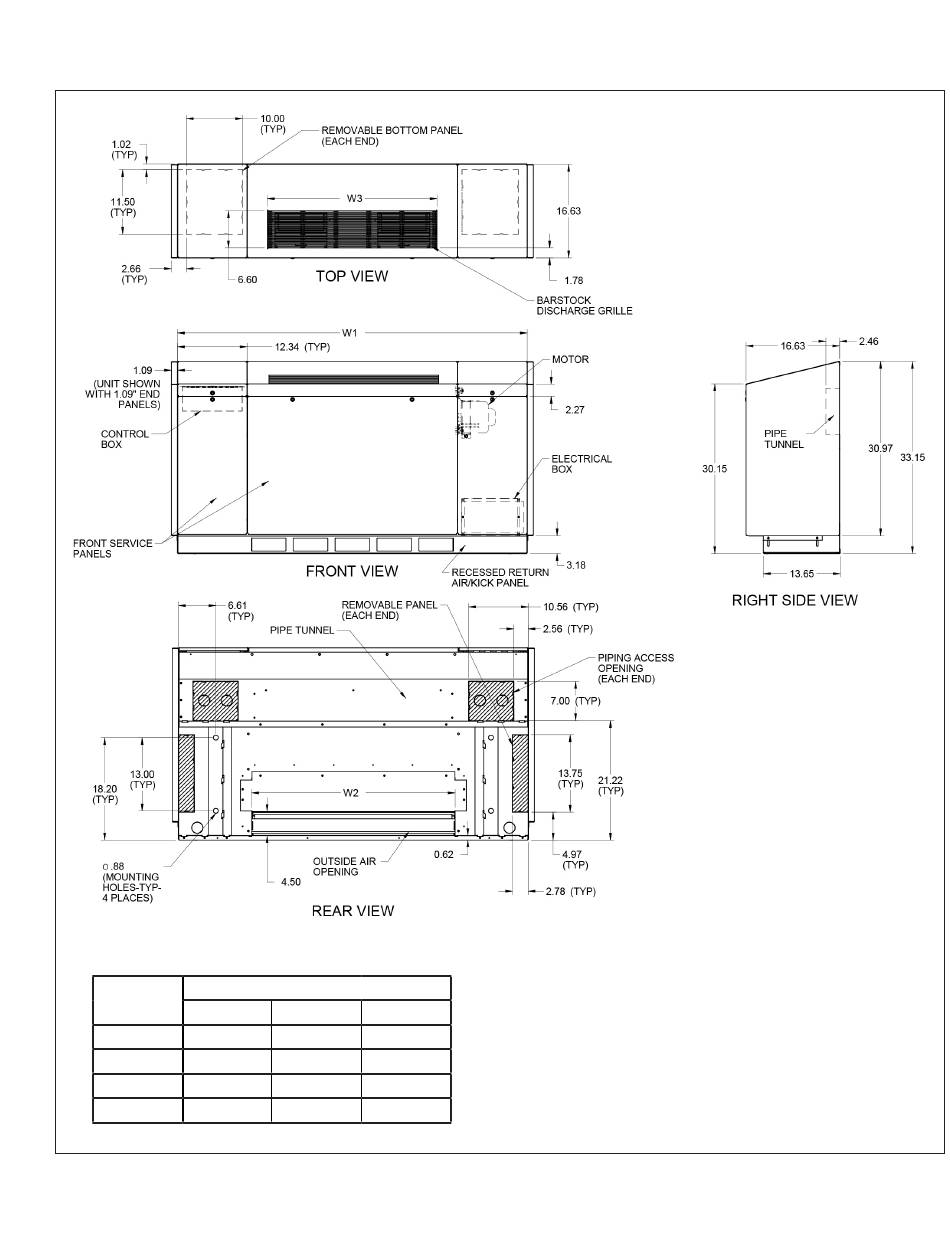

Figure 13.1 - Dimensions - 16-5/8" Depth - Slope Top Unit
Table 13.1 - Unit Width Dimensions
Model Size
W1
750 62
1000 74
1250 86
1500
98
Dimensions (inches)
W2 W3
36 30
48 42
60 54
72 66
14-500.4
