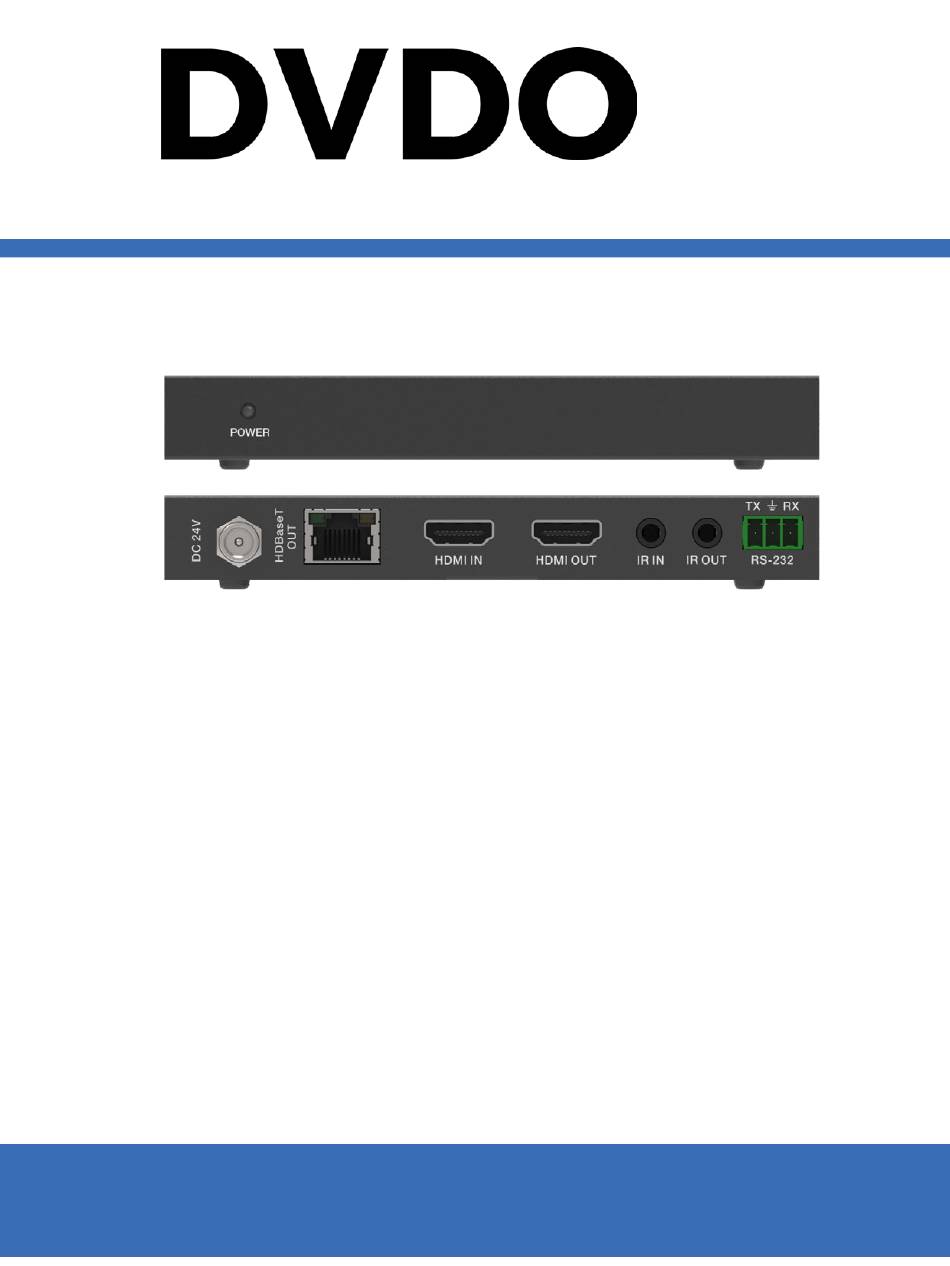

- Page 1 DVDO-Xtend-Pair150 HDMI 150m Extender with Loopout...
-
Page 2: Table Of Contents
Thank you for purchasing the DVDO-Xtend-Pair150 For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. -
Page 4: Package Contents
3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ear 3-pin Phoenix connector 24V/1A Locking Power adapter User Manual 4. Specifications Technical HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth... - Page 5 Connection Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Transmitter Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack]...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description 1 Power LED Red LED indicates that the transmitter is powered on. 2 SERVICE port Firmware update port. DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either 3 DC 24V transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply. -
Page 7: Receiver Panel
3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. 5.2 Receiver Panel Name Function Description 1 Power LED Red LED indicates that the receiver is powered on. 2 SERVICE port Firmware update port. -
Page 8: Ir Pin Definition
IR IN IR input port for receiving the signal of IR remote. IR output port for control of display device. This IR output signal 10 IR OUT is from the IR IN port of transmitter. 3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. - Page 9 The following is IR system diagram about IR cable use method. Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. 1 / 10...
-
Page 10: Application Example
6. Application Example 2 / 10...
