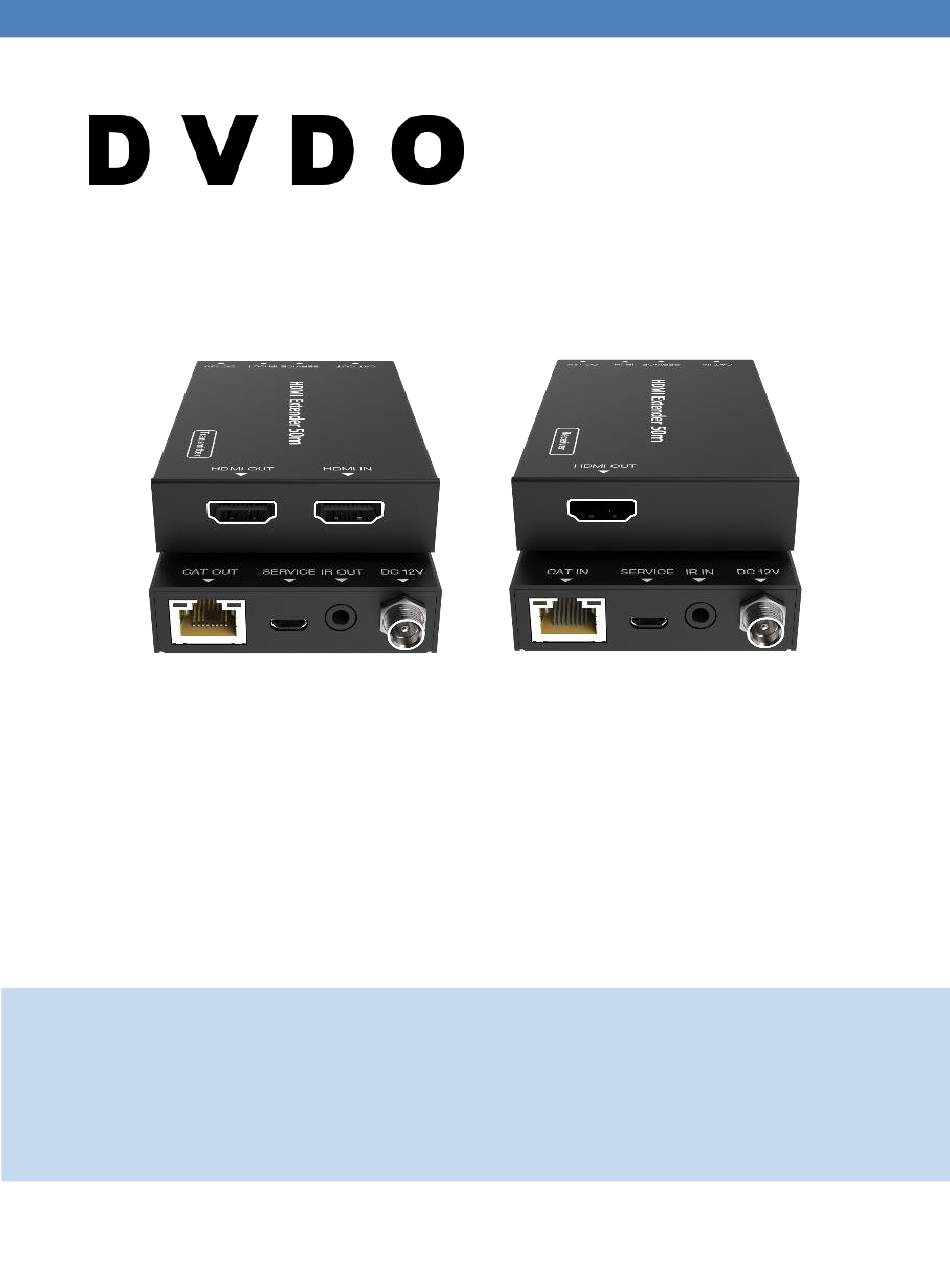

- Page 1 DVDO-CAT4K-50 4K60 HDMI 50m Extender Over Ethernet User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
- Page 2 Thank you for purchasing DVDO-CAT4K-50 For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction DVDO-CAT4K-50 can extend high definition video / audio signal and one-way IR, and the distance is up to 164ft / 50m between transmitter and receiver over a single Cat5e/6 cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is equipped with one-way IR pass-through which allows for source control and one HDMI loop output.
- Page 4 3. Package Contents - 1 x HDMI 18Gbps Extender (Transmitter) - 1 x HDMI 18Gbps Extender (Receiver) - 1 x IR Blaster cable (1.5 meters) - 1 x 20~60KHz IR Receiver cable (1.5 meters) - 1 x 12V/1A Locking Power adapter - 4 x Mounting Ears - 1 x User Manual 4.
- Page 5 Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Receiver 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] Mechanical Housing Metal Enclosure Color Black Transmitter / Receiver: Dimensions 61mm [W] x 88mm [D] x 18mm [H] Weight Transmitter: 160g, Receiver: 155g Input: AC 100 - 240V 50/60Hz...
- Page 6 Number Name Function description HDMI loop output port, connect to HDMI display device HDMI OUT such as TV or Projector with an HDMI cable. HDMI input port, connect to HDMI source device such HDMI IN as DVD or PS4 player with an HDMI cable. Connect to CAT IN port on the receiving end with a CAT OUT CAT6 cable.
- Page 7 Number Name Function description HDMI output port, connect to HDMI display device such HDMI OUT as TV or Projector with an HDMI cable. Connect to CAT OUT port on the transmitter end CAT IN with a CAT6 cable. Power Indicator The lamp will illuminate when the receiver is powered Lamp (Green) Data signal...
- Page 8 IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding The following is IR system diagram about IR cable use method. Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ±...
- Page 9 6. Application Example...
- Page 10 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
