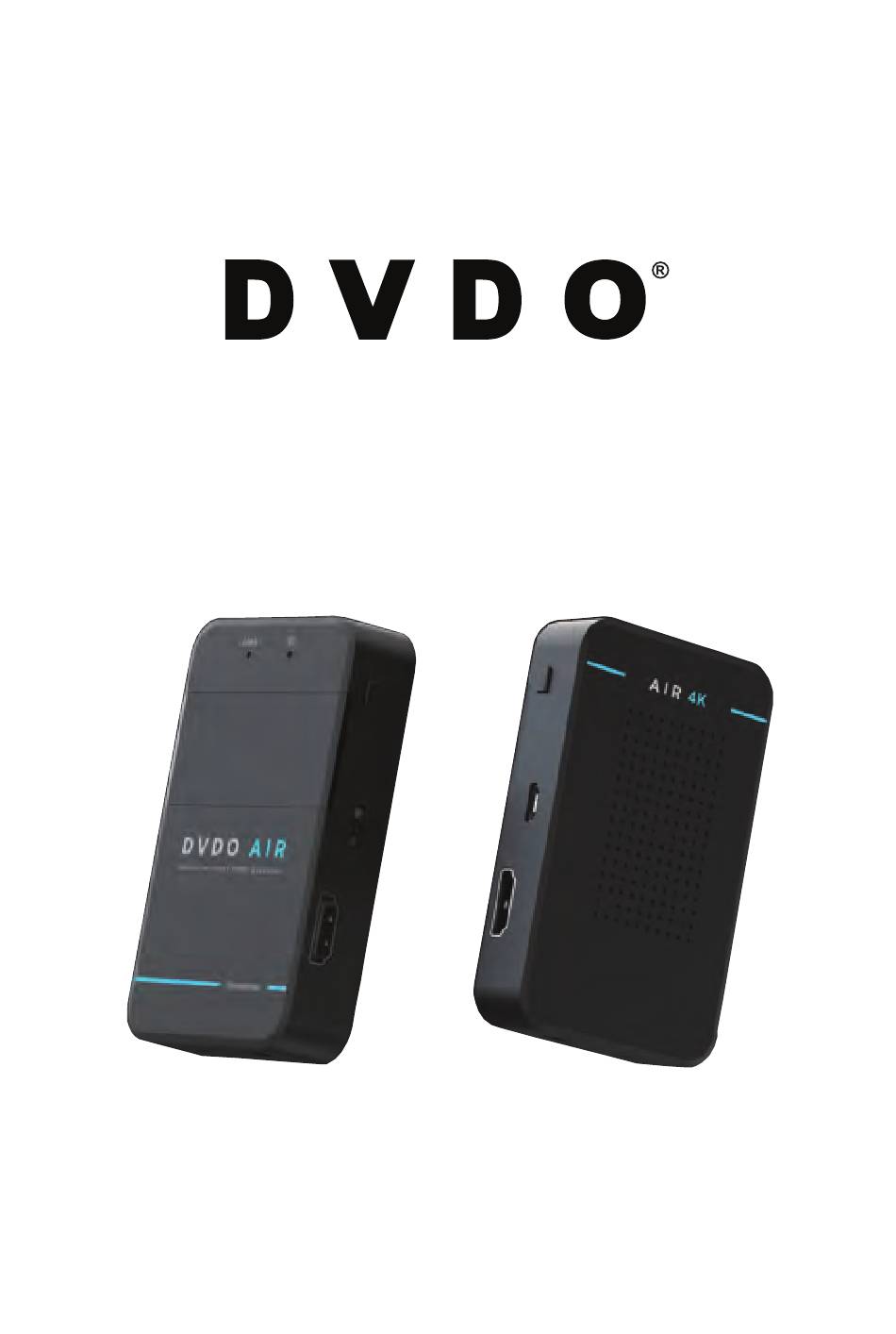

- Page 1 HDMI over Wireless Extender 60G DVDO Air 4K Users Manual...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The HDMI 4K over wireless 60G extender can transmit an 4K content without any compression and latency to an HDMI display up to 10 meters. It also supports 3D, CEC and 7.1-channels of High Bit Rate (HBR) lossless digital audio such as Dolby TrueHD, DTS-HD Master Audio. -
Page 4: Specifications
4. Specifications Technical Frequency Band Range 60 GHz Input resolution up to 4K@30Hz (Transmitter) Output resolution up to 4K@30Hz (Receiver) 1x HDMI (Female type) Input Ports(Transmitter) 1x HDMI (Female type) Output Ports(Receiver) USB Connector Micro USB (Transmitter/ Receiver) ESD Protection ±8kV (Air-gap discharge) , ±4kV (Contact discharge) 5V/1A DC (US/EU standards，CE/FCC/UL certified) Power Supply... - Page 5 Receiver Front View 1.Link LED: The connection status indicating lamp. ◆ LED OFF: Means the adapter is powered OFF or in Sleep mode. ◆ LED Slow Blink: Means the adapter has started radio transmission and has not yet found the other side of the link: ●...
- Page 6 Transmitter Rear Panel 1. HDMI IN: This slot is where you connect the HDMI source. 2. POWER: Plug the 5V DC power supply into the unit or connect to the source USB port via USB to Micro-USB cable. 3. Button: The button has a variety functions. Wakeup Function: If the adapter is in Sleep mode (Status LED is OFF and power supply is connected), pressing this button will wake up the adapter and start normal operation.
- Page 7 Receiver Rear Panel 1. HDMI OUT: This slot is where you connect to a HDMI equipped TV or monitor. 2. POWER: Plug the 5V DC power supply into the unit or connect to the source USB port via USB to Micro-USB cable. 3.
-
Page 8: Supported Video And Audio Formats
6. Supported Video and Audio Formats Supported Video Formats Color Depth(Color Depth Refresh Rates(Hz) Resolution (8, 10, 12 bits)) 640 x 480p(VGA) RGB 4:4:4 (8 bits) 848 x 480(WVGA) RGB 4:4:4 (8 bits) 800 x 600 (SVGA)) RGB 4:4:4 (8 bits) 1024 x 768(XGA) RGB 4:4:4 (8 bits) 1280 x 1024... -
Page 9: Application Example
Supported 3D Formats Type Resolution Refresh Rate(Hz) 1080p Frame Packing 720p 50/60 1080p Top - Bottom 720p 50/60 Side-by-Side 1080i 50/60 Supported Audio Formats Format Channel Sampling Rates (KHz) LPCM 32/44.1/48/88.2/96/176.4/192 LPCM 32/44.1/48/88.2/96 Dolby Digital 2/5.1 Dolby Digital Plus 2/5.1/6.1/7.1 Dolby TrueHD 5.1/6.1/7.1 48/96...
