DVDO-CAT-HDMIAudio-150
HDMI Audio 150m Extender Over Ethernet with ARC
User Manual
Version v1.0
DVDO
+1.408.213.6680
support@dvdo.com
www.dvdo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVDO-CAT-HDMIAudio-150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DVDO DVDO-CAT-HDMIAudio-150

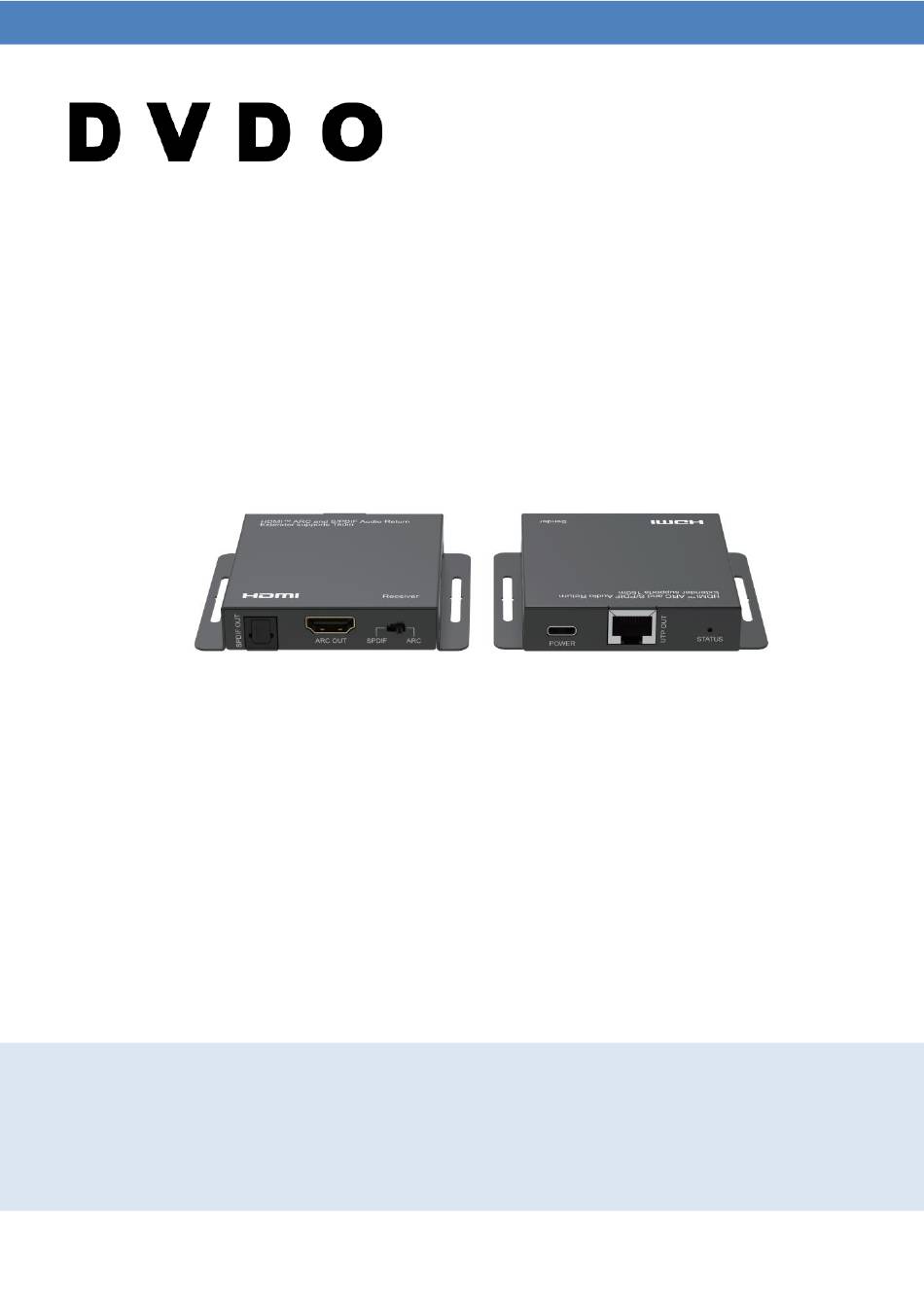

  • Page 1 DVDO-CAT-HDMIAudio-150 HDMI Audio 150m Extender Over Ethernet with ARC User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
  • Page 2: Package Contents

    Package Contents Main Unit USB Power Charger x 2pcs USB-A to USB-C Power Cable x 2pcs Ports and Interfaces Sender Receiver 1. POWER: USB-C DC 5V Power In 2. UTP OUT: Connect to RJ45 OUT via CAT5E/CAT6 Cable 3. STATUS: Status LED Indicator On: The Sender is working properly but the connection between the Sender and receiver is not successful Blinking: The Sender is working properly, and the connection between the Sender and receiver is...
  • Page 3: Connection Diagram

    Connection Diagram...
  • Page 4 Introduction DVDO-CAT-HDMIAudio-150 is an extender for both HDMI ARC and SPDIF audio pass- through. It supports CEC pass-through between HDMI ARC input port and ARC output port to handshake for ARC. For TVs that don’t support HDMI ARC capabilities, the extender provides an independent SPDIF audio pass-through channel SPDIF audio can be transmitted from the SPDIF IN port of the Sender to the SPDIF OUT port of the receiver.
  • Page 5: Specifications

    Specifications Input Ports 1 x HDMI ARC, 1 x SPDIF, 1 x UTP Output Ports 1 x HDMI ARC, 1 x SPDIF, 1 x UTP Transmission Distance 150m via CAT5E/CAT6 Cable Data Transmission Rate 12.8Mb/s Audio Sampling Rate 96KHz Limited Warranty 1 Year Parts and Labor Operating Temperature 0℃...
  • Page 6 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
