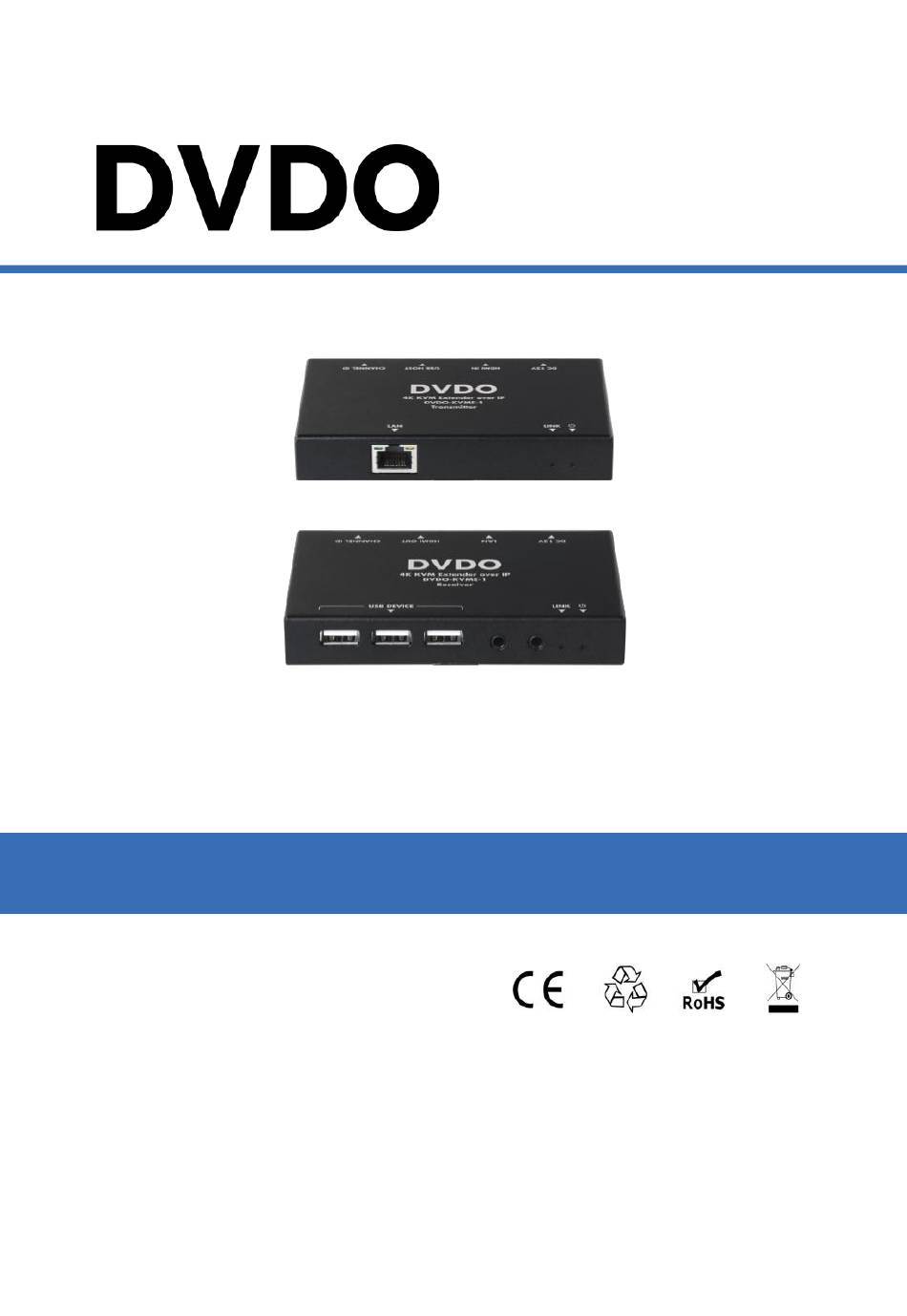

- Page 1 DVDO-KVME-1 4K KVM Extender over IP User Manual Version: V1.0.0...
- Page 2 DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and do not place objects filled with liquids, such as vases, on the apparatus.
-
Page 3: Table Of Contents
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Table of Contents Introduction ...................... 4 Features ....................4 Package Contents ..................4 Specifications ................... 5 Transmitter ..................5 Receiver .................... 6 Panel Description ..................7 Transmitter ..................7 Receiver .................... 8 Installation and Wiring ................... -
Page 4: Introduction
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Introduction DVDO-KVME-1 is a 4K KVM extender set over IP. It can extend 4K video (with zero latency) and USB 2.0 signals over long distances. It also supports plug and play. -
Page 5: Specifications
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Specifications Transmitter Technical 1 x HDMI IN (19-pin female HDMI Type-A) 1 x USB HOST (female USB Type-B) Input/Output 1 x 4-Pin DIP Switch 1 x DC 12V connector with locking... -
Page 6: Receiver
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Receiver Technical 1 x LAN (RJ45) 1 x HDMI OUT (19-pin female HDMI Type-A) Input/Output 3 x USB DEVICE (female USB Type-A) 1 x 4-Pin DIP Switch 1 x DC 12V connector with locking... -
Page 7: Panel Description
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Panel Description Transmitter Front Panel Name Description Connect to a receiver or an Ethernet Switch for streaming media output. Link LED LED On: The transmitter is paired with the receiver successfully. -
Page 8: Receiver
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Name Description This DIP switch consists of four manual switches, which are used to route the transmitter to receiver based on their positions. For more information, see “Using DIP Switch to Perform Routing” section. - Page 9 DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Rear Panel Name Description DC 12V Connect to the DC 12V 1A power adapter provided. Connect to a transmitter or an Ethernet Switch for streaming media input. HDMI Out Connect to an HDMI display device.
-
Page 10: Installation And Wiring
Application 1 - Connect Transmitter to Receiver Directly The DVDO-KVME-1 could be connected directly with a Cat 5e or above cable. As a normal extender set, it extends the HDMI and USB signals over a long distance up to 120m/395ft. - Page 11 DVDO-KVME-1 4K KVM Extender over IP User Manual Application 2 - Connect through Ethernet Switch The DVDO-KVME-1 could be connected through one or more network switches. With the 4-pin DIP switch, it could connect to 16 extender sets in a same network without the VLAN settings, and extend the HDMI and USB signals to an unlimited distance.
- Page 12 DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual DVDO-KVME-1_V1.0.0...
-
Page 13: Troubleshooting
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Troubleshooting How to deal with cutting off when you connect USB device to receiver? Ensure your USB device is working normally. Connect the power adapter to the receiver’s power port instead of transmitter since PoE may not provide enough power to your USB device (e.g. -
Page 14: Warranty Terms And Conditions
DVDO DVDO-KVME-1 4K KVM Extender over IP User Manual Warranty Terms and Conditions For the following cases we shall charge for the service(s) claimed for the products if the product is still repairable and the warranty becomes unenforceable or inapplicable.
