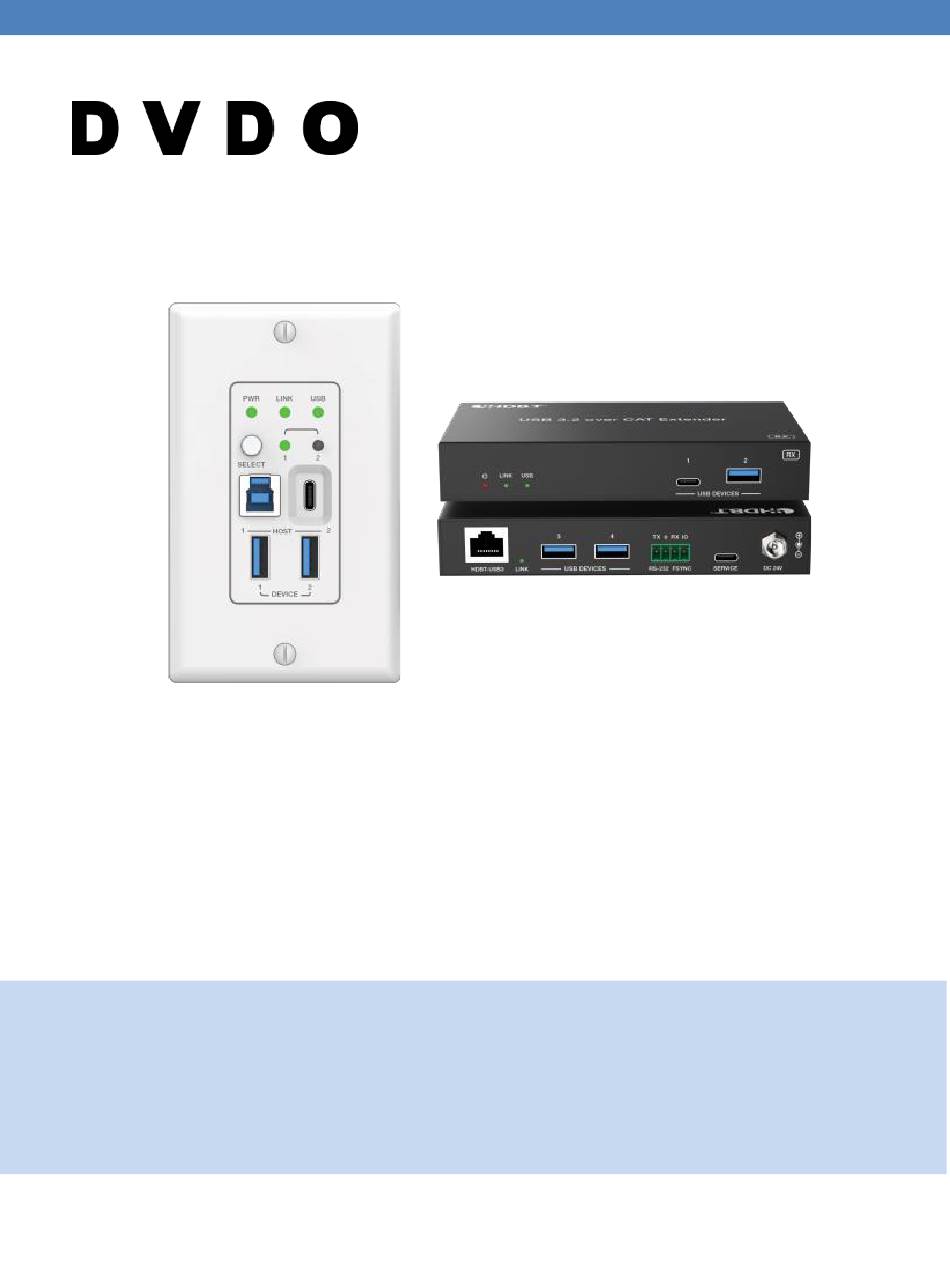

- Page 1 DVDO-Xtend-USBC-USB-WB-1 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
- Page 2 Thank you for purchasing DVDO-Xtend-USBC-USB-WB-1 For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction This US 1-Gang standard decora wall plate can extend USB 3.2 Gen 1 5Gbps signal to a distance up to 100m/328ft via a single CAT6a cable. The wall plate (transmitter) features one USB-C and one USB-B selectable input ports, two USB-A loop out ports.
- Page 4 3. Package Contents ① 1× USB 3.2 Gen 1 Wall-Plate Extender (Transmitter) ② 1× USB 3.2 Gen 1 Box Extender (Receiver) ③ 1× 24V/3.75A Power Supply ④ 1× 2pin-3.5mm Phoenix Connector (Male) ⑤ 2× 4pin-3.5mm Phoenix Connector (Male) ⑥ 2× Mounting Ear ⑦...
- Page 5 Mechanical Transmitter: Plastic Front Panel + Metal Enclosure Housing Receiver: Metal Enclosure Transmitter: White + Black Color Receiver: Black Transmitter: 45mm [W] × 42mm [D] × 103.5mm [H] Dimensions Receiver: 140mm [W] × 75mm [D] × 23mm [H] Weight Transmitter: 115g; Receiver: 318g Input: AC 100~240V 50/60Hz Power Supply Output: DC 24V/3.75A...
- Page 6 Name Function Description The green LED will be on when the unit is powered on. PWR LED The green LED will be on when the Transmitter and Receiver LINK LED are connected successfully. SELECT button Press the button to select USB HOST 1/2 circularly. USB-B host port, connected to a PC or host.
- Page 7 Rear Panel 9 10 Name Function Description Power LED The LED will be on when the receiver is powered on. Connection signal indicator. ▪ On: Transmitter and Receiver are connected and linked. LINK LED ▪ Off: Transmitter and Receiver are not connected. USB signal indicator.
- Page 8 6. API Commands The product supports API commands control. Connect the SERVICE or RS-232 port of the product to a PC, then open a Serial Command tool on PC to send API commands to control the product. The API commands list is shown below. ASCII Commands 1.
- Page 9 Example Function Feedback Default Command Set USB host input port (x=1~2) x=1: USB host 1 (USBB) set input 1 Set input USB host 1 set input x x=2: USB host 2 (USBC) get input get input Get USB host input port Input USB host 1 Get USB host input port 5V (x=0~2)
- Page 10 Example Function Feedback Default Command Get RX USB device ports (x=0~4) power status RX all USB device x=0: RX all USB device ports get rx usbd 0 get rx usbd x ports power follow x=1: RX USB device 1 (USBA) power power USB host power...
- Page 11 7. Application Example Transmitter LINK SELECT HDBT-USB3 HOST DEVICE CAT6a Host Mouse Keyboard USB Camera Microphone Power Supply U Disk Receiver HDBT-USB3 LINK USB DEVICES RS-232 FSYNC SERVICE DC 24V LINK USB DEVICES 9 /9...
- Page 12 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
