Summary of Contents for DVDO CAT4K-Pair

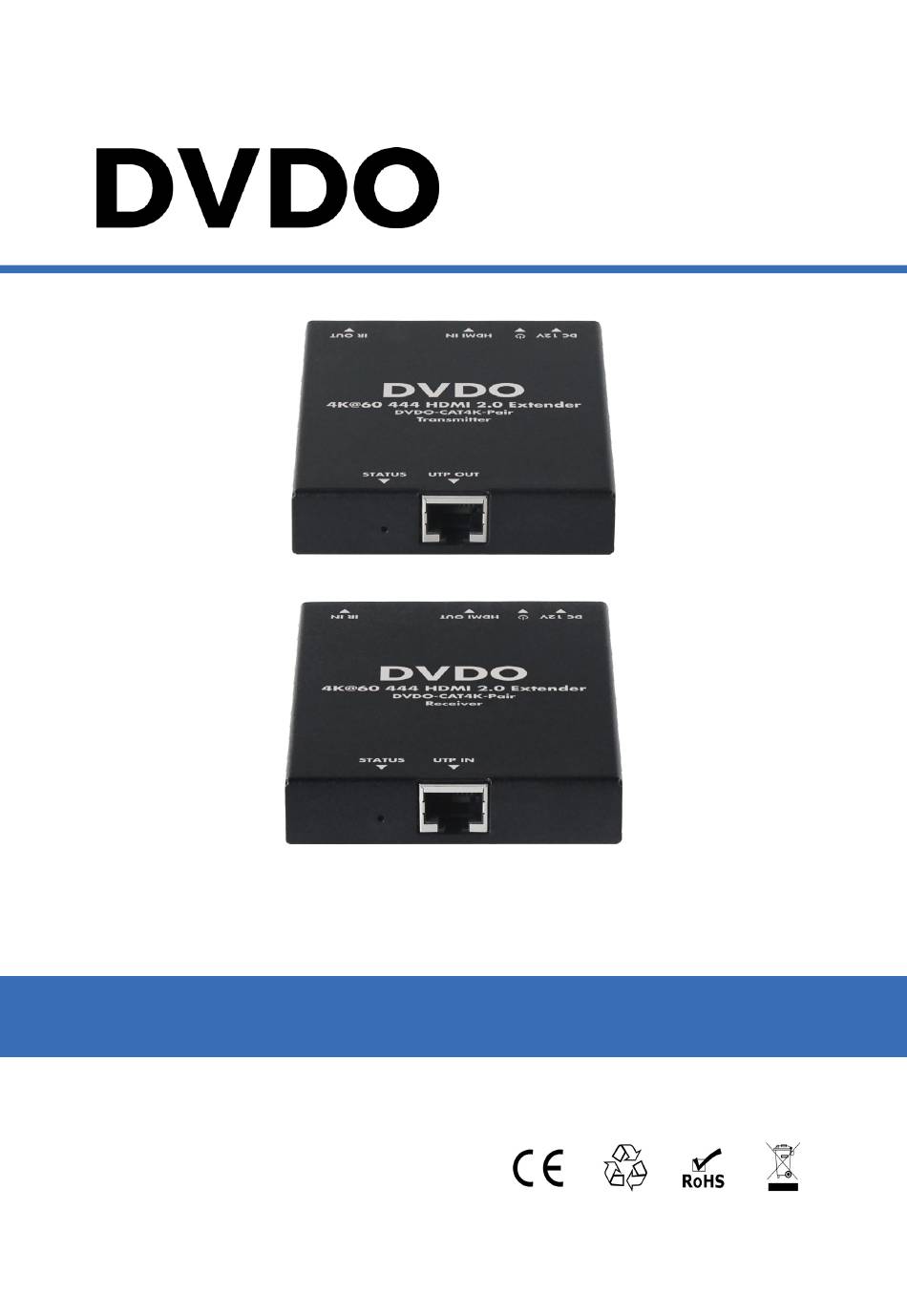

- Page 1 DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Version: V1.0.0...
- Page 3 DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 4: Table Of Contents
DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Table of Contents Introduction ...................... 5 Overview ....................5 Features ....................5 Package Contents ..................6 Specifications ................... 6 Panel Description ..................7 Transmitter ..................7 Receiver .................... 8 Installation and Wiring ..................9 Troubleshooting ..................... -
Page 5: Introduction
Thank you for purchasing this product. For proper installation and optimum performance, please read the instructions in this manual carefully. DVDO-CAT4K-Pair is a slim transmitter receiver set with HDCP 2.2 compatibility. It supports resolutions up to 4K@60Hz 4:4:4 8bit, and transmits UHD video, HD audio up to 35m/115ft over a Cat 6 or above cable. -
Page 6: Package Contents
DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Package Contents Before you start the installation of the product, please check the package contents as below: DVDO-CAT4K-Pair Extender (Transmitter Receiver Set) x 1 DC 12V 1A Power Supply (with US, UK, EU, AU Pins) x 1 ... -
Page 7: Panel Description
DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Transmission Distance Note: T568B straight-through Category cable is recommended. Cable Type Range Supported Video Cat 5e/6 50m/164ft 1080P@60Hz Cat 6a/7 50m/164ft 35m/115ft 4K@30 4:4:4 Cat 6/6a/7 4K@60 4:2:0 4K@60 4:4:4 Input/Output: 49ft/15m... -
Page 8: Receiver
DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Receiver Name Description STATUS LED Lights when there’s HDMI output. Connect receiver to transmitter via a Cat 5e/6/6a/7 UTP IN cable. DC 12V Connect to DC 12V power adapter provided. On: The device is powered on. -
Page 9: Installation And Wiring
DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Installation and Wiring Connect the HDMI source (such as Blu-ray player, Apple TV, 4K media player, etc) to HDMI IN port of the transmitter respectively. Connect the UTP OUT of the transmitter to the UTP IN of the receiver via a qualified CAT5e/6/6a/7 cable. -
Page 10: Troubleshooting
DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Troubleshooting No Power Ensure the power is on. Ensure you use the power adapter provided in the package. No Picture or Video Flash Ensure all devices are on, and all cables are qualified and connected ... -
Page 11: Warranty Terms And Conditions
DVDO DVDO-CAT4K-Pair 4K@60 444 HDMI Extender User Manual Warranty Terms and Conditions For the following cases we shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
