REALTRUCK Roll-N-Lock E Series Installation Sheet

For 2020+ isuzu d-max standard track and xt
Hide thumbs

Advertisement

Table of Contents

E-SERIES
STANDARD AND XT SERIES
Note: Installation is the same for for
both standard track and XT Series track.
Note: It is important that all areas
where the bed cover mounts are clean
and free of debris prior to installing.
TOOLS PROVIDED
·
1/4" Allen wrench
·
303 Vinyl protector
TOOLS REQUIRED
·
3mm drill bit
·
13mm drill bit
·
Drill with Phillips head
·
Phillips screwdriver
·
7/16" wrench
·
Tape measure
D
E
O
P
Roll-N-Lock 915 S Dixie Hwy, Pompano Beach, Fl 33060 800-952-7655 rollnlock.com
A
C
F
G
H
Q
Zip ties
2020+ Isuzu D-Max
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you diredtly.
Call 1-800-952-7655 Mon-Fri - 8am - 5pm EST
or email info@rollnlock.com
B

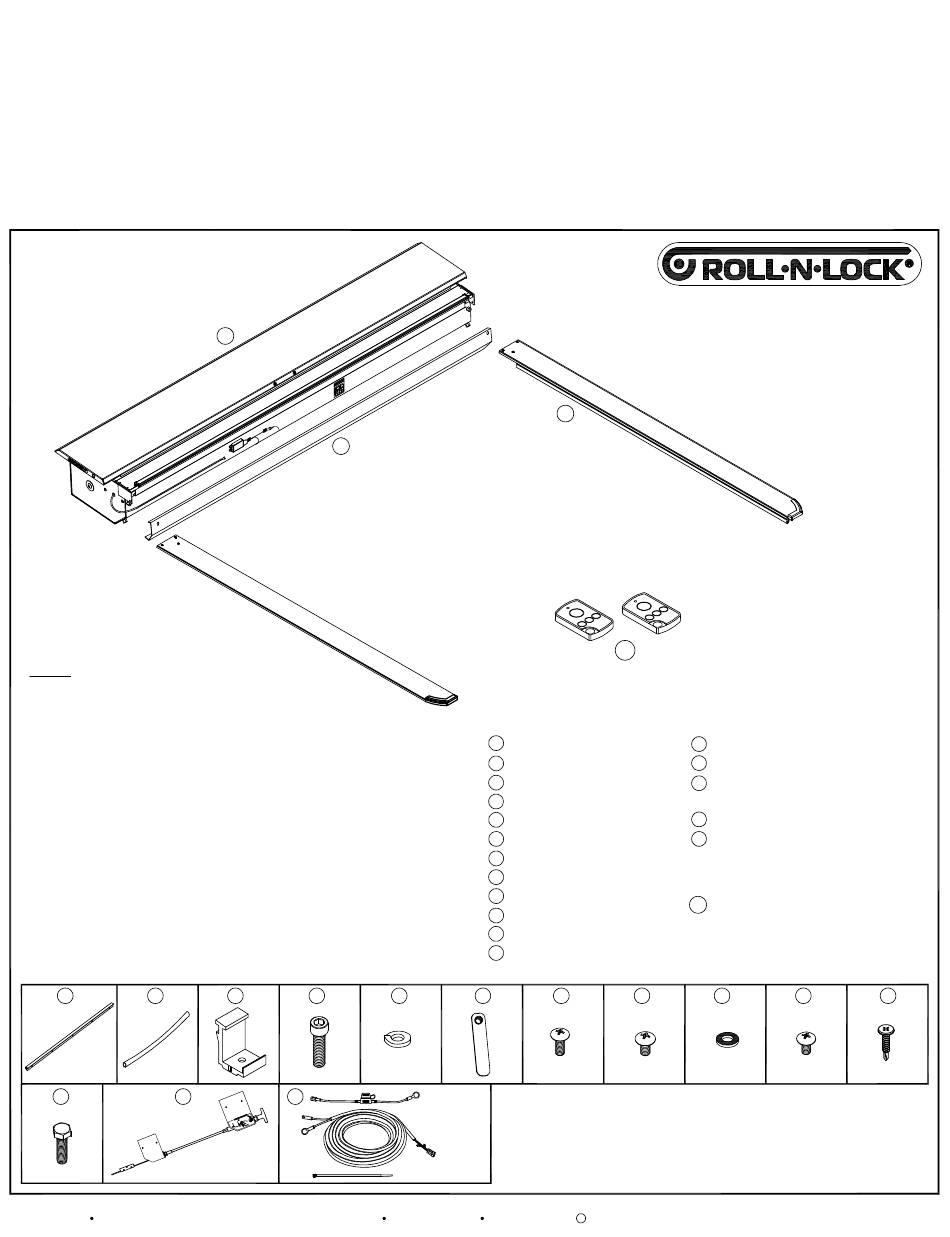

PARTS INCLUDED IN YOUR KIT
1x Housing
A
2x Track
B
1x Cargo shield
C
1x Tailgate extrusion
D
2x Drain tube
E
6x (U) Bed clamps
F
6x 5/16" Socket cap screw
G
6x 5/16" Lock washer
H
6x Cargo nut
I
6x #10-24 1/2" Screw
J
4x 1/4-20 x 3/8" Screw
K
4x Rubber washer
L
I
J
Fuse holder
Power wire
Roll-N-Lock, Corp 2022
C
A A
2x 1/4-20 Lid screw (Taped to lid)
M
5x #8 x 3/4" Self tapping screw
N
2x 1/4-20 x 1" Bolt
O
1x Override cable
P
1x Power wire/connectors
Q
Which includes: 1x Fuse holder
AA
2x Remotes (Taped to housing)
K
L
Part #9-7002-E 5-18-23
1x Power wire
10x Zip ties
M
N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roll-N-Lock E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REALTRUCK Roll-N-Lock E Series

Summary of Contents for REALTRUCK Roll-N-Lock E Series

  • Page 1 2020+ Isuzu D-Max E-SERIES INSTALLATION SHEET Any damaged or missing parts? STANDARD AND XT SERIES Parts will be shipped to you diredtly. Call 1-800-952-7655 Mon-Fri - 8am - 5pm EST or email info@rollnlock.com Note: Installation is the same for for both standard track and XT Series track.
  • Page 2 Feed end of power wire through opening on drivers side of truck cap, continue feeding down through the side panel to the ground. Opening Leave 2 feet of power wire in the truck bed. Power wire Connector Feed power wire under the truck securing to an existing wire harness leading to the battery with supplied zip ties.
  • Page 3 Center the housing (A) between the bed rails, and up against the bulkhead on driver and passenger side. Remove lid from housing (A) by pushing toward cab (1) and up (2) on driver and passenger side. Roll-N-Lock 915 S Dixie Hwy, Pompano Beach, Fl 33060 800-952-7655 rollnlock.com Roll-N-Lock, Corp 2022 Part #9-7002-E 5-18-23...
  • Page 4 (1) Align tracks (B) onto the housing stem. (2) Make sure the edge of the tracks butt up against housing on driver and passenger side. (3) Note: Do Not remove the piece of cardboard until tracks are installed. housing stem (1) Loosely attach U bed clamps (F) to the pre-installed track clamps using 5/16"...
  • Page 5 Secure tracks (B) to housing stem (1) on driver and passenger side using cargo nut (I) and #10-24 screw (J) using Phillips screwdrive. (1) Carefully hold the tailgate extrusion (D) square to the tailgate, use a 3mm drill bit to predrill holes. (2) Use (5) #8 x 3/4"...
  • Page 6 Close tailgate, shift the housing (A) back so the end of the tracks (B) are up against the tailgate on driver and passenger side. Once tracks (B) are correctly spaced and adjusted to the correct heigth, tighten bed clamps (F) using a 1/4"...
  • Page 7 Replace lid on housing (A) by lining the pin with the slot and pushing down (1) and toward tailgate (2) on driver and passenger side. Then install the 1/4" lid screws (M) taped to lid with a Philips screwdriver (3) on driver and passenger side. Drill 1/2"...
  • Page 8 Powering the unit: Unwrap light wires (1) from motor wire (2). Light Wires Motor Wire Bring power wire (1) around and attach onto cable mounting clips (2) the front Power Wire of the unit. Plug power wire connector (1) Power Wire Motor Wire into motor wire connector (2).
  • Page 9 Remove remotes (AA) from housing. OPERATING THE SYSTEM · Push the large button to run cover. · Push the small button to turn light on. · Push the large button to stop the cover. · Push the small button to turn light off. ·...
  • Page 10 Override cable installation. Override cable EMERGENCY MANUAL OVERRIDE Attach small bracket (1) through the slotted holes Attach large bracket (2) through the slotted holes using two cargo nuts (I) and two 10-24 screws (J) using two cargo nuts (I) and two 10-24 screws (J) toward the front of the track.

  • Page 11: Important Notice

    IMPORTANT NOTICE This bed cover may retract to the full open position very quickly resulting in any objects placed on top of the bed cover to fall off the bed cover or become trapped inside of the bed cover carrier. Do not place ANY objects on top of the bed cover when attempting to close.

  • Page 12: Maintenance

    COVER CARE AND MAINTENANCE Hard Tops Clean with mild automotive soap and water only. Do NOT use any strong chemicals or cleaners. Use of wax or polish is not recommended. Maintenance It is recommended that you periodically check that the cover is securely attached to your truck bed. Inspect the clamps and front mounting bolts to ensure they were properly installed and have not come loose or knocked out of adjustment during operation.
