IPOTOOLS TIG 200DI ACDC IGBT DIGITAL Original Instruction Manual page 23

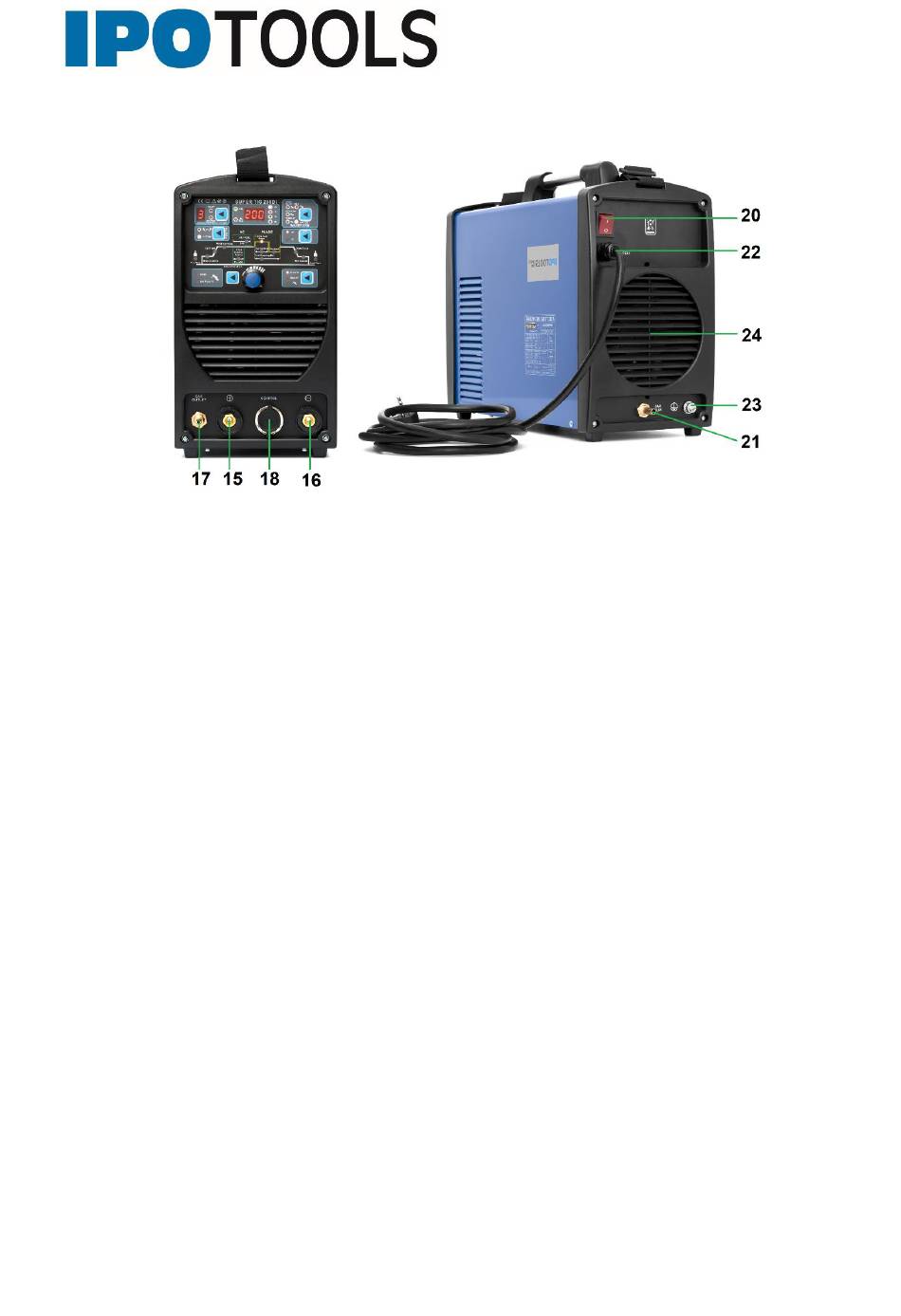

15. Connection "+"
16. Connection "-"
17. Gas connection for TIG torch
18. Control connection for TIG torch
20. On / Off Switch
21. Shielding gas supply
22. Connection cable
23. Safety grounding
24. Fan
* press the button to cycle between memory locations. To save the setting, press the blue
button of switch 1 and hold it for 4-5 seconds. The device always remembers the last saved
settings in a specific memory location.
INSTRUCTION MANUAL
TIG 200DI ACDC Welding machine
9
