CONTROL PANEL

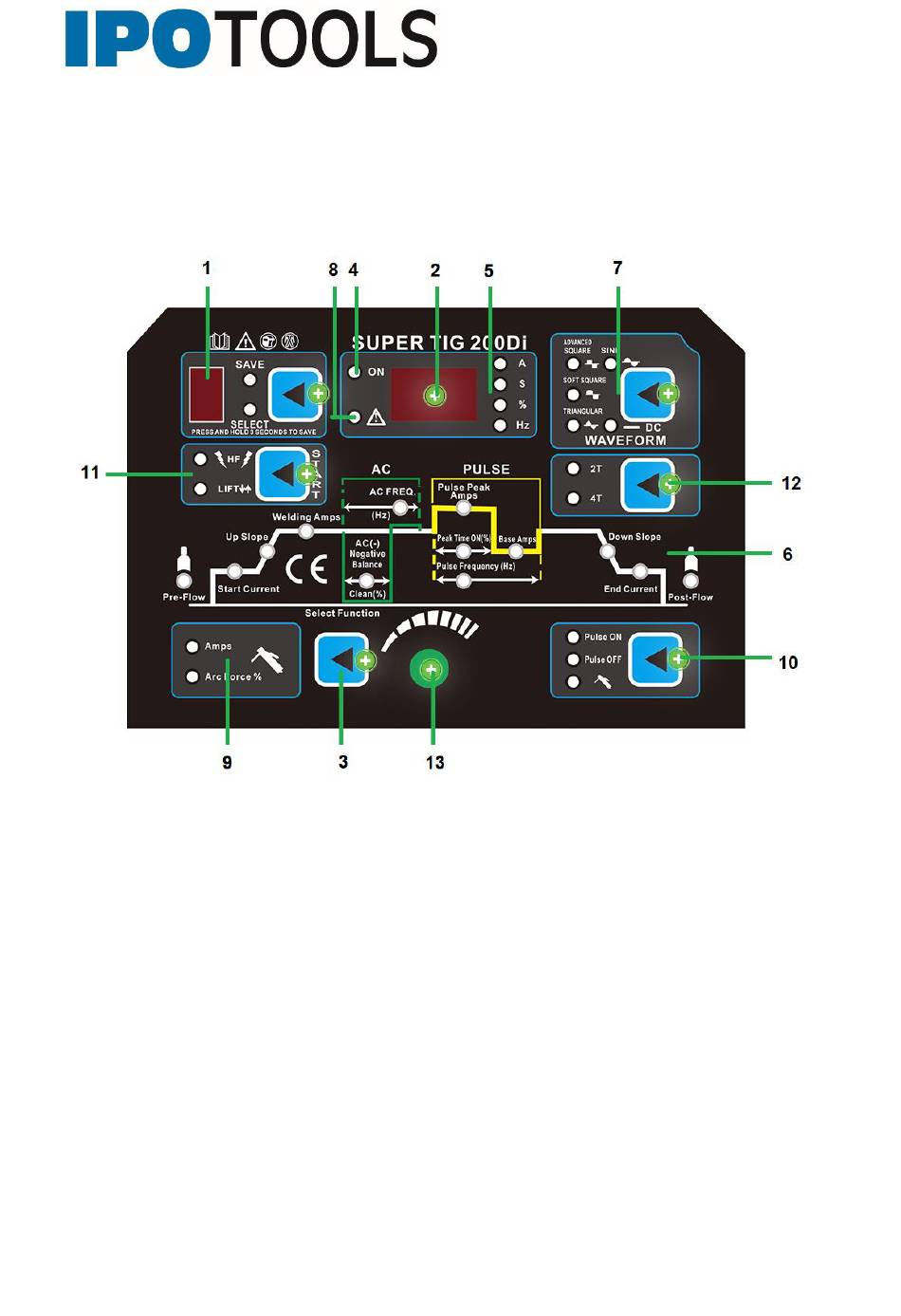

Description of the control panel and the front and back of the appliance:
1. Save current welding parameters, display current memory location*
2. Displays the value of the currently selected parameter.
3. Selection of parameters from the welding curve.
4. Light: power indicator
5. Display which parameter we are currently setting:
A - welding current
S - time in seconds (initial and final current or initial and final gas)
% - AC cleaning effect or% welding time of the first or second welding current
Hz - pulse or AC frequency
6. Welding curve (initial gas, initial welding current, set welding current, AC
frequency, AC cleaning effect, pulse frequency, secondary welding current, % and
wavelength of pulse current, final current, final gas)
7. AC / DC - Selection
8. Warning light
9. MMA, AMPS / ARC force selection
10. On / Off pulse mode, MMA on switch
11. Switching between high frequency and touch ignition
12. Switch between 2T and 4T mode
13. Potentiometer for setting welding parameters
