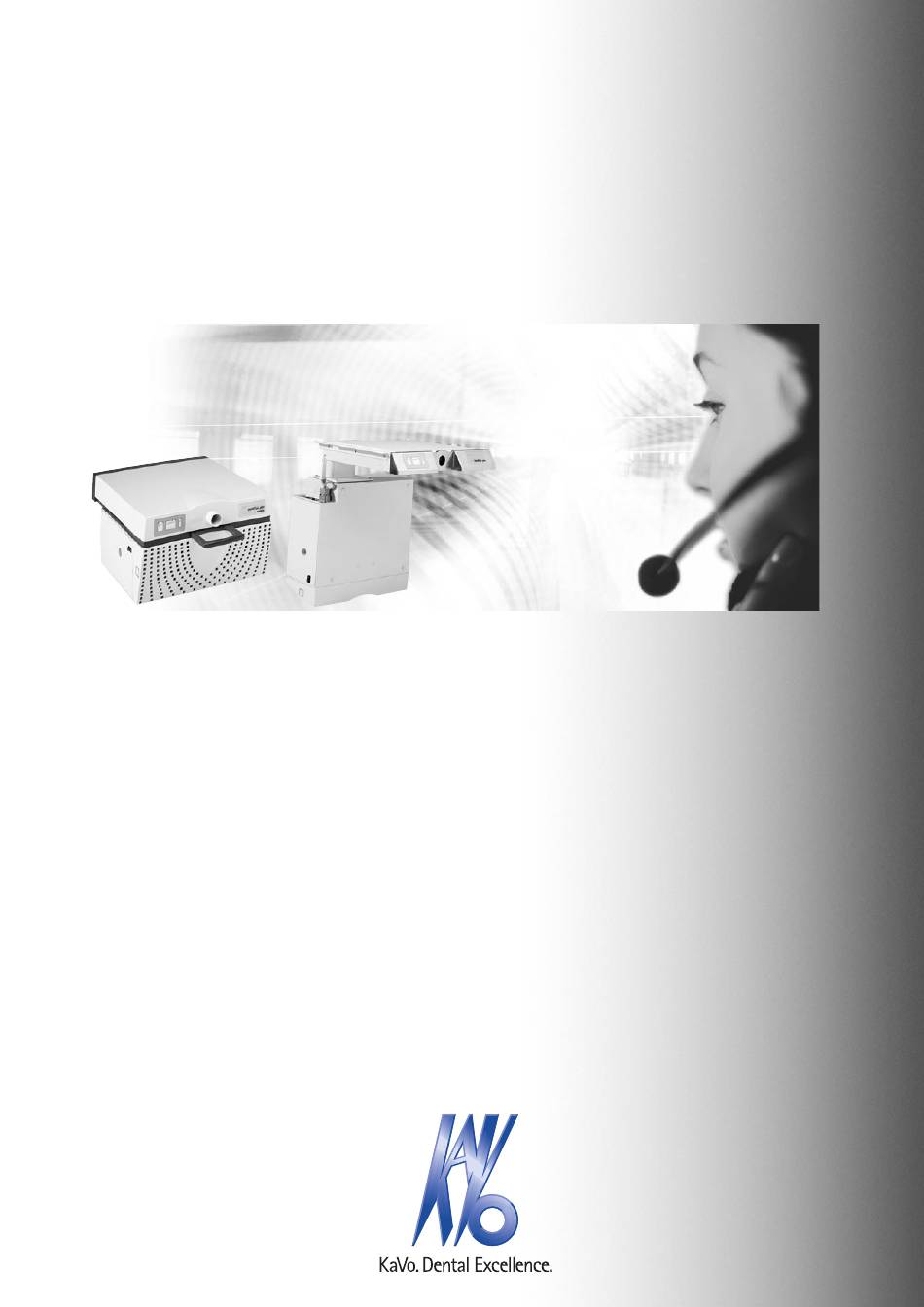

  • Page 1 Operating Instructions SMARTair. SMARTair mobile. Always on the safe side.
  • Page 2 KaVo Elektrotechnisches Werk GmbH Wangener Straße 78 D-88299 Leutkirch...

  • Page 3: Table Of Contents

    A 6.1 SMARTair ..................................14 A 6.2 SMARTair mobile ..............................14 A 6.3 Inserting or replacing the adsorption filter in SMARTair ..................15 A 6.4 Inserting or replacing the adsorption filter in SMARTair mobile ................16 Operation and function elements ............................17 A 7.1 SMARTair ..................................17 A 7.2 SMARTair mobile ..............................18...

  • Page 4: A 1 User Information

    The following should also be observed: request these from your responsible KaVo agent. Duplication and distribution of the • the work safety regulations, Important information for operator instructions for use (IU) require KaVo's •...

  • Page 5: A 1.4 Uses And Applications

    The drawer version, SMARTair, is primarily operated with removable suction hoods. The mobile version, SMARTair mobile, can be used not only with removable suction hoods, but also can be connected directly to small apparatus. A 1.5 Cleaning and care of the unit...

  • Page 6: A 2 Scope Of Delivery - Accessories

    Motor–filter drawer T a i r b i l Replacement filter bag Micro-filter cartridge Operating instructions 1.001.9704 SMARTair mobile consists of: Motor-filter housing Replacement filter bag T a i b i l Suction hose ø 42 mm with connection sleeves...

  • Page 7: A 3 Technical Data

    SMARTair. SMARTair mobile. A 3 Technical Data A 3.1 SMARTair Measurements: Width: 450 mm Depth: 510 mm Height: 540 mm Weight: ca. 17,5 kg Suction capacity: 15-30 L/sec. max. load for connected unit: 500 W max. leakage current 0,5 mA...
  • Page 8 SMARTair. SMARTair mobile. Rating plate SMARTair Provides information on: 1 Manufacturer 2 Serial number 3 Barcode 4 Attention! – observe accompanying documents and safety hints. 5 CE-Mark according 6 Fuse rating 7 Consumption 8 Supply voltage for unit 9 Order number (reference number)

  • Page 9: A 3.2 Smartair Mobile

    SMARTair. SMARTair mobile. A 3.2 SMARTair mobile Measurements: Width: 420 mm Depth: 270 mm Height: 430 mm Weight: ca. 17,5 kg Suction capacity: 15-30 L/sec. max. load for connected unit: 500 W max. leakage current 0,5 mA Fuse rating: mains input 100- 230V T 10A (H) /250 V...
  • Page 10 SMARTair. SMARTair mobile. Rating plate SMARTair mobile Provides information on: 1 Manufacturer 2 Serial number 3 Barcode 4 Attention! – observe accompanying documents and safety hints. 5 CE-Mark according 6 Fuse rating 7 Consumption 8 Supply voltage for unit 9 Order number (reference number)

  • Page 11: A 4 Location

    SMARTair 2 is designed for installation in EWL Support Frame 1 or EWL System Basis 5 . SMARTair mobile 3 can be set up in a horizontal or vertical position. Choose a location so that the exhaust outlet is not blocked.

  • Page 12: A 5 Installation And Connection

    SMARTair can be withdrawn to the stop without pulling out the plug. Only equipment with max. 500 watt consumption can be connected. Replace lid 7 on SMARTair and push the unit in the support frame 6 as far as the stop.
  • Page 13 SMARTair. SMARTair mobile. Connect ancillary equipment 2 via connection cable 1 to SMARTair . Ancillary equipment with a control outlet (3,5 mm socket) e.g. K-Control, can be directly coupled to the suction unit by means of a control cable 3 (Mat. No.

  • Page 14: A 5.2 Smartair Mobile

    Ta ir S M A R m o bi le Place SMARTair mobile at the desired location. Press mains switch 1 in position “0“. Insert supplied mains cable 2 into the provided connection 3 at...
  • Page 15 SMARTair. SMARTair mobile. Connect ancillary equipment 2 via connection cable 1 to SMARTair mobile. Ancillary equipment with a control outlet (3,5 mm socket) e.g. K-Control, can be directly coupled to the suction unit by means of a control cable 3 (Mat. No.

  • Page 16: A 6 Preparing For Operation

    Push the cardboard frame of filter bag 3 on to nozzle 4, alternatively check for firm fit. Replace lid 2 and slide SMARTair in support frame 1 up to the stop. A 6.2 SMARTair mobile Check if filter bag 5 is correctly...

  • Page 17: A 6.3 Inserting Or Replacing The Adsorption Filter In Smartair

    6. Insert new adsorption filter 6. Close filter flap 4 (ensure snap-locks engage). Replace cover 1. Hang SMARTair in support frame 7, or system basis and re-connect (see A 5.1). The adsorption filter must be replaced every 6 months.

  • Page 18: A 6.4 Inserting Or Replacing The Adsorption Filter In Smartair Mobile

    6. Insert new adsorption filter 6. Close filter flap 4 (ensure snap-locks engage). Place cover 2 on SMARTair mobile, and re-locate. Set up SMARTair mobile at desired location and re-connect (see A 5.2). The adsorption filter must be...

  • Page 19: A 7 Operation And Function Elements

    SMARTair. SMARTair mobile. A 7 Operation and function elements A 7.1 SMARTair 1 Rating plate 2 Lid 3 Filter nozzle 4 Filter bag 5 Suction intake opening 6 Touch pad 7 Housing cover, filter casing 8 Mains switch 9 Lock, housing cover...

  • Page 20: A 7.2 Smartair Mobile

    SMARTair. SMARTair mobile. A 7.2 SMARTair mobile 1 Finger grip 2 Cover filter casing 3 Filter nozzle 4 Filter bag 5 Suction intake opening 6 Transport grip 7 Housing cover 8 Touch-pad 9 Lock, housing cover 0 Mains switch q Voltage selector switch...

  • Page 21: A 8 Operation

    SMARTair mobile, is automatically switched on or off together with the connected ancillary unit. Switch on the ancillary unit. SMARTair , or mobile, also starts automatically. After switching off the ancillary unit, the connected suction unit continues to run for a few seconds and then switches itself off.

  • Page 22: A 8.4 Suction Levels

    (+) 7 and (-) 8 (green LED’s illuminate). From Software version 2.0, the set level can be saved and stored in memory after SMARTair is switched off. Identifying the software version Switch On after 2 seconds...

  • Page 23: A 8.5 Fine-Tuning For Automatic Operation

    SMARTair. SMARTair mobile. A 8.5 Fine-tuning for automatic ope- ration in automatic position Switch on at the mains switch 1 Ta ir SM AR m ob ile In the adjustment mode, press key 8 “Automatic“ / “Continuous operation“ and hold for about 3 seconds until LED’s 2 and # blink.

  • Page 24: A 9 Maintenance

    Push the new filter bag 8 with cardboard frame 0 on the nozzle 9, and check for firm fit. Replace the lid 3 and slide SMARTair in support frame 2, or system basis, up to the stop. A 9.2 Changing the filter bag SMARTair mobile Press the mains switch p to the “OFF“...

  • Page 25: A 9.4 Installing Or Changing The Micro-Filter In Smartair

    A 9.4 Installing or changing the micro-filter in SMARTair Micro-filter 9 can be installed in SMARTair , as an option. The micro-filter 0 must be replaced every two years, for safety reasons. Press the mains switch 4 to the “OFF“...
  • Page 26 Close the filter flap 5 (engage the snap- locks 6 ). Replace cover 7 and adjust into position. Slide SMARTair up to the stop in support frame 8, or the system basis. Reconnect the mains supply and the connection cable from the suction to the...

  • Page 27: A 9.5 Installing Or Changing The Micro-Filter In Smartair Mobile

    Disconnect the plug and the connection cable from the suction to the supplementary unit. Place SMARTair mobile in an accessible position. Open the housing cover lock 3 and remove cover “ at the filter casing. Release snap-locks 8 and open the filter flap 7.
  • Page 28 Close the filter flap 6 (engage the snap- locks 5 ). Replace cover 7 and adjust into position. Reconnect the mains supply, and the connection cable from the suction to the supplementary unit. Re-set SMARTair mobile into the operational status.

  • Page 29: A 10 Trouble-Shooting

    C• Fuse 4 for the ancillary unit is defective. R• Change the fuse and check for technical problems at the ancillary unit. C• Fuse 5 for SMARTair plus or SMARTair plus mobile is defective R• Change the fuse and check if the mains voltage and fuse meet the requirements (see A 3 Technical Data).

  • Page 30: B 1 Important Information

    SMARTair. SMARTair mobile. B 1 Important information B 1.1 Transport and storage The packaging consists of board, Ethafoam and Styropor with supercorrugated cardboard as additional packaging. Information on transport and unpacking is printed on the outside. It applies to transport and storage.

  • Page 31: B 1.2 What To Do In The Event Of Damage During Transport

    Contact KaVo, Shipping Department, within 4 days. Tel: (0 75 61) 86-0 In order to make any claims for the damage, KaVo requires the shipping note with confirmation of damage. On no account return damaged goods to KaVo before contacting KaVo.

  • Page 32: Guarantee Conditions

    Under valid KaVo EWL delivery and payment conditions, KaVo EWL gives a guarantee of satisfactory function and freedom from faults in material and manufacture for the duration of 6 months from the date of sale certified by the vendor. After expiry of the warranty, KaVo gives a guarantee of another 6 months for damage attributable to deficiencies in the material or in manufacture.

  • Page 33: Declaration Of Conformity

    SMARTair. SMARTair mobile.

  • Page 34: Spare Parts Smartair

    03.2003 Auslieferung der SMARTair mit 1 Sicherung (0.266.4086) ab 04.2003 Auslieferung der SMARTair mit 2 Sicherungen (0.266.4086) Ersatzplatinen werden grundsätzlich mit 2 Sicherungen (0.266.4086) ausgeliefert. Ist an Ihrer SMARTair nur 1 Sicherung vorhanden muß eine Elektronikaufnahme (1.001.2460) mitbestellt werden...
  • Page 35 SMARTair. SMARTair mobile. 1.001.8191 1.000.7198 0.658.1861 1.000.3147 0.658.9802 0.658.2160 (5 Stk.) DE 1.002.2525 GB 1.002.2529 DE 1.001.8593 CH 1.002.2527 GB 1.001.8597 US 1.002.2528 CH 1.001.8594 AUS 1.002.2530 US 1.001.8595 AUS 1.001.8598...

  • Page 36: Spare Parts Smartair Mobile

    Beachte: bis 03.2003 Auslieferung der SMARTair mit 1 Sicherung (3,15A) ab 04.2003 Auslieferung der SMARTair mit 2 Sicherungen (3,15A + 4A) Ersatzplatinen werden grundsätzlich mit 2 Sicherungen ausgeliefert. Ist an Ihrer SMARTair nur 1 Sicherung vorhanden muß eine Elektronikaufnahme (1.001.2459) mitbestellt werden...
  • Page 37 SMARTair. SMARTair mobile. 1.001.8191 1.000.7198 0.658.1861 1.000.3147 0.658.9802 0.695.1402 1,2 m 0.224.6596 0.658.2160 (5 Stk.) 1.002.1220 DE 1.002.2525 GB 1.002.2529 CH 1.002.2527 DE 1.001.8593 US 1.002.2528 GB 1.001.8597 AUS 1.002.2530 CH 1.001.8594 US 1.001.8595 AUS 1.001.8598...
  • Page 38 K12 4940 D D - - 8 8 8 8 2 2 9 9 9 9 L L E E U U T T K K I I R R C C H H . . T T e e l l e e f f o o n n 0 0 7 7 5 5 6 6 1 1 / / 8 8 6 6 - - 1 1 5 5 0 0 · · F F a a x x 0 0 7 7 5 5 6 6 1 1 / / 8 8 6 6 - - 2 2 6 6 5 5 I I n n t t e e r r n n e e t t : : w w w w w w .
