Care instructions
ESTETICA E50
Always be on the safe side.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESTETICA E50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KaVo ESTETICA E50

Summary of Contents for KaVo ESTETICA E50

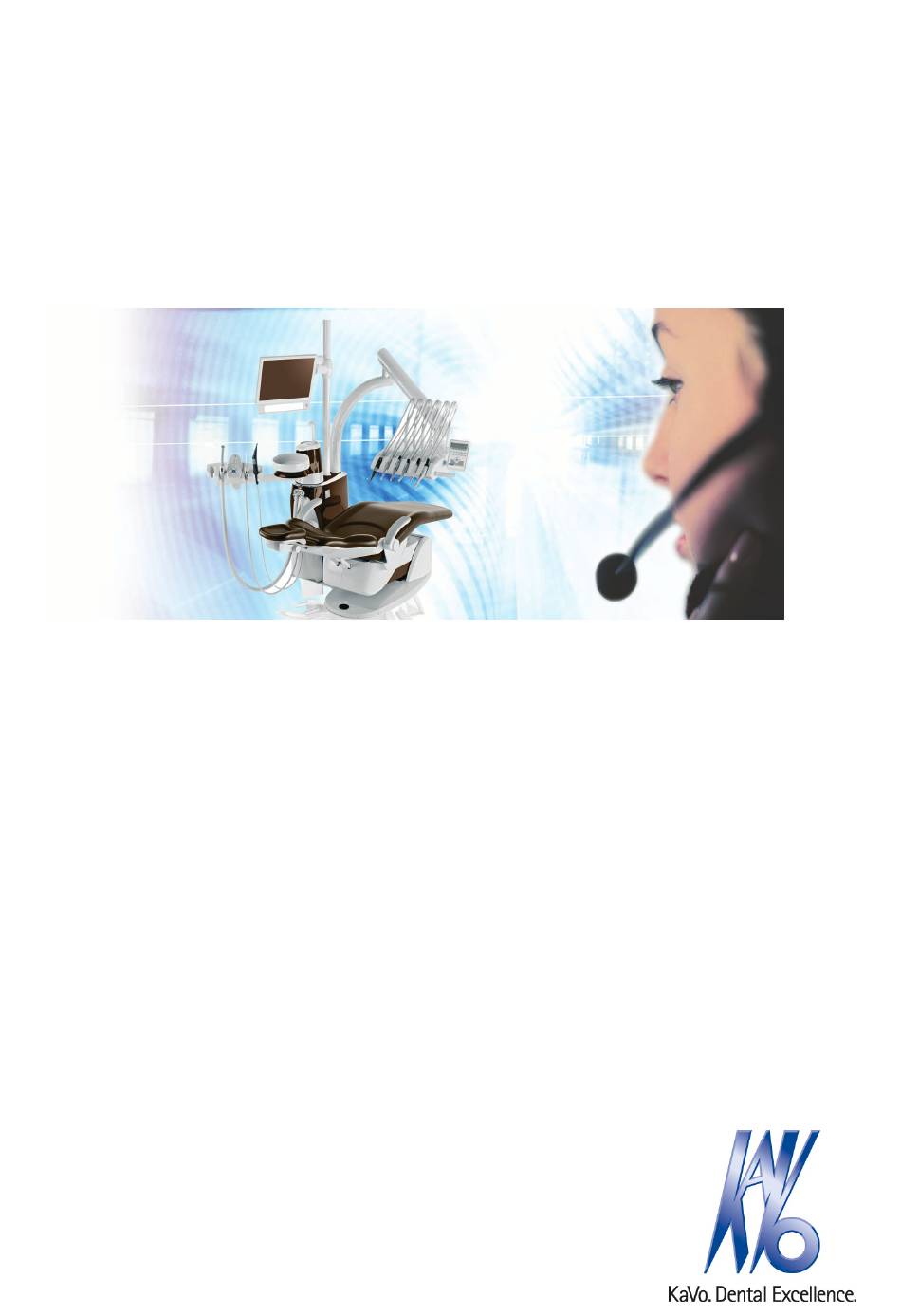

  • Page 1 Care instructions ESTETICA E50 Always be on the safe side.
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach Tel. +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    Target group ......................... 2 Setup methods according to DIN EN ISO 17664 ..................3 2.1 References ............................3 2.2 General instructions for the reprocessing of KaVo treatment units ........... 3 2.2.1 Overview ESTETICA E50 reprocessing ................5 2.3 Reprocessing of the surfaces of treatment unit / upholstery ............. 5 2.4 Preparation of the dentist unit ......................

  • Page 4: User Instructions

    Care instructions ESTETICA E50 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first use to avoid misuse and prevent damage. Note Comply with the Instructions for Use of theESTETICA E50 treatment unit! 1.1.1 Abbreviations...

  • Page 5: Setup Methods According To Din En Iso 17664

    The preparation methods for the instruments and motors are found in the separate instructions for use that accompany the instrument and motor packages. 2.2 General instructions for the reprocessing of KaVo treatment units Please comply with the general reprocessing instructions at all times. Detailed prod‐...
  • Page 6 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.2 General instructions for the reprocessing of KaVo treatment units Cleaning preparations ▶ Comply with product-specific reprocessing instructions. Manual cleaning Fixtures: ▪ Brush or cloth ▪ Tap water 30 °C ± 5 °C ▶...

  • Page 7: Overview Estetica E50 Reprocessing

    All sterilisable products are temperature resistant up to max. 138 °C. KaVo recommends sterilisation in a steam steriliser (autoclave) according to EN 13060 / ISO 17665-1, e.g. STERIclave B 2200 / 2200 P (KaVo) or Citomat K-Series (Getinge). ▶ Sterilise with a triple fractionated vacuum (B class steriliser); hold for 4 minutes;...
  • Page 8 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.3 Reprocessing of the surfaces of treatment unit / upholstery Turn device off ▶ Switch main device switch off. Cleaning and disinfecting the surfaces of treatment unit / upholstery CAUTION Non-colour-fast textiles.

  • Page 9: Preparation Of The Dentist Unit

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.4 Preparation of the dentist unit Cleaning and disinfection of the foot control CAUTION Damage caused by inappropriate use of water. Damage to the foot control.
  • Page 10 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.4 Preparation of the dentist unit Cleaning and disinfection of the handle of the S table and holder pads ▶ Press the push button and pull off the handle.

  • Page 11: Reprocessing Of The Instrument Holder Of The Tm Table

    Note Wet the O-ring with silicone grease (Mat. no. 1.000.6403) or KaVo Rota Spray 2 (Mat. no. 0.411.7510) after sterilisation. After replacing the cannula, the air channel must be blown out before the start of treatment to ensure that the air exiting during treatment is dry.
  • Page 12 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.4 Preparation of the dentist unit Cleaning of the three- and multi-function syringe Machine cleaning Not applicable. CAUTION Damage caused by improper cleaning/disinfection. ▶ Do not wash the gripping sleeve and the cannula in the thermodisinfector.
  • Page 13 Requirement The multi-function syringe has been rehabilitated. ▶ Apply KaVo silicone grease (Mat. no. 1.000.6403) or KaVo Rota Spray 2 (Mat. no. 0.411.7510) to the O-rings of the joint between the gripping sleeve and cannula. Use cotton buds for this purpose.
  • Page 14 The medical device is resistant to temperatures of up to 138 °C. KaVo recommends, e.g.: ▪ STERIclave B 2200/ 2200P made by KaVo ▪ Citomat/ K-series made by Getinge ▶ Weld the cannula and grip sleeve in sterile goods packaging.

  • Page 15: Preparation Of The Instrument Hoses

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.4 Preparation of the dentist unit Storage ▶ Prepared products should be stored protected from dust with minimum exposure to germs in a dry, dark and cool room.
  • Page 16 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.4 Preparation of the dentist unit Note The return air filter is in the same position in the dentist unit variant with S table. 2.4.6 Reprocessing of the kit for physiological saline solution The kit for physiological saline solution is optional.

  • Page 17: Reprocessing Of The Assistant Unit

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.5 Reprocessing of the assistant unit 2.5 Reprocessing of the assistant unit 2.5.1 Preparing the connector for the suction hose ▶ Remove connectors ① and ② from the suction hoses.

  • Page 18: Preparation Of The Patient Unit

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.6 Preparation of the patient unit ▶ Hold the napkin under the sieve seat, and pull the sieves out of the housing. ▶ If needed, insert a new sieve insert (Mat. no. 0.763.3423) into the seat.
  • Page 19 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.6 Preparation of the patient unit Note Inspect the O-ring (Mat. no. 0.200.6128) for damage and exchange if necessary to prevent water or oxidation damage. ▶ Remove tumbler holder ① (Mat. no. 0.764.8541) by pulling upwards.

  • Page 20: Preparation Of The Spittoon

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.7 Automatic hygiene function of the water-conducting system 2.6.3 Preparation of the spittoon Cleaning and disinfection of the spittoon bowl CAUTION Damage caused by inappropriate cleaning agents.

  • Page 21: Rinsing Programme

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.7 Automatic hygiene function of the water-conducting system CAUTION Health damage due to germ formation. Infection hazard. ▶ Before starting, rinse all the water drain lines without instruments.
  • Page 22 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.7 Automatic hygiene function of the water-conducting system Place the instruments on the sterilisation attachment The cannulas of the three- and multi-function syringes must be taken off for the rinsing programme and intensive disinfection.
  • Page 23 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.7 Automatic hygiene function of the water-conducting system ▶ For the rinsing programme and intensive disinfection, press the seat adapter into one of the four rubber seats of the disinfection attachment.

  • Page 24: Intensive Disinfection

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.7 Automatic hygiene function of the water-conducting system The selected rinse program starts. ▶ Turn off the device and do not restart it until the next morning.
  • Page 25 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.7 Automatic hygiene function of the water-conducting system Start intensive disinfection ▶ Press the "Intensive disinfection" button until you hear a beep and the top LED flashes.
  • Page 26 Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.7 Automatic hygiene function of the water-conducting system Skip exposure phase This function is required when the disinfection procedure has already been started and the treatment unit needs to be used (for example in an emergency, at hospitals, etc.).

  • Page 27: Reprocessing And Automatic Hygiene Functions Of The Suction System

    2 Setup methods according to DIN EN ISO 17664 | 2.8 Reprocessing and automatic hygiene functions of the suction system Additional intensive disinfection during period of non-use KaVo recommends carrying out an additional intensive disinfection at universities during semester breaks. This flushes the parts of the unit and replaces the disin‐ fection liquid.

  • Page 28: Preparation Of The Amalgam Separator

    Care instructions ESTETICA E50 2 Setup methods according to DIN EN ISO 17664 | 2.9 Preparation of the amalgam separator through the supply of fresh, clear water (limited rinsing). The water is sucked out of the Aquamat through the filter housing to the separation system. The spittoon bowl rinsing is alternately turned on and off.

  • Page 29: Replenish And Check The Disinfectant

    3 Replenish and check the disinfectant | 3.1 Replenish oxygenal 3 Replenish and check the disinfectant 3.1 Replenish oxygenal In KaVo water disinfection systems, only oxygenal (Mat. no. 0.489.3451) may be used. The oxygenal consumption depends on the water consumption during the treatment of patients.

  • Page 30: Refilling Oxygenal When Using The Water Bottle

    Care instructions ESTETICA E50 3 Replenish and check the disinfectant | 3.1 Replenish oxygenal ▶ Top off the oxygenal (max. 1 litre) Note Do not fill through the centre opening (tumbler drain).Do not fill through the centre opening (tumbler drain).
  • Page 31 Care instructions ESTETICA E50 3 Replenish and check the disinfectant | 3.1 Replenish oxygenal Dosing attachment: (Mat. no. 1.002.0287) Removing and cleaning the water bottle ▶ Slowly turn the water bottle counterclockwise to take it off. Note This allows the over-pressure to be released slowly from the water bottle.
  • Page 32 Care instructions ESTETICA E50 3 Replenish and check the disinfectant | 3.1 Replenish oxygenal ▶ Screw the oxygenal dosing facility tightly onto the oxygenal bottle. ▶ Rotate the orifice in the lid to a filling level of 1.5 litres. Lid snaps-in in the filling position.
  • Page 33 Care instructions ESTETICA E50 3 Replenish and check the disinfectant | 3.1 Replenish oxygenal ▶ Fill the water bottle from the oxygenal bottle. Make ensure that the pouring opening of the oxygenal dosing facility (spout) is right above the opening of the water bottle.

  • Page 34: Checking The Oxygenal Concentration

    Care instructions ESTETICA E50 3 Replenish and check the disinfectant | 3.2 Checking the oxygenal concentration Note Substances remaining in the dosing head are not contamination, but rather agents that are deposited there during extended periods of non-use after condensation of the water.
