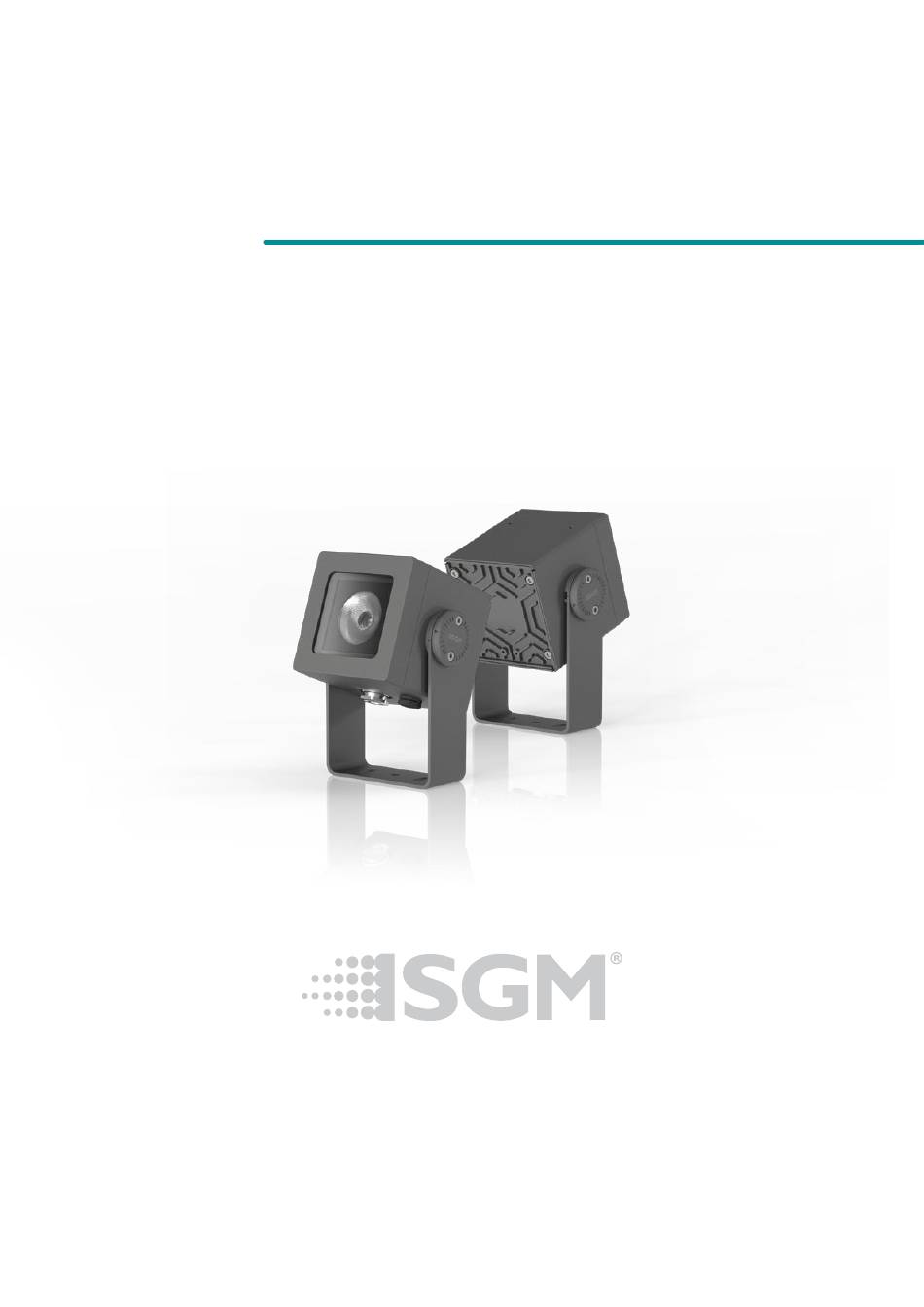

- Page 1 USER MANUAL POI-15 Wash Document Revision A | Released 2025-30-04...
-
Page 2: Poi-15 Wash Poi Dimensions
The SGM logo, the SGM name, and all other trademarks in this document pertaining to SGM services or SGM products are trademarks owned 88mm or licensed by SGM, its affiliates, and subsidiaries. -
Page 3: Table Of Contents
CONTENT POI-15 WASH POI DIMENSIONS 4 SAFETY INFORMATION 5 BEFORE INSTALLING THIS PRODUCT 6 OVERVIEW 6 UNPACKING AND PREPARING FOR INSTALLATION 6 Unpacking 6 Application Considerations 7 INSTALLATION POI 15 WASH 7 Identification and terminology of POI-15 Wash 8 Temporarily Connecting Power 8 Temporarily Connecting Data for Configuration 10 LED INDICATOR 10 SETTINGS 10 INSTALLATION 11 PERMANENTLY CONNECTING POWER &... -
Page 4: Safety Information
WARNING! READ THE FOLLOWING SAFETY PRECAUTIONS CAREFULLY BE FORE UNPACKING, INSTALLING, POWERING OR OPERATING THE DEVICE. SGM fixtures are intended for professional use only. They are not suitable for household use. Les fixtures SGM sont impropre à l’usage domestique. Uniquement à usage professionnel. -
Page 5: Before Installing This Product
BEFORE INSTALLING THIS PRODUCT VISUAL INSPECTION All users of the SGM fixtures should regularly clean those parts of the fixture directly exposed to the elements, such as the external housing and front lenses. Additionally, all owners of the SGM fixtures must periodically check the external housing of the fixture for structural breaks, deteri- oration, cracked lenses, or loose screws. -
Page 6: Overview
final installation. This is especially true in installations where the fixtures will be in inaccessible areas. The POI WASH family is configured with the RDM Addressing Tool. All software is PC based and available for download from the SGM website. APPLICATION CONSIDERATIONS •... -
Page 7: Installation Poi 15 Wash
INSTALLATION POI-15 WASH IDENTIFICATION AND TERMINOLOGY OF POI-15 WASH A: Color LED B: Tilt Lock C: LED Indicator D: DMX and Power E: Hydrophobic membrane Illustrations might vary from received products. This is subject to change without notice. PLEASE NOTE! FIXTURES SHOULD BE PRE-SET WITH ANY CUSTOM CONFIGURATION AND PROGRAMMING BE- FORE INSTALLATION. -
Page 8: Temporarily Connecting Power
The power input required is 100–277 V, 50/ 60 Hz AC mains power supply, and the fixture draws a maximum of 15W (POI-15 WASH). TEMPORARILY CONNECTING DATA FOR CONFIGURATION For programming and addressing, the POI WASH family can be connected using the SGM POI USB- to DMX up-load- er cable. Configuration through DMX Cable The bare end data wires from the fixture are connected to the POI Up-loader cable for addressing and configura-... - Page 9 In order to do so, make sure the fixture is pow- ered on before taking the following steps: STEP 1: Using a SGM magnetic spanner tool, place the mag- net close to the POI LED indicator, and wait for 3 seconds.
-
Page 10: Led Indicator
Fixture is too hot SETTINGS The POI WASH fixtures are configured using the SGM software; the SGM RDM Addressing Tool. This software is Win- dows® PC based and connects to the fixtures via DMX512/RDM using the SGM USB uploader cable. -
Page 11: Permanently Connecting Power & Data
Connecting DMX and AC Power in POI Power, DMX input and DMX output are in the same cable. See more in figure above about the SGM POI cable. For permanent installations, have a qualified electrician wire the mains cable directly to a suitable branch circuit. -
Page 12: Rdm
DMX Personality Description 0x0090 GET/ SET Factory Defaults 0x0080 Device Model Description 0x8060 Serial Nr. 0x0051 Parameter Description 0x8634 GET/ SET LOSS 0=H 1=WHI 2=OFF 0x0200 Sensor Definition 0x863B GET/SET Prior 0=WIRED 1=WIRELESS POI-15 Wash Revision A | Released 2025-30-04... -
Page 13: Accessories And Installation
ACCESSORIES AND INSTALLATION ANTI GLARE SHIELD Full Anti-Glare Shield Half Anti-Glare Shield Diffuser POI-15 Wash Revision A | Released 2025-30-04... -
Page 14: Maintenance
MAINTENANCE FIRMWARE UPDATES The latest firmware, manuals and the SGM Network Admin tools are all available for free download a www.sgmlight- ing.com. The SGM Light firmware tool is used to update firmware: Fixture firmware version can be identified by: • Connect either Std or POI uploader cable depending on which is more suitable for the installation •... -
Page 15: Sgm Vacuum Test Kit
SGM Uploader cable POI CLEANING SGM fixtures with IP65 or IP66-rating do not need any cleaning procedures inside the fixture. However, cleaning the front lens may be needed to achieve the maximum light output after exposure to dust, sand, or dirt. The exterior housing can also be cleaned to get a better look. -
Page 16: Fixtures And Accessories
FIXTURES AND ACCESSORIES The fixture can be used with a variety of accessories. Contact your local SGM dealer to get the latest pricing and news about available accessories. PLEASE NOTE! THE LIST BELOW IS SUBJECT TO CHANGE WITHOUT NOTICE. ORDERING INFORMATION... -
Page 17: User Notes
USER NOTES POI-15 Wash Revision A | Released 2025-30-04... - Page 18 SGM LIGHTING APS Sommervej 23 8210 Aarhus V Denmark Tel: +45 70 20 74 00 info@sgmlighting.com www.sgmlighting.com...
