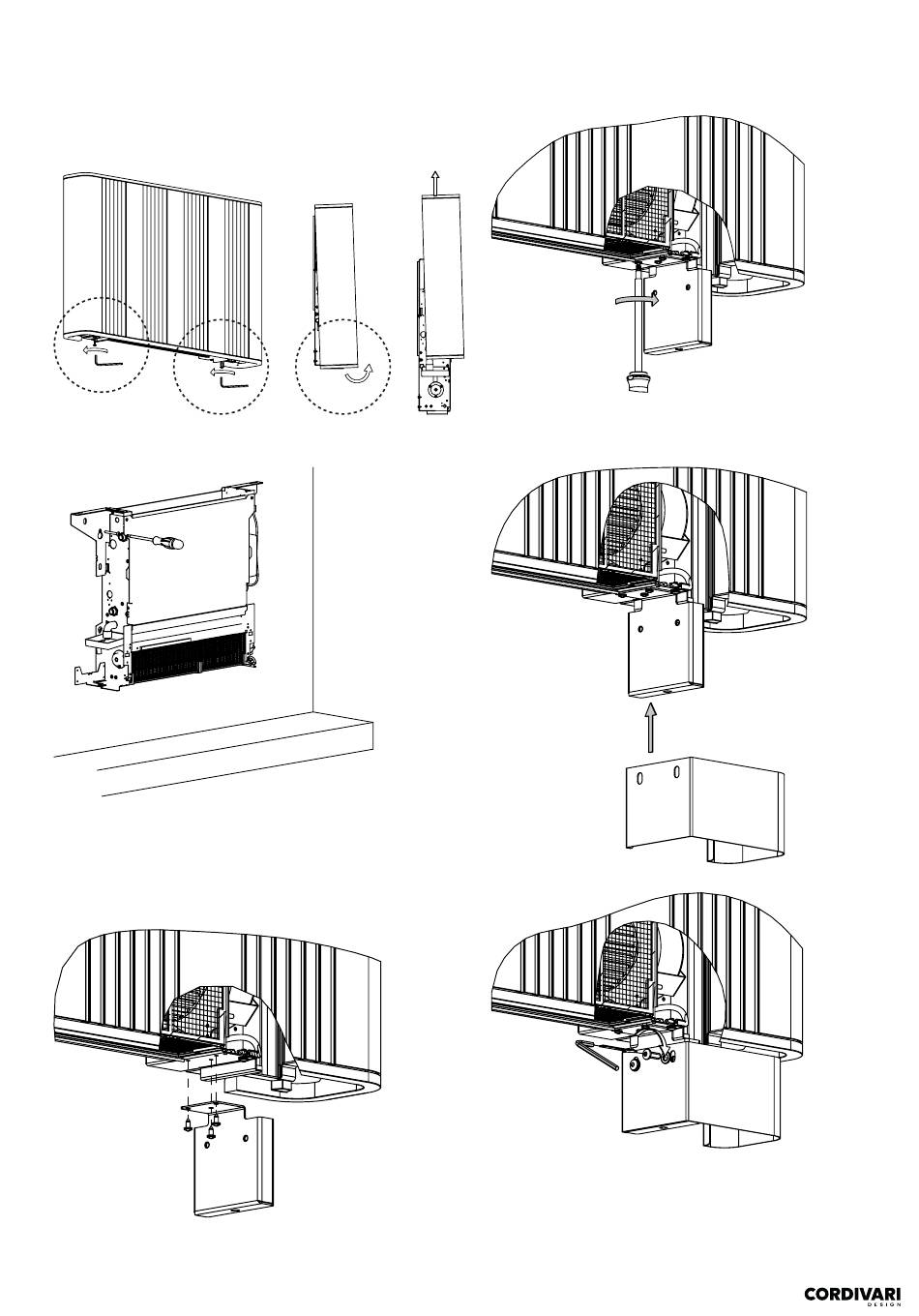

4. Loosen the screws at the bottom using the hexagonal key. Slightly
rotate and lift the front casing, disengaging it from the heat exchange
unit. Take care not to damage the casing.
5. Fasten the heat exchange unit using the self-tapping screws.
To reassemble the front casing, follow steps 3 and 4 in reverse order.
A wall mounting kit with floor anchors and covers, which are useful for
concealing pipes and plumbing drains coming from the floor, is also provided
as an optional. Please refer to the kit instructions or proceed as follows:
1. Fasten the foot supports on the bottom of the unit using the self-
tapping screws.
Cod. 1910000000085 - nv02
2. Secure the covers on the supports using the metric screws and adjust
the vertical stroke according to the installation height from the floor.
