temperature, the product, despite the insulating elements inside,
may create condensation on the metal structure. For this reason, it is
necessary to carry out thorough checks on the conditions of use and
operation (psychrometric analysis) and make sure that the above-
mentioned valves are not required. Cordivari S.r.l shall not be liable in
any way for damage caused by such condensation.
Normal conditions of use of the product involve a distance of 20 cm
between the Wi-Fi antenna and the human body.
5 . Installer information
Do not open or tamper with the packaging before
installation. The unit may only be handled by personnel
who are specialised in these operations and have
experience of the same. When opening the package,
check that the unit has not been damaged during
transport and that it is complete along with all its parts.
To open the packaging follow the instructions below:
1. Check for visible damage
2. Open the package
3. Check that all the components are correctly present
4. Do not throw away the packaging: the installation template is on the
back of the box (see next paragraph)
5. After proper installation, dispose of the packaging materials in
compliance with the municipal regulations of the area you are based
in
The unit must be handled carefully to avoid damaging
the external structure, internal mechanisms and
electrical components. Make sure that there are no
obstacles on the way to the installation site that could
cause the risk of collision, falling or overturning of the
unit. All the operations described below must be performed in compliance
with all prevailing health and safety at work regulations.
This product is subject to the general warranty conditions set forth in the
current official Cordivari catalogue. The warranty is valid from the date of
delivery and is void if the production batch label is tampered with and/
or removed. The warranty applies after the examination of defects and
their causes. The material to be replaced or repaired shall be delivered
ex-warehouse at the dealer. The commitment to provide the warranty is
subject to the conditions and requirements described below.
The radiator has not been damaged during transport, handling or
installation and no repair and/or tampering has been carried out by third
parties without express authorisation. Before installation, the material
has been stored in good conditions and under shelter form the weather.
Product installation must be carried out by qualified personnel and in
compliance with these instructions and all national and local regulations
concerning installation and safety.
6 . Wall mounting
Wall mounting of the unit must be carried out according to the instructions
below. Wall mounting of the unit must be carried out according to the
instructions contained in the fastening support package and the figures
below. The fastening systems (screws+blocks) are suitable for compact
walls or hollow brick walls. For walls made of different materials, the
installer is responsible for the use of suitable fastening systems. The
minimum distance between the floor and the base of the unit must not
be less than 100 mm, in order to allow proper air intake. The minimum
distance between the sides of the metal casing and the walls must
not be less than 100 mm, in order to allow for proper removal. Finally,
the minimum distance between the top of the unit and any wall and/or
obstacle must not be less than 400 mm, in order to allow for proper air
expulsion.

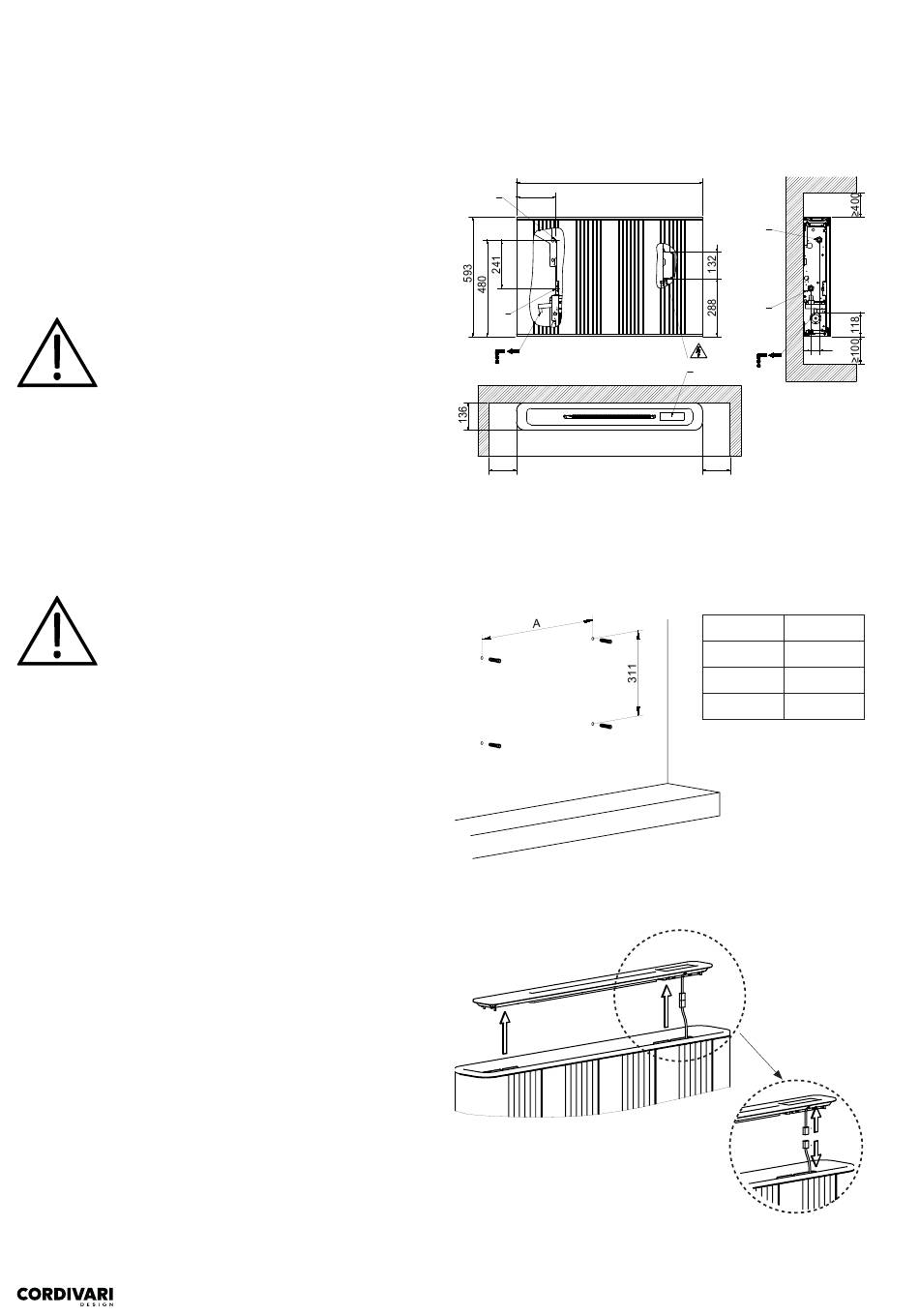

IN 1/2" 194
OUT
1/2"
≥100
There is an installation template on the back of the product box.
Procedere come segue:
1. Cut out the box to obtain the installation template.
2. Position the template on the wall and/or use the dimensions shown in
the table below to drill the holes at the points indicated and apply the
expansion plugs.
3. Lift the control station and disconnect the connection cable to the user
interface. Take care not to damage the control station.
- 18 -
L
IN
1/2"
OUT
1/2"
DISPLAY
≥100
Mod.
2000
4000
6000
Cod. 1910000000085 - nv02
42
A
364
564
764
