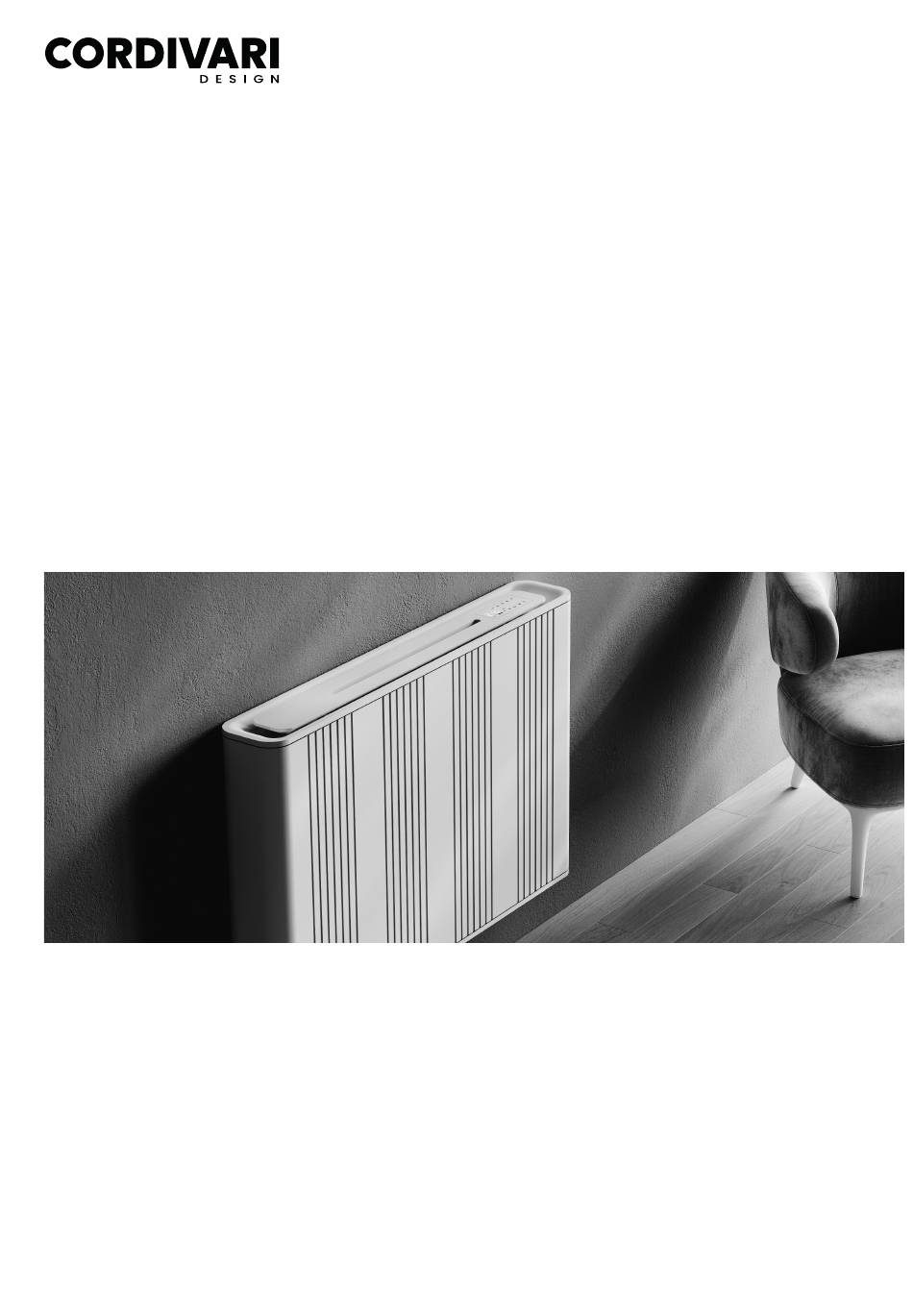

- Page 1 Use and maintenance manual Models: VNT2000 Design Run VNT4000 Design Run VNT6000 Design Run VNT2000 Design Seven Lines VNT4000 Design Seven Lines VNT6000 Design Seven Lines www.cor divar i. co m w w w.cor d iva r ides ig n. com...
- Page 2 Index English 1 . General warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
- Page 3 • Once the product is removed from the package check its integrity. If the product is damaged, do • The unit must be positioned so that the not use it and contact the Cordivari assistance electronic control can perfectly detect the room network.
- Page 4 User and • Top cover made of high-strength V0 plastic the Company owning the App. Cordivari S.r.l., in the latter case, is to • Finned heat exchanger with hydrophilic coating, high heat exchange be considered an external and extraneous party to the aforementioned efficiency and G1/2"...
- Page 5 (psychrometric analysis) and make sure that the above- mentioned valves are not required. Cordivari S.r.l shall not be liable in IN 1/2" any way for damage caused by such condensation.
- Page 6 English 4. Loosen the screws at the bottom using the hexagonal key. Slightly rotate and lift the front casing, disengaging it from the heat exchange unit. Take care not to damage the casing. 2. Secure the covers on the supports using the metric screws and adjust 5.
- Page 7 English 7 . Hydraulic connection 7 .1 Connection to system pipes The hydraulic connection can be made either with system pipes from the wall or from the floor. Install the suitable unit shut-off valves. Proceed as follows: Remove the protective caps from the connectors. Connect system pipes using a G1/2”...
- Page 8 English DC Fan Motor Inlet water (White) temperature sensor Blue Valve (Green) Inlet air temperature sensor Brown Power Plug Valve 1 8 . Electrical connection Wired Before making the electrical connection, check the nominal voltage of the Valve 2 Controller Reserved interfaces unit (230 V AC 50 Hz) is equal to the mains voltage, and that the socket In case of damage, the power cable of these radiators can be replaced.
- Page 9 English 10 . Operating instructions HEATING, COOLING or AUTO. When the mode has been selected, the corresponding icon remains lit. HEATING mode: in order for the unit to work in this mode, the water flow 10 .1 User interface display temperature in the circuit must be above 24°C.
- Page 10 English To access to the current status parameter display, with the unit in standby, press the UP/DOWN keys simultaneously for 3 seconds, paying particular attention to simultaneity. Use the UP/DOWN keys to scroll to the desired parameter and use the MODE key to view the current parameter value.
- Page 11 English After the unit has been added, the name can be changed. 5. Connect to the app in WiFi default mode (Method 2) following the The unit's management interface appears as in the figure below. steps below 5.1 Reset the unit and press for a long time.
- Page 12 DECLARATION OF CONFORMITY 2. Pull out the filter as shown below. The company Cordivari S.r.l., with registered office in Zona Industriale Pagliare, Morro d’Oro (TE), Italy, declares under its own responsibility that the electric Radiators referred to in para. 2 comply with the following...
