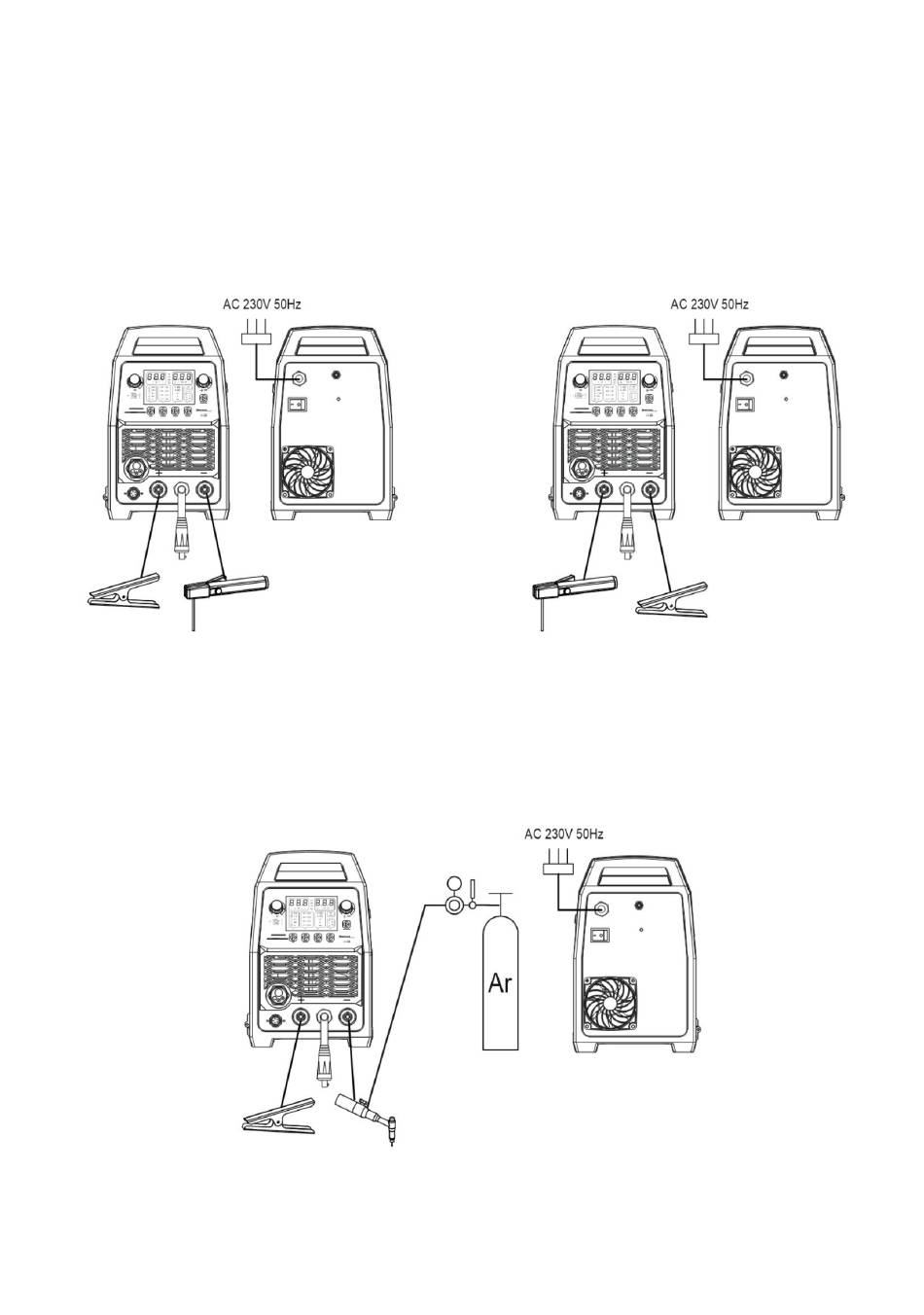

5.1 Connecting the cables
5.1.1 MMA method
The ends of the welding cables should be connected to the sockets (3) and (5) located on the front panel so
that the correct pole for the given electrode is on the electrode holder. The polarity of the welding cable
connection depends on the type of electrode used and is given on the electrode packaging (negative polarity
DCEN or positive polarity DCEP). The return cable clamp should be carefully secured to the welded material.
Connect the device plug to a 230V 50Hz mains socket.
5.1.2 TIG method
For welding with this method, it is necessary to use an additional TIG torch. A gas-cooled torch with a current
load of 200A, equipped with a shielding gas control valve, is required.
The current terminal of the handle should be connected to the negative polarity socket (5), and the gas hose to
the reducer on the gas cylinder. The positive pole of the source (3) should be connected to the welded material
using a cable with a clamp. Connect the device plug to a 230V 50Hz mains socket.
DCEN DCEP
