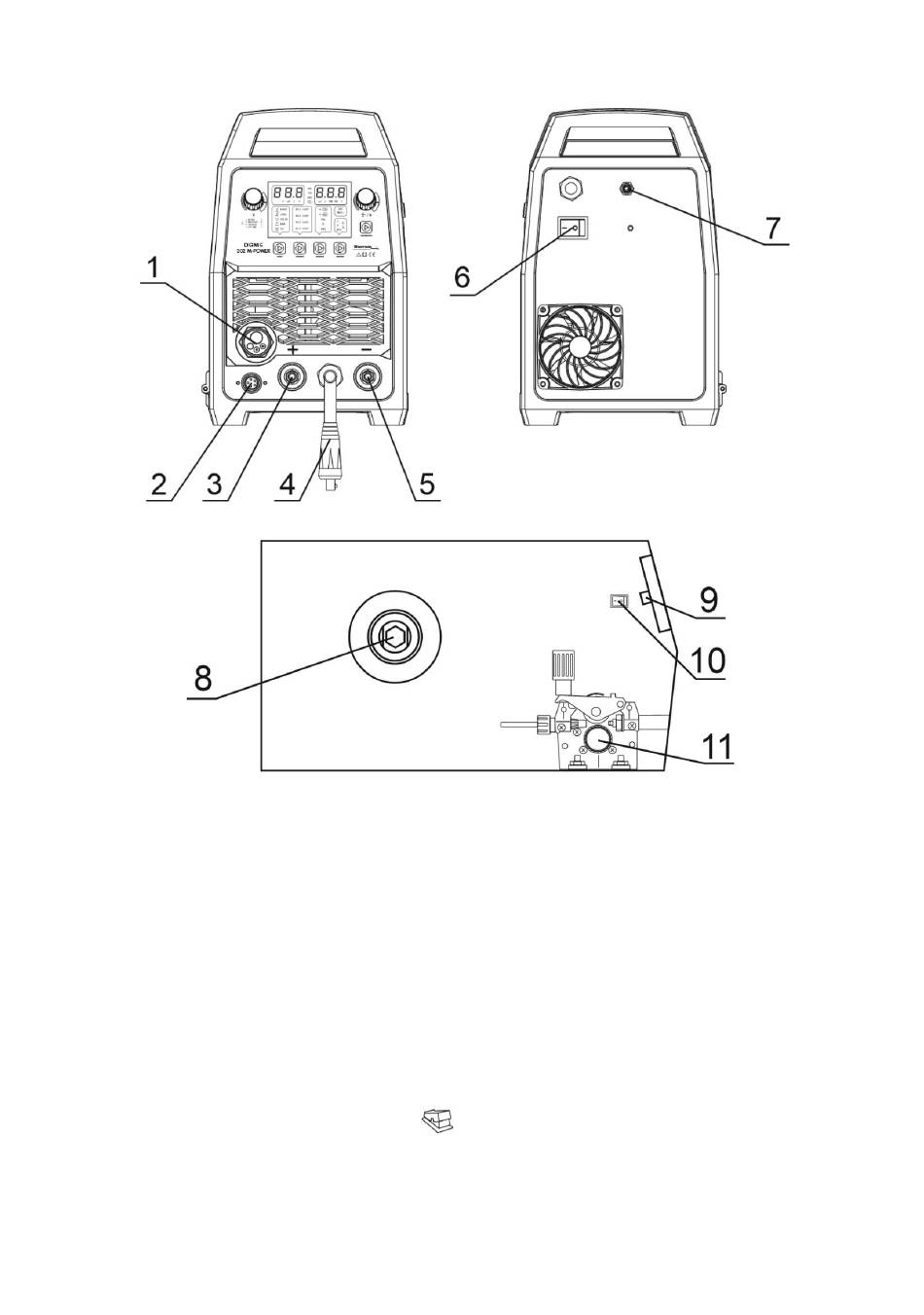

1. MIG gun socket
2. Remote Control/Spool Gun Holder Socket 3. "+" Socket
4. Polarity change plug
5. Socket "-"
6. Power switch
7. Shielding gas connection stub 8. Wire
spool pin
9. Feeder chamber lighting
10. Light switch
11. Wire feeder
5.1 Remote control pedal (option)
The device allows you to connect a remote control pedal. The pedal is active only during TIG welding. It allows
you to adjust the welding current after the arc is struck. The device switches to remote control mode automatically
after connecting the control plug to the socket (2). Switching to this mode
the mode is signaled by the diode lighting up
.
