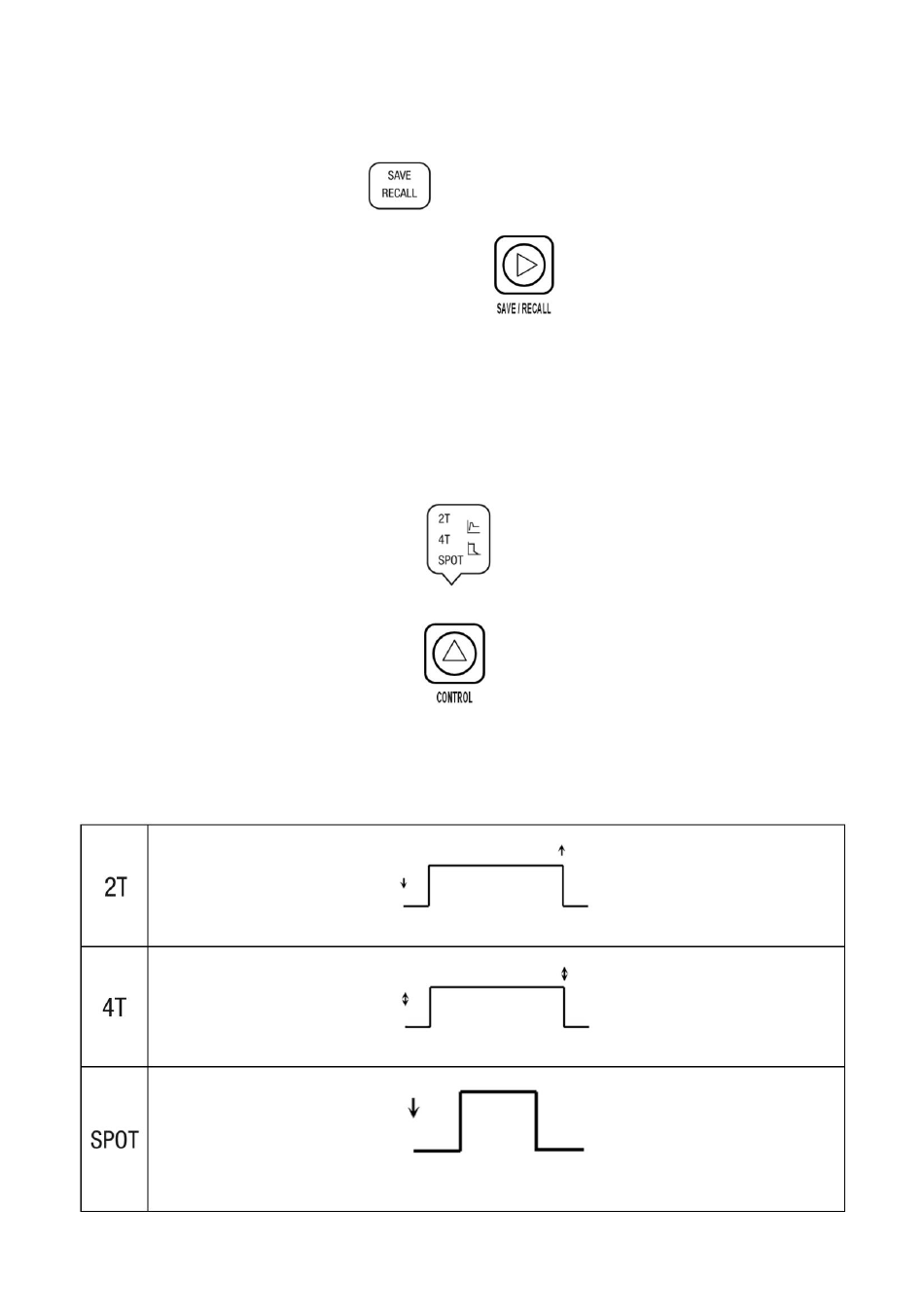

C – Save/Load Settings Button
The button is active only during MIG.MAG welding.
To save the current settings, press and hold the button for 3 seconds, then use the knob (B) to select the channel
number under which they will be saved and confirm the save by pressing the button again.
To load previously saved settings, briefly press the button, then use the knob (B) to select the number under
which they were saved and confirm by pressing the button.
D – Source control button
The button is used to select the welding machine control (MIG/MAG method). During MMA welding, it is used
to select the HOT TART, ARC FORCE and VRD functions. After selecting the function, its adjustment is done by
turning the knob (B). To go to the VRD function adjustment, press and hold the button for 4 seconds.
Two-stroke mode
Pressing the welding torch button will ignite the arc and start welding.
When you release the button, the arc will turn off.
Four-stroke mode
Pressing and releasing the welding torch button will ignite the arc and start welding. Pressing and
releasing the button again will extinguish the arc.
Spot welding.
Pressing the welding gun button will ignite the arc. After the set time has elapsed, the arc will be
extinguished. Releasing the gun button earlier will immediately extinguish the arc.
