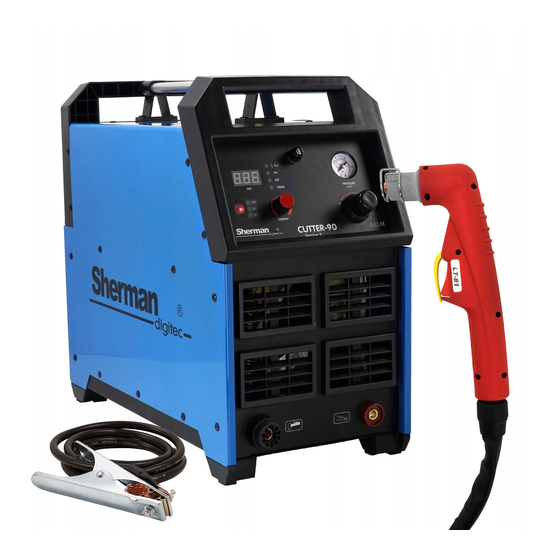

Sherman digitec Cutter 110 User Manual

Inverter plasma cutting
Hide thumbs

Advertisement

Table of Contents

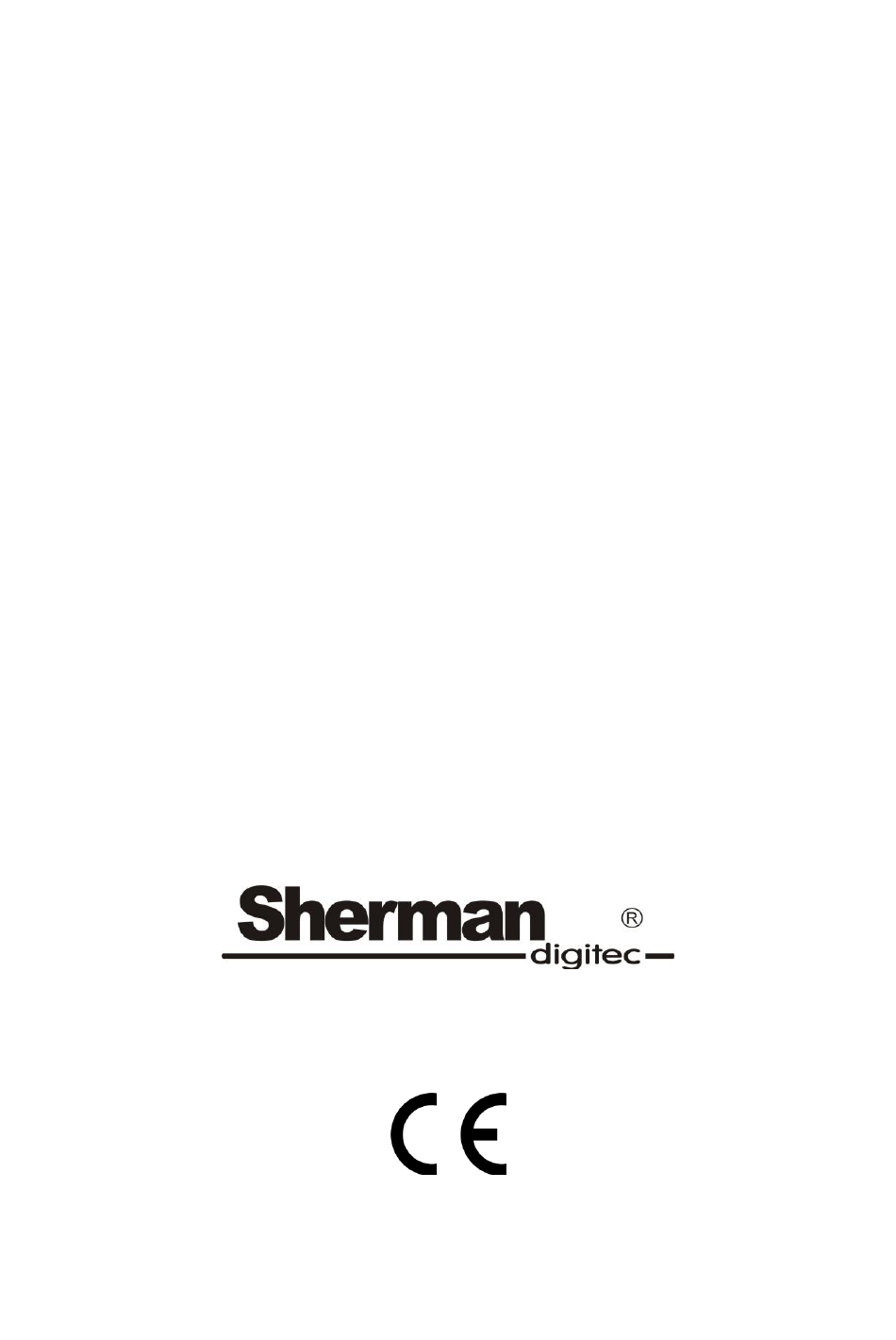

V3.1 18/03/28
USER MANUAL
Inverter PLASMA CUTTING
CUTTER 90 CUTTER 110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cutter 110 and is the answer not in the manual?

Questions and answers

Related Manuals for Sherman digitec Cutter 110

Summary of Contents for Sherman digitec Cutter 110

  • Page 1 V3.1 18/03/28 USER MANUAL Inverter PLASMA CUTTING CUTTER 90 CUTTER 110...

  • Page 2: Prevention Of Electric Shock

    WARNING! Before installing and commissioning, please read these instructions 1. GENERAL Commissioning and operation of the device can be made only after a careful reading of this handbook. Due to the continuous development of technical equipment, some of its functions can be modified and operation may differ in detail from the description in the manual.

  • Page 3: Preventing Burns

    They are an important complement to bench safety instructions and training and briefings given by supervisory staff. 3. GENERAL DESCRIPTION Cutter CUTTER 90 CUTTER 110 serve to air plasma sheets of steel and aluminum and copper. These devices are inverters produced the most technologically advanced components made in IGBT technology.

  • Page 4: Specifications

    1. The devices should only be used in a power supply three-phase, four-wire, with earthed neutral. 2. Plasma cutter CUTTER 90 is adapted to cooperate with 3x400V 50 Hz fused 16A of the operation time-delayed and CUTTER 110 is adapted to cooperate with 3x400V 50 Hz fused 25A by time-delayed action.
  • Page 5 Fig. 1. Scheme of connecting devices 6.1 Connecting the power supply to the mains plug Yellow-green wire (conductor) to be connected to the mains plug in position marked "PN" or "N". Wires black, red, blue are power supply lines to the device (phase) and to be connected to the mains plug at the place indicated by symbols L1, L2, L3 or R1, S2, T3.
  • Page 6 from the device it is normal and indicates proper operation of the drain valve. Filter-dryer does not require additional user support, you only from the device it is normal and indicates proper operation of the drain valve. Filter-dryer does not require additional user support, you only need to periodically its control.

  • Page 7: Air Plasma Cutting

    stationary night be purged for about 30 seconds the plasma cutter holder during the test mode in order to remove condensate from the circuit. This process will extend the operating time of consumables and facilitate start-cutting. The LED (6) indicates overheating and malfunction of the cutter, for example. Voltage drop, short circuit fault. The LED (5) indicates the abnormal voltage or phase failure feeding the LED (4) indicates lack of air supply or air pressure drop below 1.8 bar.

  • Page 8: Before Calling Service

    12. MANUAL OPERATION AND PARTS LIST OF OPERATING Operation of CUTTER 90 CUTTER 110 should take place in an atmosphere free of corrosive components and dusty. Do not place the device in dusty, near the working grinders, etc. Dust and pollution control boards metallic filings, wires and connections inside the unit may cause an electrical short, and consequently damage to the radiator.

  • Page 9: Maintenance Instructions

    CV0028 CV0028 List of consumables handle en and zmowego A-101 type Tra fimet (Cutter 110) List of consumables handle en and zmowego A-101 type Tra fimet (Cutter 110) List of consumables handle en and zmowego A-101 type Tra fimet (Cutter 110) List of consumables handle en and zmowego A-101 type Tra fimet (Cutter 110) Catalog No.

  • Page 10: Electric Scheme

    14. INSTRUCTION STORAGE AND TRANSPORT The device should be stored at -10 ° C to + 40 ° C and relative humidity 80% free of corrosive fumes and dusts. Transportation of packaged devices should be covered means of transport. For transport the packaged unit must be secured against slipping and ensure the correct position. 15.
  • Page 11 Proper implementation of these duties is important especially when the waste equipment contains hazardous components which have a particularly negative impact on the environment and human health. Weight of the device: CUTTER 90 - 27 kg CUTTER 110 - 28 kg TECWELD Peter Polak TECWELD Peter Polak Piekary Slaskie 41-943, ul.

  • Page 12: Declaration Of Conformity

    41-909 Bytom ul. 3 Cross POLAND Dek larujemy that the following products: Plasma cutter type: CUTTER 90 CUTTER 110 Manufacturer's trademark: to which this declaration refers comply with the following European Union directives and national provisions implementing the Directive:...

This manual is also suitable for:

Cutter 90
