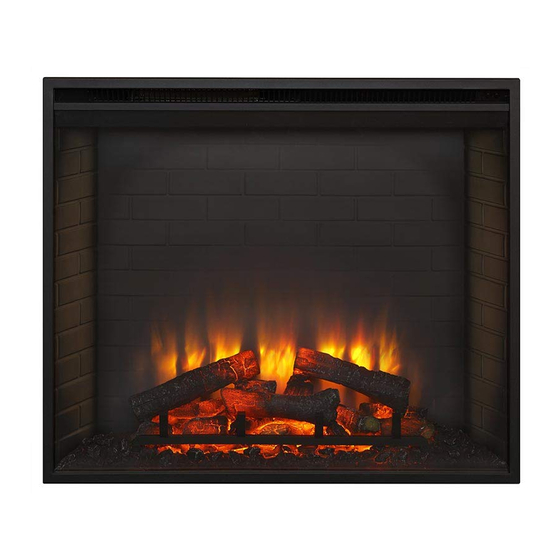

SimpliFire SF-BI30-E Owner's Manual
Hide thumbs
Also See for SF-BI30-E:
- Owner's manual (26 pages) ,
- Owner's manual (16 pages) ,
- Service manual (10 pages)
Table of Contents
Advertisement
Model(s):
SF-BI30-E
SF-BI36-E
• Important operating
a n d m a i n t e n a n c e
instructions included.

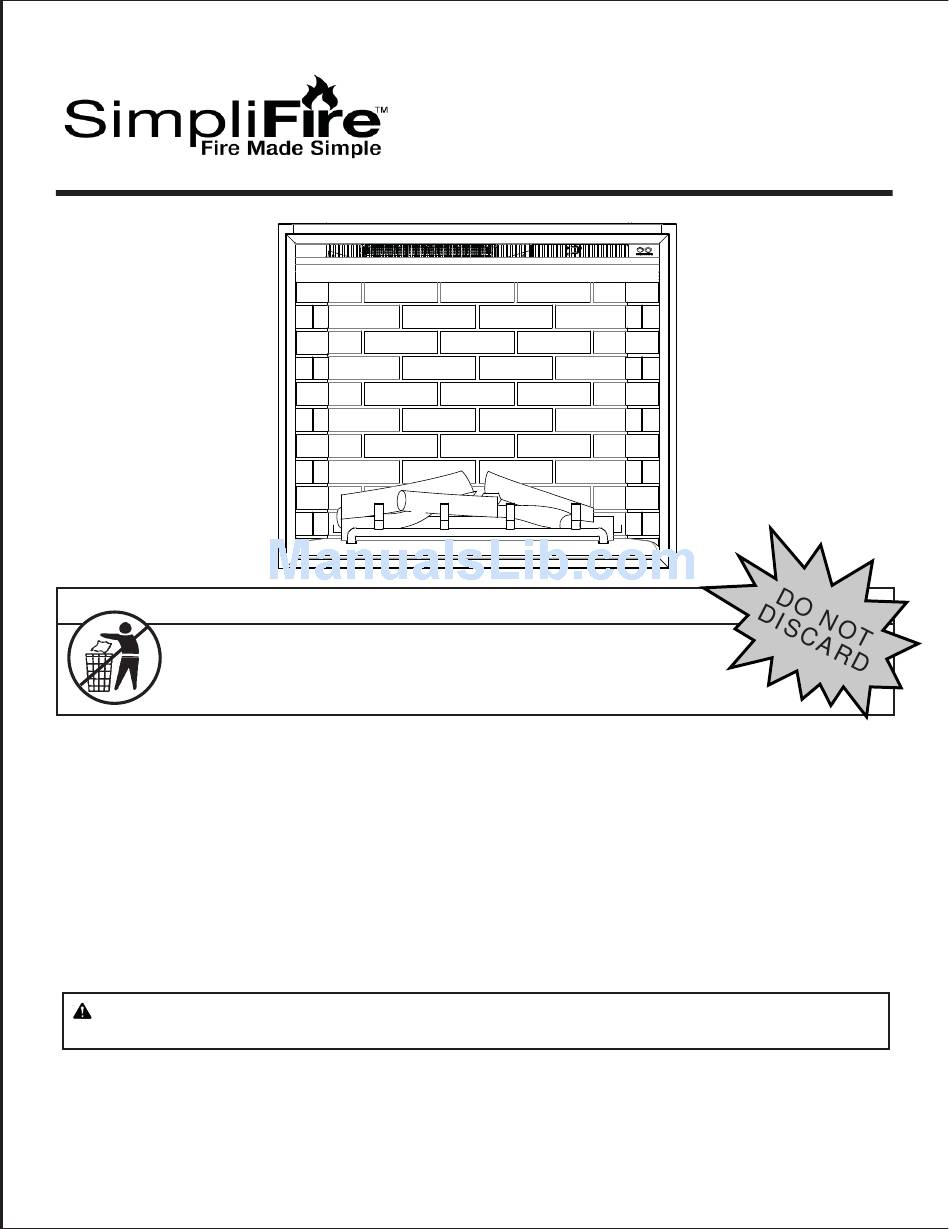

Congratulations!
Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood & gas burning fi replaces.
The SimpliFire electric fi replace you have selected is designed to provide the utmost in safety, reliability, and effi ciency.
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN
THIS PRODUCT.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
WARNING: To reduce risk of fi re, electrical shock, or personal injury, read all instructions
before using appliance.
INSTALLER: DO NOT DISCARD THIS MANUAL -
LEAVE FOR HOMEOWNER - SAVE THESE INSTRUCTIONS
NOTICE
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14
Owner's Manual
Installation and Operation
• Leave this manual with
party responsible for use
and operation.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SimpliFire SF-BI30-E
Summary of Contents for SimpliFire SF-BI30-E
- Page 1 Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood & gas burning fi replaces. The SimpliFire electric fi replace you have selected is designed to provide the utmost in safety, reliability, and effi ciency. READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THIS PRODUCT.
-
Page 2: Important Instructions
Return appliance to authorized service facility for examination, electrical or mechanical adjustment or repair. • Do not use outdoors. SAVE THESE INSTRUCTIONS SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 3: Table Of Contents
F. Contact Information ......16 SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 4: Warranty
Fire fireplace within one year following the date of original purchase, that the SimpliFire fireplace will be free from defects in materials and workmanship at the time of manufacture. If a SimpliFire fireplace is found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the SimpliFire fireplace. -
Page 5: General Information
Homeowner Reference Information information about your fi replace. Model Name: ___________________________________________ Date purchased/installed: __________________ Serial Number: __________________________________________ Location on fi replace: _____________________ Dealership purchased from: _______________________________ Dealer Phone: __________________________ Notes: _______________________________________________________________________________________ _____________________________________________________________________________________________ SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 6: Getting Started
C. Appliance Dimensions units: inches SHELL SIZE TRIM SIZE FLAME VIEW OTHER SIZE MODEL 31-1/8 SF-BI30-E 26-3/4 11-13/16 28-11/32 21-13/32 31-1/8 29-15/16 31-1/4 11-13/16 35-13/16 30-3/8 34-1/4 25-7/8 29-7/8 SF-BI36-E SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 7: Location
12 in. 2 in. 6 in. 2 in. 2 in. Measurements from top surface of the door front. Figure 3.1 Minimum Vertical and Maximum Horizontal Dimensions of Combustible Mantels. SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 8: Installation
Actual installation may vary due to individual design preference. 1/2 in. 1/2 in. MODEL 27-1/2 47-5/8 33-1/2 23-5/8 SF-BI30-E 37-3/8 35-1/2 37-3/4 26-1/2 SF-BI36-E Figure 4.1 Clearance Requirements SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 9: Appliance Preparation
(ST4 x 8) per bracket to secure to the appliance. See Figure 4.2 and 4.3. PRE-DRILLED HOLES Figure 4.2 Pre-drilled Hole Location BRACKET LOCATION BRACKET LOCATION Figure 4.3 Bracket Locations SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 10: Installation Into Existing Fireplace
See Figure 4.4. 36 1/4 in. 30 1/4 in. SF-BI30-E Finishing Dimension SF-BI36-E Finishing Dimension Figure 4.4 Finishing Dimensions SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 11: Operating Instructions
If the Flame effect is OFF, there is no Heater button function. See Figure 5.1. Flame Button By pressing the FLAME button, the unit will cycle through four fl ame effects. Flame Button Heater Button Figure 5.1 Manual Operating Switches SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 12: Operating By Remote Control
Fireplace will emit one audible Pressing the spotlight button will LIGHT No indicator. beep as it transitions between switch the spotlight on and off. spotlight on and off states. SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 13: Maintenance
AC120 60Hz Blue 16AWG Yellow/Green Blue 16AWG Wiring 16AWG 16AWG Blue Terminal White 17AWG Blue 16AWG Wiring Terminal Black 20AWG Blue 16AWG Blue 16AWG Yellow 17AWG Figure 6.1 Electrical Wiring Diagram SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 14: Service Parts List
REFRACTORY-BI30 Refractory Kit Flame Screen FLAME-BI30 Front FRONT-BI30 Glass GLA-BI30 Remote REMOTE-SF-ELEC Hardware Bag HRDW-BI Includes: Mounting Brackets, Screw (ST4 x 8), Screws (ST4 x 12) Installation Manual 2040-900 10/13 SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 15: Sf-Bi36-E
Refractory Kit REFRACTORY-BI36 FLAME-BI36 Flame Screen Front FRONT-BI36 Glass GLA-BI36 Remote REMOTE-SF-ELEC Hardware Bag HRDW-BI Includes: Mounting Brackets, Screw (ST4 x 8), Screws (ST4 x 12) 2040-900 Installation Manual 10/13 SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14... -
Page 16: Contact Information
Printed in China - Copyright 2013 SimpliFire • SF-BI30-E, SF-BI36-E • 2040-900 Rev. F • 2/14...
