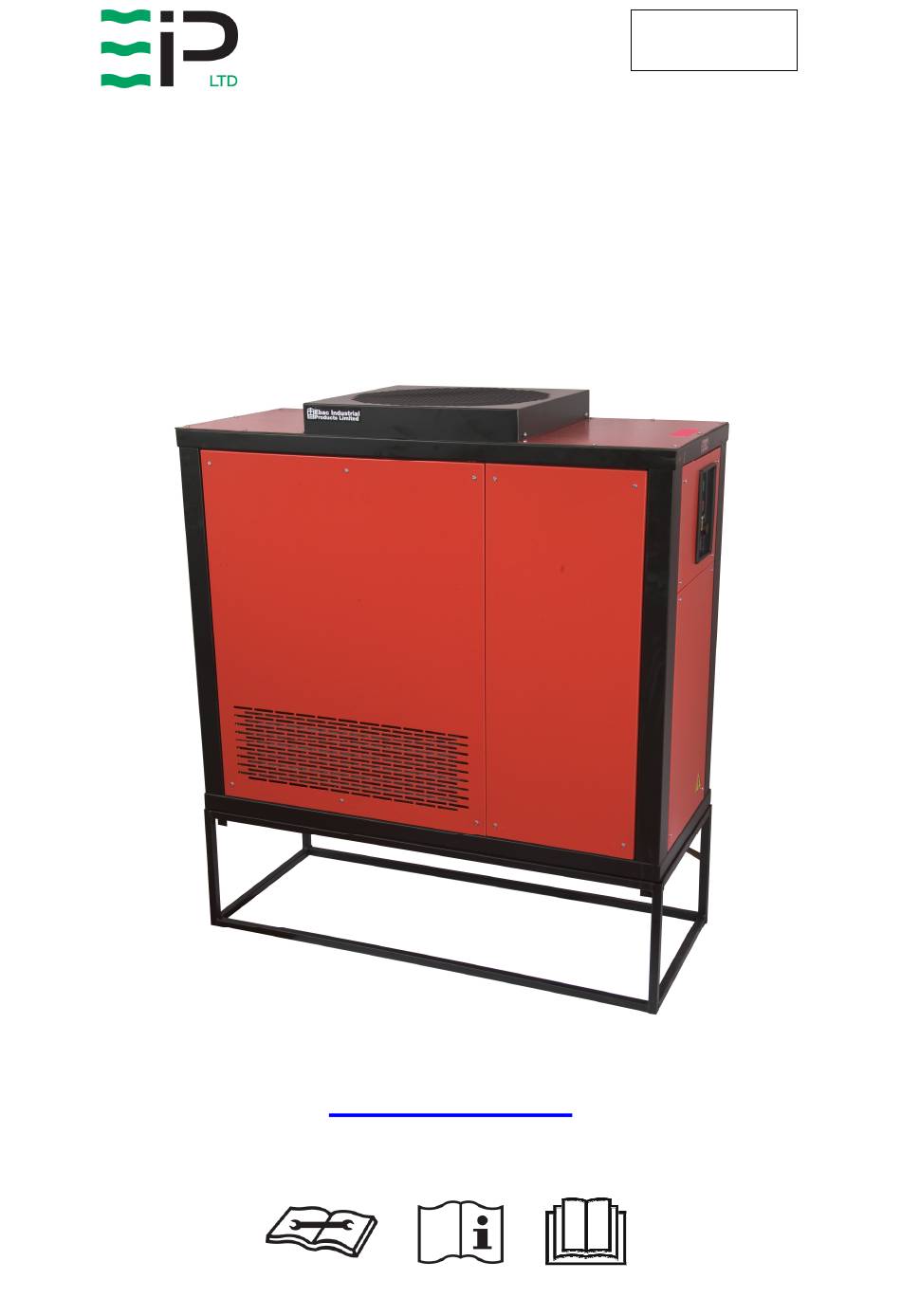

- Page 1 Drawing : - TPC546 Issue : - 1 Date : - 17/05/21 CD425 CD425 DEHUMIDIFIER CD425 CD425 DEHUMIDIFIER DEHUMIDIFIER DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
-
Page 2: Safety Information
Drawing : - TPC546 Issue : - 1 Date : - 17/05/21 SAFETY INFORMATION Children shall not play with the appliance. This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved. - Page 3 Before disposing all refrigerant should be evacuated and disposed of as required by local environmental laws. • If there is any damage to the appliance, DO NOT USE and contact EIPL. • The appliance must not be used in a potentially explosive atmosphere.
- Page 4 The CD425 is a self-contained low temperature dehumidifier. All electrical contactors, overloads, etc, are housed in an electrical box built inside the unit. The unit is equipped with a defrost valve which energises to clear any ice formation on the evaporator coils.
-
Page 5: Installation
: - 17/05/21 INSTALLATION POSITIONING: The CD425 is designed for indoor use only. Position the dehumidifier unit in the centre of the room to be conditioned if at all possible. Using a spirit level ensure the unit is level in both directions. -
Page 6: Operation
Connect the outlet from the drain tray (located behind the front grille and under the evaporator coils) to a permanent drain. Please ensure that the drainage does not rise above the level of the CD425’s drain tray. Failure to observe this requirement will result in internal flooding of the dehumidifier unit. - Page 7 If after carrying out the above checks the unit does not appear to function correctly, refer to your supplier. If, after carrying out the above procedures, the appliance does not appear to function properly, refer to the Trouble Shooting section, which follows, or contact EIPL. Page 7 of 12...
-
Page 8: Routine Service
Drawing : - TPC546 Issue : - 1 Date : - 17/05/21 ROUTINE SERVICE WARNING: ENSURE THE POWER CORD TO THE APPLIANCE IS DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. SERVICING AND REPAIR SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. To ensure continued full efficiency of the appliance, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the... -
Page 9: Troubleshooting
1. Insufficient air flow 1. Check all of the above Little or no water 2. Compressor fault 2. Contact EIPL extraction 3. Loss of refrigerant gas 3. Contact EIPL Little or no defrost 1. Faulty Timer 1. -
Page 10: Specifications
Drawing : - TPC546 Issue : - 1 Date : - 17/05/21 SPECIFICATIONS : 10145MR-GB ODEL : 1190 mm (46.9 in) EIGHT : 1100 mm (43.3 in) IDTH : 460 mm (18.1 in) EPTH : 160 Kg (353 lb) EIGHT : 3000 M /Hr (1766 CFM) IRFLOW... - Page 11 Drawing : - TPC546 Issue : - 1 Date : - 17/05/21 APPLIANCE SPARE PARTS LIST Description Part Number Product Part Number 10145MR-GB PCB Controller 1619522 Capillary 3014252 Drain Outlet Tube 3014315 Condenser Coil 3020725 Evaporator Coil 3020733 Reversing Valve 3020835 Filter Dryer 3020930...
- Page 12 Bishop Auckland Suite 109, Newport News County Durham Virginia, 23606-2575 DL14 9AD Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 www.eipl.co.uk www.ebacusa.com sales@eipl.co.uk sales@ebacusa.com Page 12 of 12...
