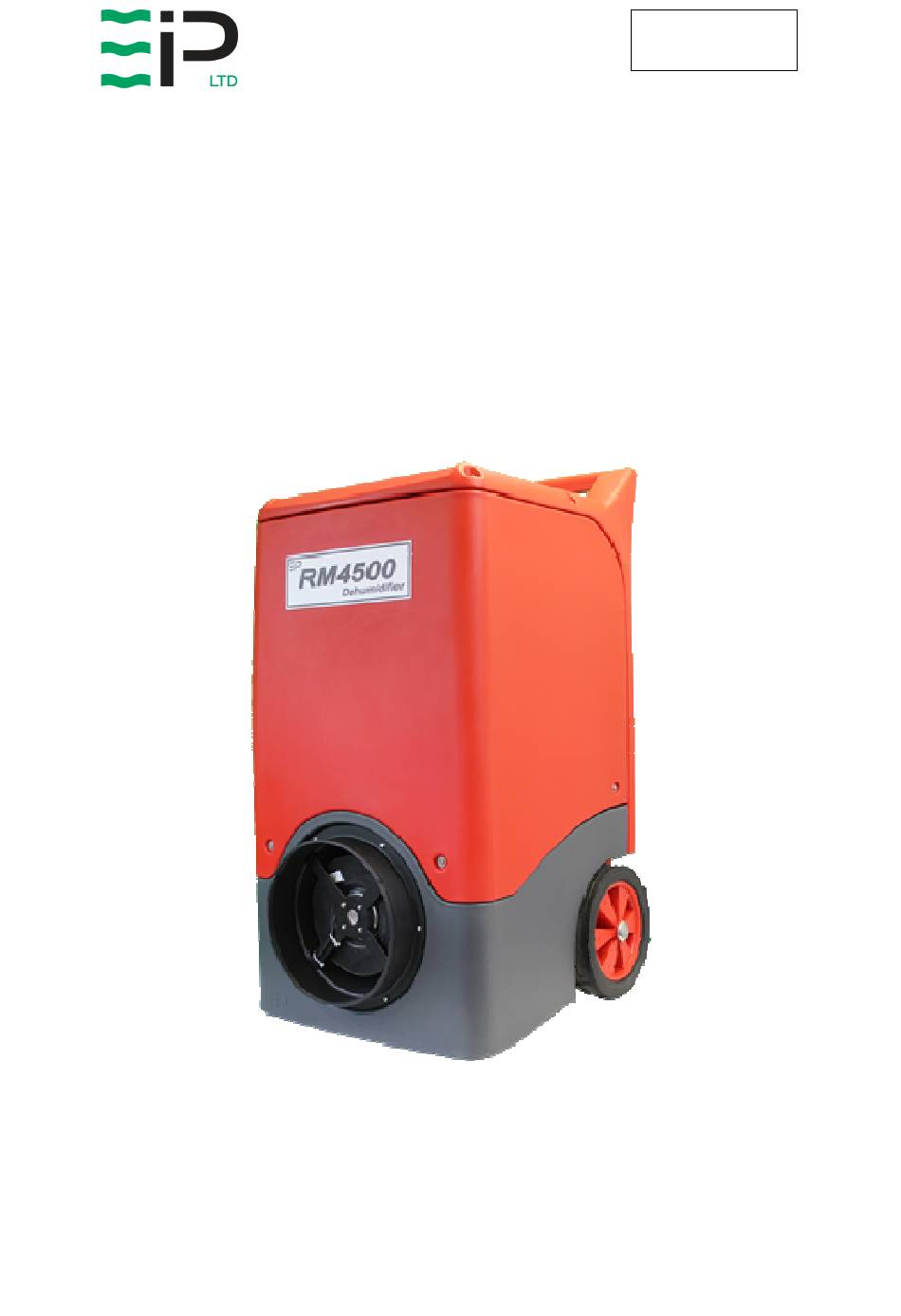

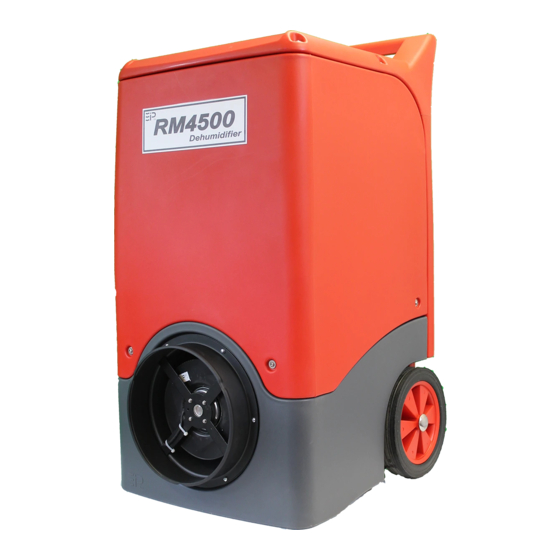

  • Page 1 Drawing : - TPC427 Issue : - 2 Date : - 26/08/15 RM4500 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
  • Page 2: Package Contents

    Drawing : - TPC427 Issue : - 2 Date : - 26/08/15 RM4500 PACKAGE CONTENTS Item Description Quantity 10570RG-US Dehumidifier 3086144 Quick release hose coupling 3944110 PVC Tube – 3/8” I/D 7.8M TPC427 Manual Page 2 of 12...
  • Page 3 Date : - 26/08/15 INTRODUCTION Designed for a wide range of applications, the RM4500 is a rugged, industrial unit, which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The RM4500 has a number of special features: •...
  • Page 4: Specifications

    Drawing : - TPC427 Issue : - 2 Date : - 26/08/15 SPECIFICATIONS : 10570RG-US ODEL : 44” (1115mm) EIGHT : 25” (625mm) IDTH : 28” (710mm) EPTH : 170 lbs (77 Kg) EIGHT : 350 CFM (600 M3/hr) IRFLOW : 110V/ 60Hz/ 1 ph OWER UPPLY...
  • Page 5: Operation

    ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT LEAST FIVE MINUTES BEFORE RESTARTING. After using the RM4500, turn it off for five minutes to allow the condensate on the coils to drain into the pump reservoir, then press the momentary pump purge switch for twenty to thirty seconds to evacuate the water from the pump reservoir.
  • Page 6: Routine Maintenance

    Drawing : - TPC427 Issue : - 2 Date : - 26/08/15 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE ON ITEMS 1, 2, 3, 4 & 5 To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: 1.
  • Page 7 Drawing : - TPC427 Issue : - 2 Date : - 26/08/15 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
  • Page 8: Troubleshooting

    Drawing : - TPC427 Issue : - 2 Date : - 26/08/15 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 1. Fan motor burnt out 2.
  • Page 9 Drawing : - TPC427 Issue : - 2 Date : - 26/08/15 RM4500 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Timer 1619508 Condenser coil 2057025 Evaporator coil 2057024 Filter 2057031 Capillary 3014249 2 X 30” Solenoid valve 3020833 Filter dryer...
